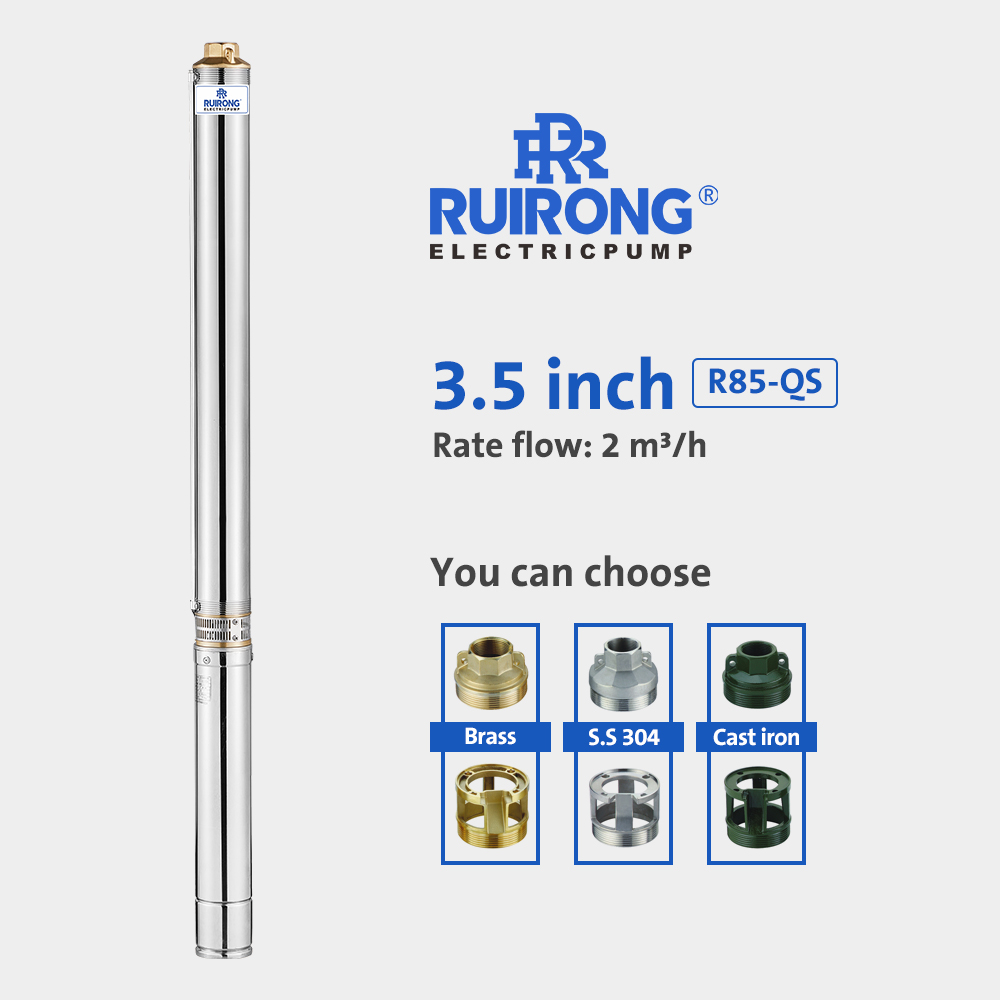

R85-QS
RUIRONG
1. POM impeller is used, which is wear-resistant and has a long service life.
2. The multi-stage floating impeller design effectively reduces the starting torque requirements, is not easy to get stuck due to trace fine sand (strong sand passing ability), and increases the service life of the motor.
Model 50Hz | Motor Power | Three Phase | Single Phase | Q | Capacity | ||||||||||
| US.gpm | 0 | 2.6 | 4 | 5.3 | 6.6 | 7.9 | 9.2 | 11.9 | |||||||
| m3/h | 0 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.7 | |||||||
| 380V | 220V | L/min | 0 | 10 | 15 | 20 | 25 | 30 | 35 | 45 | |||||
| HP | kW | A | A | μF | VC | Total head in meters | |||||||||
| R85-QS-07 | 0.5 | 0.37 | - | 3.4 | 15 | 450 | H (m) | 44 | 42 | 40 | 38 | 35 | 30 | 23 | 8 |
| R85-QS-10 | 0.75 | 0.55 | 1.8 | 4.6 | 20 | 450 | 62 | 59 | 58 | 55 | 50 | 43 | 33 | 11 | |
| R85-QS-14 | 1 | 0.75 | 2.4 | 6 | 30 | 450 | 87 | 83 | 81 | 77 | 69 | 60 | 47 | 15 | |
| R85-QS-20 | 1.5 | 1.1 | 3.4 | 8.3 | 40 | 450 | 128 | 119 | 116 | 109 | 99 | 85 | 67 | 22 | |
| R85-QS-28 | 2 | 1.5 | 4.4 | 10.6 | 50 | 450 | 175 | 166 | 162 | 153 | 139 | 119 | 93 | 31 | |
| R85-QS-40 | 3 | 2.2 | 6.2 | 14.5 | 60 | 450 | 250 | 240 | 231 | 219 | 198 | 170 | 133 | 44 | |
 | (Unit of Length: mm) | ||||||
| Model | H3 | H2 | H1 | ΦA | ΦB | Φmax | |
| R85-QS-07 | 750 | 341 | 409 | G1 1/4" | 85 | 89 | |
| R85-QS-10 | 843 | 361 | 482 | ||||
| R85-QS-14 | 965 | 386 | 579 | ||||
| R85-QS-20 | 1185 | 416 | 769 | ||||
| R85-QS-28 | 1408 | 446 | 962 | ||||
| R85-QS-40 | 1754 | 501 | 1253 | ||||
| Parts | Material | ||||||
| Delivery door | Brass | ||||||
| Suction support | Brass | ||||||
| Check value | Plastic(POM) | ||||||
| Valve support | Plastic(PPO/PC) | ||||||
| Shaft support | Plastic(PPO/PC) | ||||||
| Impeller | Plastic(PPO) | ||||||
| Diffuser | Plastic(POM) | ||||||
| Valve seal | Nitrile rubber(NBR) | ||||||
| Anti-wear washer | Nitrile rubber(NBR) | ||||||
| Pump bearing | Nitrile rubber(NBR) | ||||||
| Pump body | AISI 304 | ||||||
| Cable cover | AISI 304 | ||||||
| Filter | AISI 304 | ||||||
| Shaft | 2Cr13 | ||||||
| Shaft coupling | AISI 304 | ||||||
| Bushing | AISI 304 | ||||||
