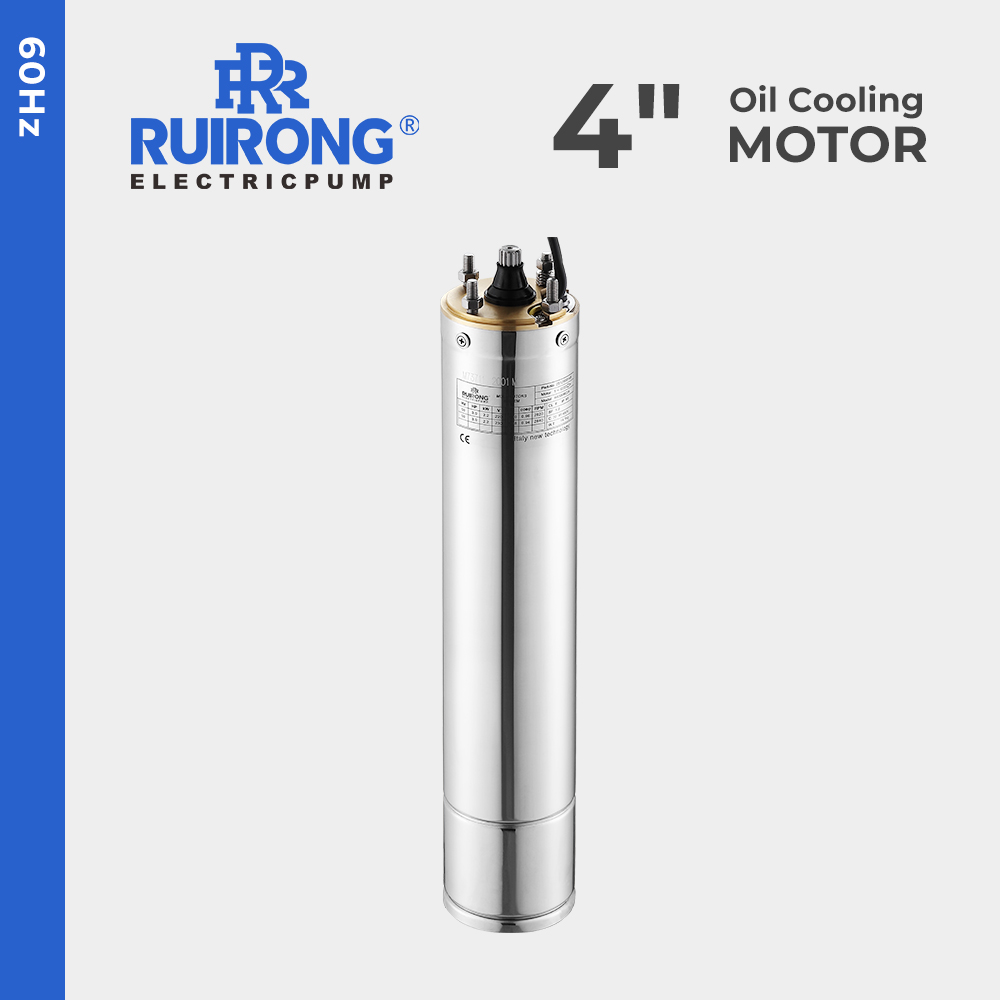

M95
RUIRONG
1. High-Quality and Accurate Mechanical Seals
2. Durable Stainless Steel 304 Motor Housing and Bottom Cover
3. Energy-Efficient Cold-Rolled Silicon Steel Sheets for Laminations—Offers Low Loss and Excellent Magnetic Conductivity
4. Silent, High-Precision Bearings Ensure Long Service Life and Stable Pump Operation
5. H-Class (200 Degrees) High-Temperature Resistant Pure Copper Wire Stator—Features Low Temperature Rise, Ensures Safety and Reliability, Ideal for Continuous Long-Term Use, Eco-Friendly and Energy-Saving
6. Versatile 4-Inch Single-Phase Motor Supports Wide Voltage Range from 160V to 220V
7. Convenient Plug-Type Cable Design for Easy Cable Replacement
| Single-phase 220/230V 50Hz | ||||||
| Model | kW | HP | Current(A) | CosΦ | rpm | L(mm) |
| M95S-0.37 | 0.37 | 0.5 | 3.4 | 0.86 | 3450 | 311 |
| M95S-0.55 | 0.55 | 0.75 | 4.2 | 0.9 | 3450 | 311 |
| M95S-0.75 | 0.75 | 1 | 5.4 | 0.93 | 3450 | 331 |
| M95S-1.1 | 1.1 | 1.5 | 7.2 | 0.94 | 3450 | 356 |
| M95S-1.5 | 1.5 | 2 | 9.6 | 0.95 | 3450 | 386 |
| M95S-2.2 | 2.2 | 3 | 13.6 | 0.96 | 3450 | 416 |
| M95S-3.7 | 3.7 | 5 | 20.5 | 0.96 | 3450 | 461 |
| Three-phase 380/415V 50Hz | ||||||
| Model | kW | HP | Current(A) | CosΦ | rpm | L(mm) |
| M95-0.37 | 0.37 | 0.5 | 1.2 | 0.78 | 3450 | 368 |
| M95-0.55 | 0.55 | 0.75 | 1.7 | 0.78 | 3450 | 368 |
| M95-0.75 | 0.75 | 1 | 2.1 | 0.78 | 3450 | 388 |
| M95-1.1 | 1.1 | 1.5 | 2.8 | 0.8 | 3450 | 408 |
| M95-1.5 | 1.5 | 2 | 3.7 | 0.83 | 3450 | 443 |
| M95-2.2 | 2.2 | 3 | 5.4 | 0.83 | 3450 | 503 |
| M95-3.0 | 3 | 4 | 6.7 | 0.83 | 3450 | 563 |
| M95-4.0 | 4 | 5.5 | 8.6 | 0.85 | 3450 | 603 |
| M95-5.5 | 5.5 | 7.5 | 11.9 | 0.85 | 3450 | 703 |
| M95-7.5 | 7.5 | 10 | 15.8 | 0.86 | 3450 | 823 |
When using a variable frequency drive, the normal operating output voltage frequency range is maintained between 35Hz and the rated frequency, and the starting frequency is not less than 35Hz (for a motor with a rated frequency of 50Hz), or 40Hz (for a motor with a rated frequency of 60Hz), and the time from the starting voltage frequency to the rated voltage frequency does not exceed 10 seconds.
