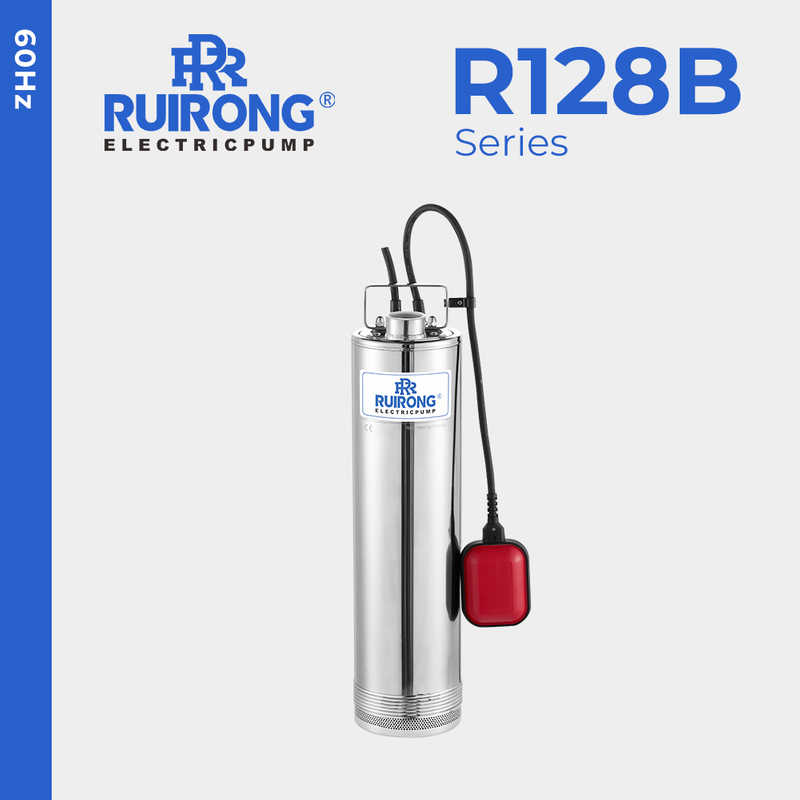

R128B
RUIRONG
1. Featuring an Italian double mechanical seal, this pump boasts enhanced sealing capabilities and an extended service life.
2. The single-phase motor includes a built-in overheating protection device for added safety and reliability.
3. Engineered with sound absorption design technology, this pump offers ultra-quiet operation for optimal performance.
4. Constructed with a stainless steel 304 impeller and a plastic diffuser, the pump delivers high head, exceptional efficiency, and outstanding durability.
5. Equipped with a float mechanism, the pump effectively prevents dry running, ensuring smooth and safe operation.
1. Efficiently Pumping Clean Water from Wells, Reservoirs, and Water Tanks
2. Water Solutions for Small-Scale Irrigation and Gardening
3. Clean Your Vehicle
Model 60Hz | Motor Power | Single Phase | Q | Capacity | Outlet | ||||||||||
| m³/h | 0 | 1.2 | 1.8 | 2.4 | 2.4 | 3 | 3.6 | 4.2 | |||||||
| L/min | 0 | 20 | 30 | 40 | 40 | 50 | 60 | 70 | |||||||
| HP | kW | A | μF | VC | H(m) | Total head in meters | |||||||||
| R128B-2 | 0.8 | 0.6 | 4.5 | 20 | 450 | 33 | 29 | 27 | 25 | 23 | 21 | 18.5 | 18.5 | 32mm G1 1/4" | |
| R128B-3 | 1.2 | 0.9 | 7.2 | 25 | 450 | 52 | 47 | 44 | 41 | 38 | 35 | 30 | 26 | ||
| R128B-4 | 1.5 | 1.2 | 8.6 | 30 | 450 | 72 | 67 | 64 | 60 | 55 | 50 | 44 | 39 | ||
| R128B-5 | 2 | 1.5 | 11 | 450 | 95 | 90 | 87 | 83 | 77 | 71.5 | 64.5 | 57 | |||
1. Featuring an Italian double mechanical seal, this pump boasts enhanced sealing capabilities and an extended service life.
2. The single-phase motor includes a built-in overheating protection device for added safety and reliability.
3. Engineered with sound absorption design technology, this pump offers ultra-quiet operation for optimal performance.
4. Constructed with a stainless steel 304 impeller and a plastic diffuser, the pump delivers high head, exceptional efficiency, and outstanding durability.
5. Equipped with a float mechanism, the pump effectively prevents dry running, ensuring smooth and safe operation.
1. Efficiently Pumping Clean Water from Wells, Reservoirs, and Water Tanks
2. Water Solutions for Small-Scale Irrigation and Gardening
3. Clean Your Vehicle
Model 60Hz | Motor Power | Single Phase | Q | Capacity | Outlet | ||||||||||
| m³/h | 0 | 1.2 | 1.8 | 2.4 | 2.4 | 3 | 3.6 | 4.2 | |||||||
| L/min | 0 | 20 | 30 | 40 | 40 | 50 | 60 | 70 | |||||||
| HP | kW | A | μF | VC | H(m) | Total head in meters | |||||||||
| R128B-2 | 0.8 | 0.6 | 4.5 | 20 | 450 | 33 | 29 | 27 | 25 | 23 | 21 | 18.5 | 18.5 | 32mm G1 1/4" | |
| R128B-3 | 1.2 | 0.9 | 7.2 | 25 | 450 | 52 | 47 | 44 | 41 | 38 | 35 | 30 | 26 | ||
| R128B-4 | 1.5 | 1.2 | 8.6 | 30 | 450 | 72 | 67 | 64 | 60 | 55 | 50 | 44 | 39 | ||
| R128B-5 | 2 | 1.5 | 11 | 450 | 95 | 90 | 87 | 83 | 77 | 71.5 | 64.5 | 57 | |||
