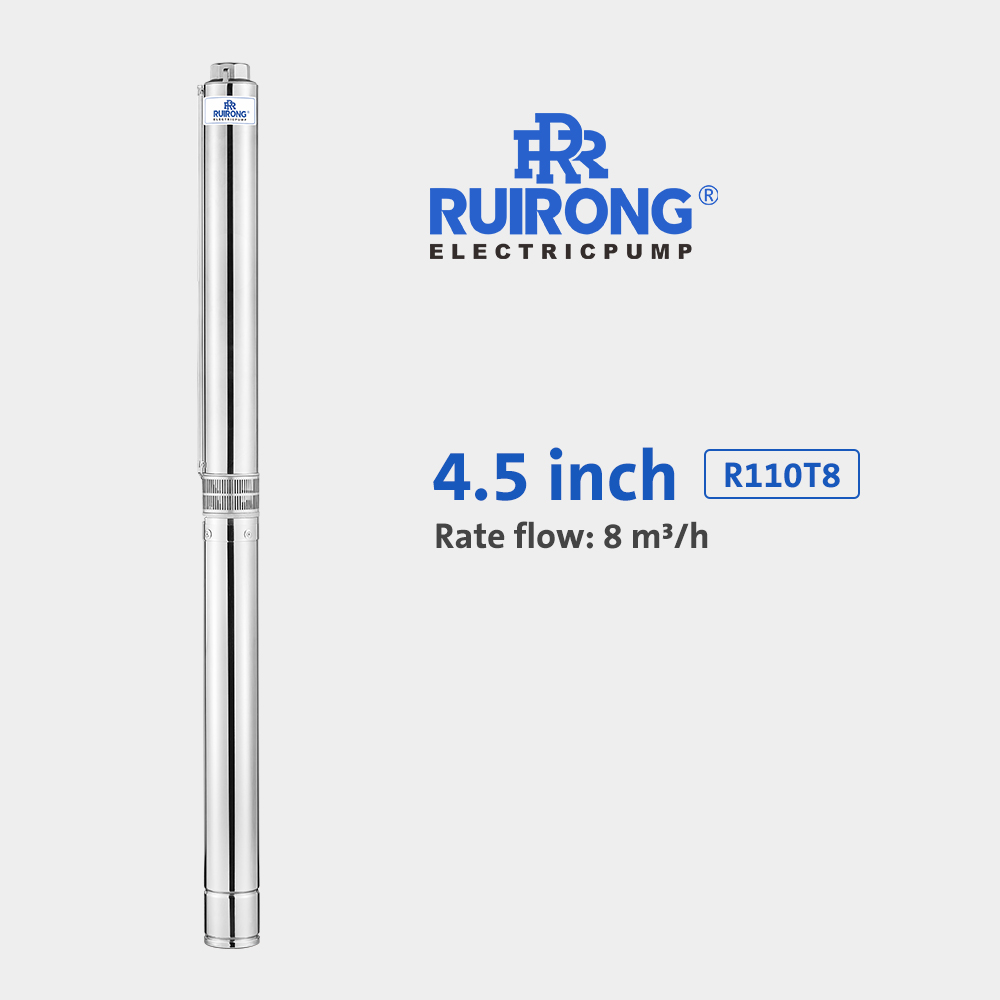

R110
RUIRONG
1. High-Performance 316L Full Stainless Steel Oil-Cooled Motor
2. Durable 316L Stainless Steel Delivery Door, Suction Support, and Casing
3. Corrosion-Resistant S31803 Pump Shaft with Enhanced Strength
4. Excellent Corrosion Resistance Ideal for Acidic, Alkaline, and Other Corrosive Waters
5. Innovative Floating Impeller Design Prevents Sand from Clogging the Pump Shaft
6. Impellers Made from Robust PPO Composite Materials for Superior Strength
Model 50Hz | Motor Power | Three Phase | Q | Capacity | ||||||||
| US.gpm | 0 | 9 | 18 | 26 | 35 | 44 | 53 | 57 | ||||
| m3/h | 0 | 2 | 4 | 6 | 8 | 10 | 12 | 13 | ||||
| L/min | 0 | 33 | 67 | 100 | 133 | 167 | 200 | 217 | ||||
| HP | kW | A | Total head in meters | |||||||||
| R110T8-22 | 7.5 | 5.5 | 13.5 | H (m) | 194 | 190 | 178 | 158 | 129 | 92 | 48 | 23 |
| R110T8-30 | 10 | 7.5 | 18.5 | 264 | 259 | 243 | 215 | 176 | 126 | 65 | 31 | |
| R110T8-37 | 12.5 | 9.2 | 23 | 326 | 320 | 299 | 265 | 217 | 156 | 81 | 38 | |
| R110T8-45 | 15 | 11 | 26.5 | 397 | 389 | 364 | 322 | 264 | 189 | 98 | 47 | |
