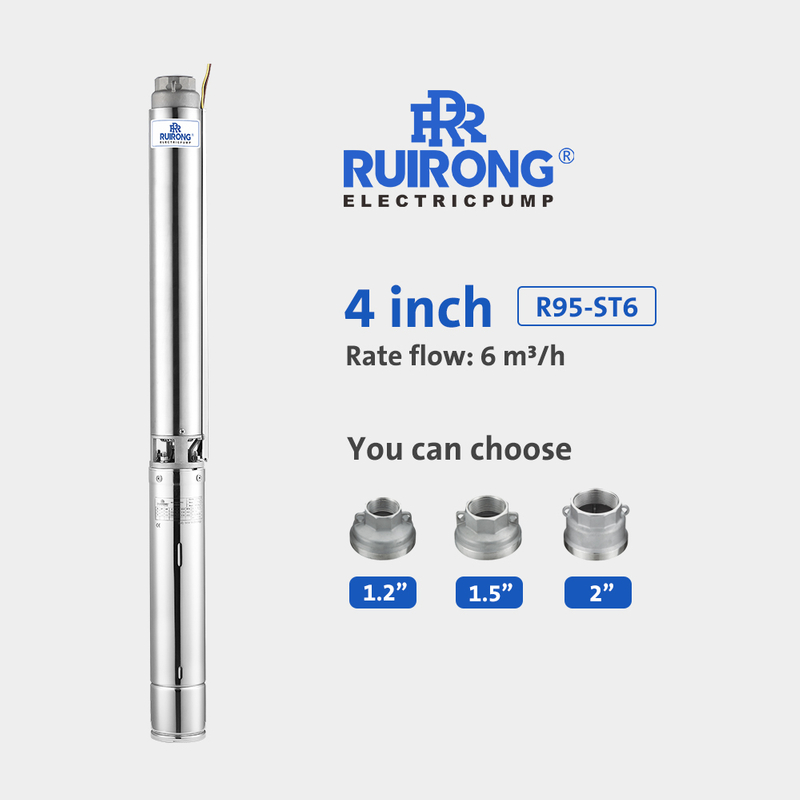

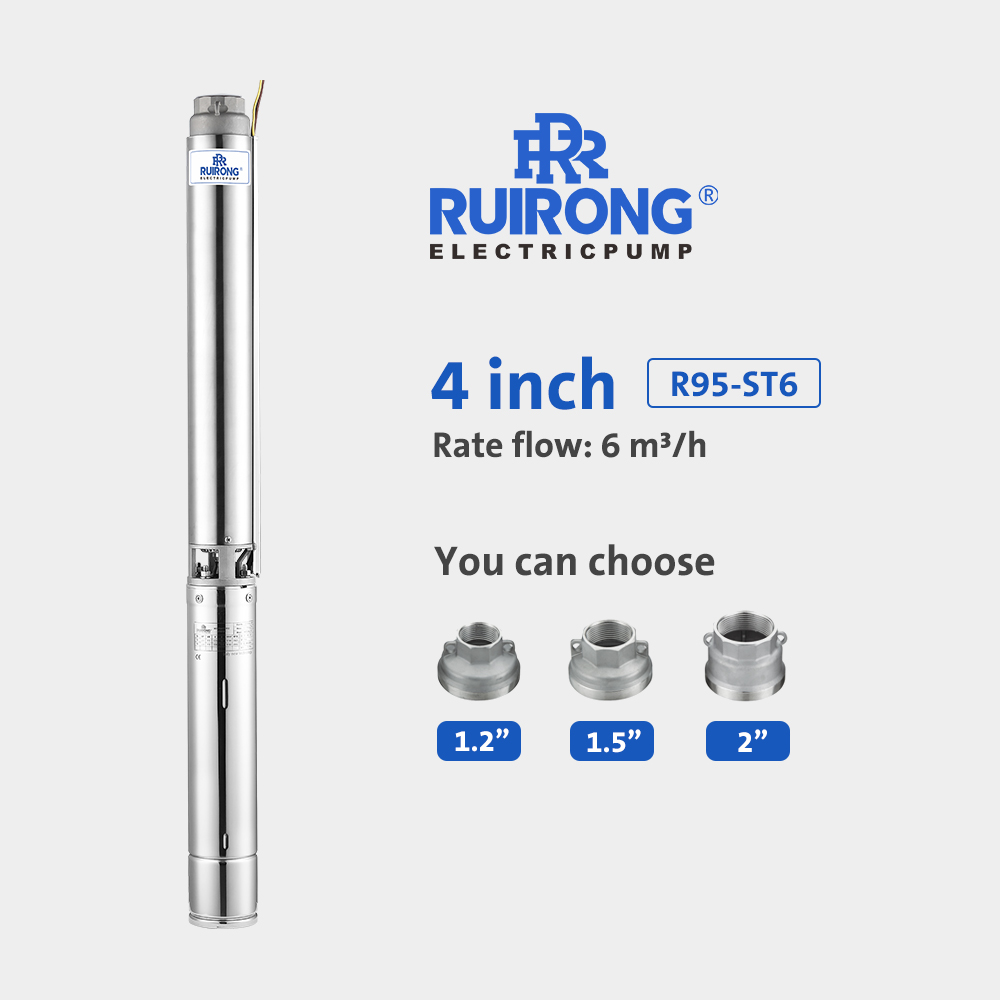

R95-ST6
RUIRONG
1. Utilize a robust stainless steel 304 pump tube with a thickness of 1.5mm, complemented by a stainless steel 304 diffuser and a durable stainless steel 304/316 pump head. This combination ensures high strength, aesthetic appeal, and long-lasting durability.
2. The innovative design of the multi-stage floating impeller significantly lowers the starting torque requirements and prevents blockages caused by small sand particles. This sand-resistant capability extends the motor's service life, offering enhanced performance and reliability.
Model 50Hz | Motor Power | Three Phase | Single Phase | Q | Capacity | ||||||||||
| US.gpm | 0 | 9.2 | 11.9 | 13.2 | 15.8 | 18.5 | 23.8 | 26.4 | |||||||
| m3/h | 0 | 2.1 | 2.7 | 3 | 3.6 | 4.2 | 5.4 | 6 | |||||||
| 380V | 220V | L/min | 0 | 35 | 45 | 50 | 60 | 70 | 90 | 100 | |||||
| HP | kW | A | A | μF | VC | Total head in meters | |||||||||
| R95-ST6-04 | 0.5 | 0.37 | 1.8 | 3.6 | 20 | 450 | H (m) | 26 | 23 | 22 | 21 | 19 | 17 | 11 | 7 |
| R95-ST6-06 | 0.75 | 0.55 | 2 | 4.8 | 25 | 450 | 38 | 36 | 33 | 32 | 30 | 26 | 18 | 12 | |
| R95-ST6-08 | 1 | 0.75 | 2.5 | 6.3 | 35 | 450 | 51 | 47 | 44 | 43 | 39 | 35 | 24 | 18 | |
| R95-ST6-12 | 1.5 | 1.1 | 3.4 | 8.6 | 45 | 450 | 72 | 72 | 69 | 68 | 63 | 57 | 41 | 31 | |
| R95-ST6-16 | 2 | 1.5 | 4.4 | 10 | 55 | 450 | 102 | 98 | 94 | 92 | 86 | 77 | 57 | 46 | |
| R95-ST6-24 | 3 | 2.2 | 6.2 | 14 | 70 | 450 | 151 | 142 | 136 | 132 | 122 | 111 | 80 | 62 | |
| R95-ST6-32 | 4 | 3 | 8.3 | 19.5 | 80 | 450 | 203 | 188 | 180 | 175 | 162 | 146 | 105 | 80 | |
| R95-ST6-40 | 5.5 | 4 | 10.3 | 27 | 120 | 450 | 253 | 232 | 222 | 216 | 202 | 182 | 131 | 102 | |
| R95-ST6-44 | 5.5 | 4 | 10.3 | 27 | 120 | 450 | 278 | 265 | 254 | 247 | 230 | 210 | 159 | 127 | |
 | (Unit of Length: mm) | ||||||
| Model | H3 | H2 | H1 | ΦA | ΦB | Φmax | |
| R95-ST6-04 | 614 | 351 | 263 | G1 1/2" | 95 | 100 | |
| R95-ST6-06 | 678 | 366 | 312 | ||||
| R95-ST6-08 | 746 | 386 | 360 | ||||
| R95-ST6-12 | 864 | 406 | 458 | ||||
| R95-ST6-16 | 997 | 441 | 556 | ||||
| R95-ST6-24 | 1252 | 501 | 751 | ||||
| R95-ST6-32 | 1546 | 561 | 985 | ||||
| R95-ST6-40 | 1781 | 601 | 1180 | ||||
| R95-ST6-44 | 1879 | 601 | 1278 | ||||
| Parts | Material | ||||||
| Delivery door | AISI304 | ||||||
| Suction support | AISI304 | ||||||
| Check value | AISI304 | ||||||
| Valve support | Plastic(PPO/PC) | ||||||
| Shaft support | Plastic(PPO/PC) | ||||||
| Impeller | Plastic(PPO) | ||||||
| Diffuser | AISI304 | ||||||
| Valve seal | Nitrile rubber(NBR) | ||||||
| Anti-wear washer | Nitrile rubber(NBR) | ||||||
| Pump bearing | Nitrile rubber(NBR) | ||||||
| Pump body | AISI 304 | ||||||
| Cable cover | AISI 304 | ||||||
| Filter | AISI 304 | ||||||
| Shaft | 2Cr13 | ||||||
| Shaft coupling | AISI 304 | ||||||
| Bushing | AISI 304 | ||||||
