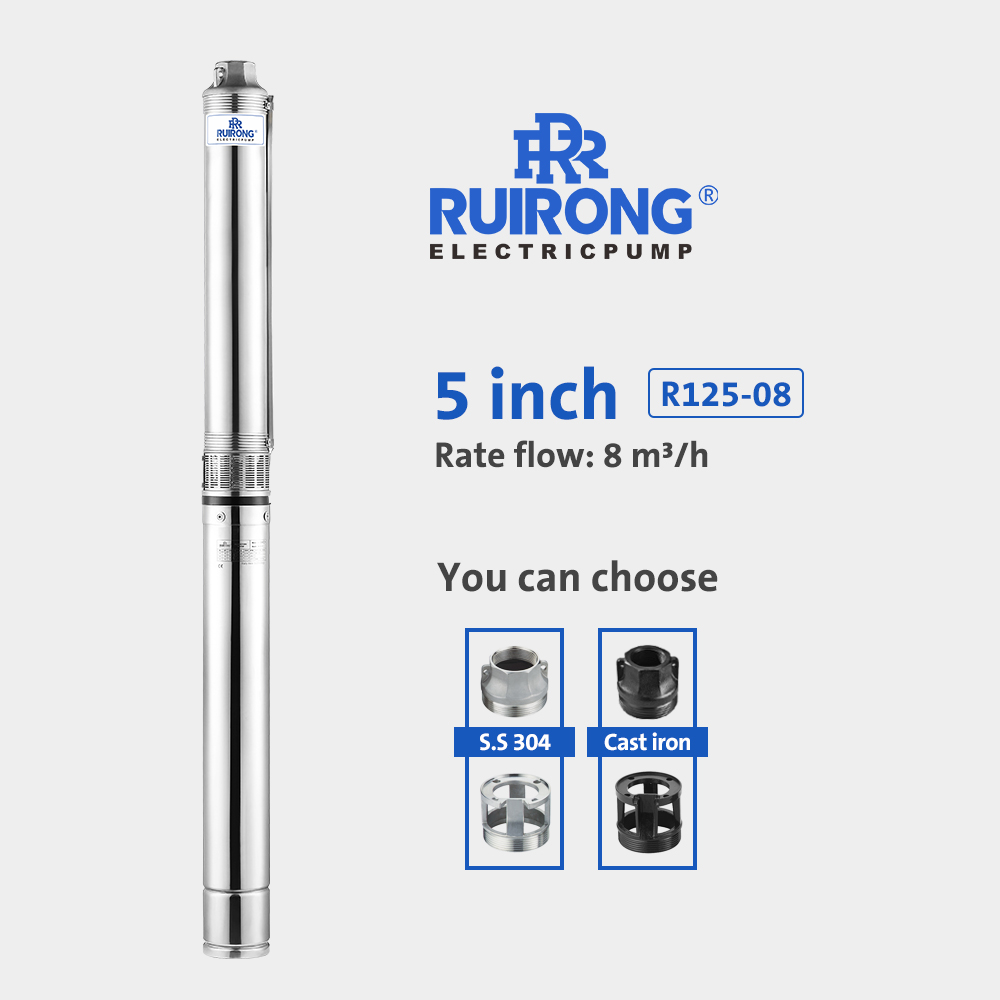

R125-08
RUIRONG
1. Enhance your pump's performance with a stainless steel 304 pump pipe, featuring a POM impeller and PPO diffuser for both beauty and corrosion resistance.
2. Designed for convenience, this pump boasts a maximum diameter of 125mm—smaller than the standard 6-inch well pump—making it perfect for easy installation in narrower wells.
3. Choose from a variety of durable pump head materials, including copper alloy, stainless steel 304/316, and cast iron with anti-rust treatment, to ensure longevity and reliability.
Model 50Hz | Motor Power | Three Phase | Q | Capacity | ||||||||
| US.gpm | 0 | 2.6 | 5.3 | 7.9 | 9.2 | 10.6 | 11.9 | 13.2 | ||||
| m3/h | 0 | 0.6 | 1.2 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | ||||
| 380V | L/min | 0 | 10 | 20 | 30 | 35 | 40 | 45 | 50 | |||
| HP | kW | A | Total head in meters | |||||||||
| R125-08-03 | 1.5 | 1.1 | 3.4 | H (m) | 37 | 36 | 33 | 30 | 26 | 20 | 14 | 11 |
| R125-08-04 | 2 | 1.5 | 4.4 | 50 | 47 | 43 | 39 | 34 | 26 | 19 | 15 | |
| R125-08-07 | 3 | 2.2 | 5.5 | 87 | 83 | 76 | 69 | 60 | 46 | 33 | 26 | |
| R125-08-09 | 4 | 3 | 7.5 | 111 | 107 | 99 | 91 | 79 | 63 | 44 | 33 | |
| R125-08-12 | 5.5 | 4 | 9.5 | 149 | 141 | 132 | 120 | 105 | 84 | 58 | 43 | |
| R125-08-16 | 7.5 | 5.5 | 12.8 | 200 | 191 | 177 | 161 | 141 | 110 | 79 | 58 | |
| R125-08-22 | 10 | 7.5 | 17.2 | 271 | 259 | 237 | 212 | 183 | 145 | 100 | 75 | |
| R125-08-27 | 12.5 | 9.2 | 20.7 | 332 | 317 | 296 | 266 | 233 | 182 | 123 | 95 | |
| R125-08-33 | 15 | 11 | 24.6 | 393 | 376 | 347 | 308 | 263 | 210 | 142 | 107 | |
| R125-08-40 | 17.5 | 13 | 29 | 476 | 456 | 421 | 373 | 319 | 255 | 172 | 130 | |
| R125-08-44 | 20 | 15 | 34.2 | 524 | 501 | 463 | 411 | 351 | 280 | 189 | 143 | |
 | (Unit of Length: mm) | ||||||
| Model | H3 | H2 | H1 | ΦA | ΦB | Φmax | |
| R125-08-03 | 854 | 406 | 448 | G2" | 95 | 125 | |
| R125-08-04 | 925 | 441 | 484 | ||||
| R125-08-07 | 1034 | 477 | 557 | 114 | |||
| R125-08-09 | 1137 | 507 | 630 | ||||
| R125-08-12 | 1286 | 547 | 739 | ||||
| R125-08-16 | 1480 | 597 | 883 | ||||
| R125-08-22 | 1759 | 657 | 1102 | ||||
| R125-08-27 | 2057 | 727 | 1330 | ||||
| R125-08-33 | 2326 | 777 | 1549 | ||||
| R125-08-40 | 2632 | 827 | 1805 | ||||
| R125-08-44 | 2824 | 873 | 1951 | ||||
| Parts | Material | ||||||
| Delivery door | Cast iron | ||||||
| Suction support | Cast iron | ||||||
| Check value | Plastic(POM) | ||||||
| Valve support | Plastic(PPO/PC) | ||||||
| Shaft support | Plastic(PPO/PC) | ||||||
| Impeller | Plastic(PPO) | ||||||
| Diffuser | Plastic(POM) | ||||||
| Valve seal | Nitrile rubber(NBR) | ||||||
| Anti-wear washer | Nitrile rubber(NBR) | ||||||
| Pump bearing | Nitrile rubber(NBR) | ||||||
| Pump body | AISI 304 | ||||||
| Cable cover | AISI 304 | ||||||
| Filter | AISI 304 | ||||||
| Shaft | 2Cr13 | ||||||
| Shaft coupling | AISI 304 | ||||||
| Bushing | AISI 304 | ||||||
