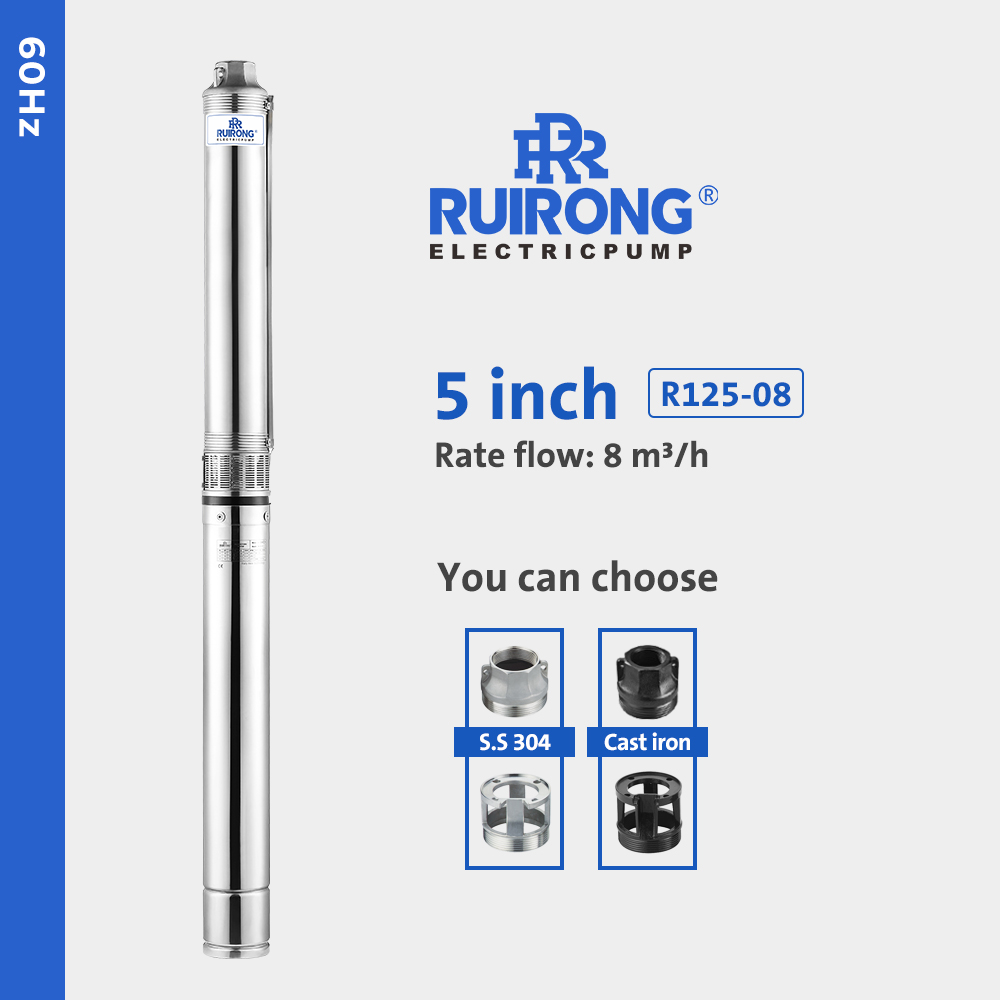

R125-08
RUIRONG
1. Enhance your pump's performance with a stainless steel 304 pump pipe, featuring a POM impeller and PPO diffuser for both beauty and corrosion resistance.
2. Designed for convenience, this pump boasts a maximum diameter of 125mm—smaller than the standard 6-inch well pump—making it perfect for easy installation in narrower wells.
3. Choose from a variety of durable pump head materials, including copper alloy, stainless steel 304/316, and cast iron with anti-rust treatment, to ensure longevity and reliability.
Model 60Hz | Motor Power | Three Phase | Q | Capacity | ||||||||
| US.gpm | 0 | 13.2 | 26.4 | 35.2 | 44 | 52.8 | 61.6 | 70.4 | ||||
| m3/h | 0 | 3 | 6 | 8 | 10 | 12 | 14 | 16 | ||||
| 380V | L/min | 0 | 50 | 100 | 133 | 167 | 200 | 233 | 267 | |||
| HP | kW | A | Total head in meters | |||||||||
| R125-08-04 | 3 | 2.2 | 5.6 | H (m) | 70 | 66 | 59 | 52 | 45 | 37 | 29 | 19 |
| R125-08-05 | 4 | 3 | 7.3 | 86 | 82 | 73 | 65 | 57 | 46 | 34 | 22 | |
| R125-08-07 | 5.5 | 4 | 9.5 | 123 | 116 | 106 | 93 | 80 | 64 | 50 | 31 | |
| R125-08-10 | 7.5 | 5.5 | 12.8 | 172 | 163 | 147 | 130 | 113 | 91 | 70 | 46 | |
| R125-08-13 | 10 | 7.5 | 16.9 | 226 | 216 | 195 | 172 | 150 | 120 | 94 | 60 | |
| R125-08-16 | 12.5 | 9.2 | 20.2 | 280 | 263 | 236 | 207 | 180 | 146 | 112 | 72 | |
| R125-08-19 | 15 | 11 | 23.6 | 326 | 314 | 282 | 252 | 223 | 182 | 140 | 90 | |
| R125-08-23 | 17.5 | 13 | 28 | 392 | 376 | 334 | 296 | 260 | 210 | 160 | 102 | |
Mark * indicates that the pump body load is configured according to the rated power.
