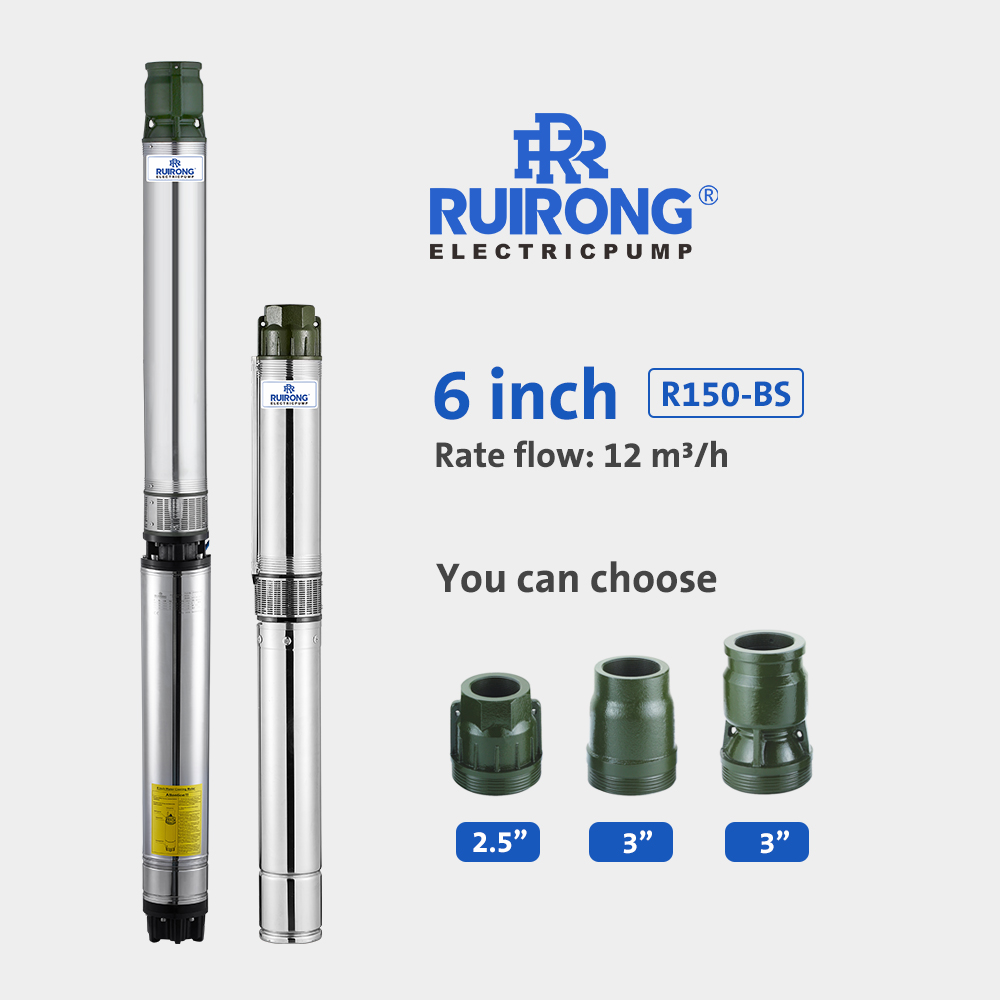

R150-BS
RUIRONG
1. Utilize a durable stainless steel 304 pump pipe paired with a PPO impeller and diffuser, offering both aesthetic appeal and excellent corrosion resistance.
2. A specially designed thrust bearing is installed to protect the pump from damage during start-up and transportation.
3. Choose from a variety of pump head materials, including copper alloy, stainless steel 304 or 316, and cast iron with anti-rust treatment.
Model 50Hz | Motor Power | Three Phase | Q | Capacity | ||||||||
| US.gpm | 0 | 26 | 35 | 44 | 53 | 62 | 70 | 79 | ||||
| m3/h | 0 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | ||||
| 380V | L/min | 0 | 100 | 133 | 167 | 200 | 233 | 267 | 300 | |||
| HP | kW | A | Total head in meters | |||||||||
| R150-BS-02 | 2 | 1.5 | 4.4 | H (m) | 33 | 31 | 30 | 27 | 25 | 21 | 16 | 9 |
| R150-BS-03 | 3 | 2.2 | 6.2 | 50 | 45 | 44 | 41 | 38 | 31 | 24 | 10 | |
| R150-BS-04 | 4 | 3 | 8.3 | 66 | 61 | 59 | 56 | 51 | 43 | 36 | 20 | |
| R150-BS-06 | 5.5 | 4 | 10.3 | 99 | 92 | 89 | 84 | 76 | 65 | 50 | 32 | |
| R150-BS-08 | 7.5 | 5.5 | 14 | 132 | 122 | 116 | 110 | 102 | 88 | 68 | 42 | |
| R150-BS-11 | 10 | 7.5 | 18.5 | 183 | 171 | 164 | 155 | 140 | 122 | 100 | 68 | |
| R150-BS-14 | 12.5 | 9.2 | 21 | 232 | 217 | 200 | 194 | 170 | 151 | 120 | 80 | |
| R150-BS-16 | 15 | 11 | 24 | 264 | 247 | 230 | 224 | 200 | 177 | 140 | 98 | |
| R150-BS-19 | 17.5 | 13 | 28 | 324 | 296 | 283 | 265 | 243 | 210 | 169 | 116 | |
| R150-BS-21 | 20 | 15 | 32 | 348 | 328 | 313 | 290 | 268 | 236 | 190 | 120 | |
| R150-BS-23 | 25 | 18.5 | 40 | 384 | 359 | 343 | 321 | 293 | 250 | 200 | 130 | |
 | (Unit of Length: mm) | ||||||
| Model | H3 | H2 | H1 | ΦA | ΦB | Φmax | |
| R150-BS-02 | 926 | 441 | 485 | G2 1/2" | 95 | 150 | |
| R150-BS-03 | 1025 | 501 | 524 | ||||
| R150-BS-04 | 1123 | 561 | 562 | 135 | |||
| R150-BS-06 | 1241 | 601 | 640 | ||||
| R150-BS-08 | 1322 | 607 | 715 | ||||
| R150-BS-11 | 1475 | 642 | 833 | ||||
| R150-BS-14 | 1628 | 682 | 946 | ||||
| R150-BS-16 | 1792 | 717 | 1075 | ||||
| R150-BS-19 | 1938 | 747 | 1191 | ||||
| R150-BS-21 | 2062 | 794 | 1268 | ||||
| R150-BS-23 | 2171 | 824 | 1347 | ||||
| Parts | Material | ||||||
| Delivery door | Cast iron | ||||||
| Suction support | Cast iron | ||||||
| Check value | Plastic(POM) | ||||||
| Valve support | Plastic(PPO/PC) | ||||||
| Shaft support | Plastic(PPO/PC) | ||||||
| Impeller | Plastic(PPO) | ||||||
| Diffuser | Plastic(POM) | ||||||
| Valve seal | Nitrile rubber(NBR) | ||||||
| Anti-wear washer | Nitrile rubber(NBR) | ||||||
| Pump bearing | Nitrile rubber(NBR) | ||||||
| Pump body | AISI 304 | ||||||
| Cable cover | AISI 304 | ||||||
| Filter | AISI 304 | ||||||
| Shaft | 2Cr13 | ||||||
| Shaft coupling | AISI 304 | ||||||
| Bushing | AISI 304 | ||||||
