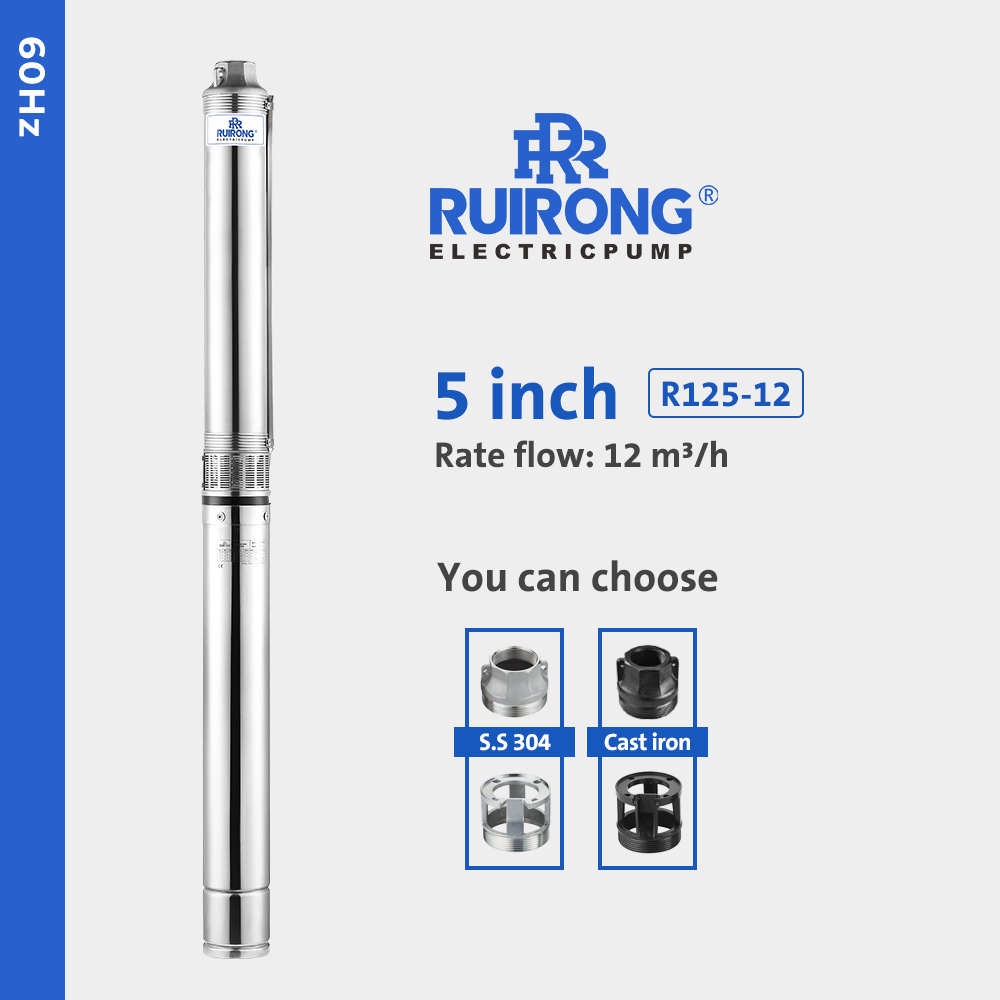

R125-12
RUIRONG
1. Enhance your pump's performance with a stainless steel 304 pump pipe, featuring a POM impeller and PPO diffuser for both beauty and corrosion resistance.
2. Designed for convenience, this pump boasts a maximum diameter of 125mm—smaller than the standard 6-inch well pump—making it perfect for easy installation in narrower wells.
3. Choose from a variety of durable pump head materials, including copper alloy, stainless steel 304/316, and cast iron with anti-rust treatment, to ensure longevity and reliability.
Model 60Hz | Motor Power | Three Phase | Q | Capacity | ||||||||
| US.gpm | 0 | 26.4 | 52.8 | 66 | 79.2 | 92.4 | 105.6 | 118.8 | ||||
| m3/h | 0 | 6 | 12 | 15 | 18 | 21 | 24 | 27 | ||||
| 380V | L/min | 0 | 100 | 200 | 250 | 300 | 350 | 400 | 450 | |||
| HP | kW | A | Total head in meters | |||||||||
| R125-12-03 | 3 | 2.2 | 5.6 | H (m) | 42 | 41 | 39 | 38 | 35 | 31 | 25 | 20 |
| R125-12-04 | 4 | 3 | 7.3 | 56 | 54 | 52 | 51 | 46 | 40 | 33 | 26 | |
| R125-12-05 | 5.5 | 4 | 9.5 | 70 | 67 | 65 | 62 | 56 | 50 | 41 | 31 | |
| R125-12-06 | 7.5 | 5.5 | 12.8 | 83 | 80 | 77 | 74 | 67 | 59 | 48 | 36 | |
| R125-12-08 | 10 | 7.5 | 16.9 | 110 | 107 | 103 | 99 | 90 | 77 | 63 | 44 | |
| R125-12-11 | 12.5 | 9.2 | 20.2 | 150 | 147 | 141 | 136 | 124 | 106 | 84 | 61 | |
| R125-12-13 | 15 | 11 | 23.6 | 179 | 174 | 168 | 162 | 148 | 128 | 104 | 78 | |
| R125-12-15 | 17.5 | 13 | 28 | 205 | 201 | 193 | 187 | 171 | 149 | 122 | 90 | |
Mark * indicates that the pump body load is configured according to the rated power.
