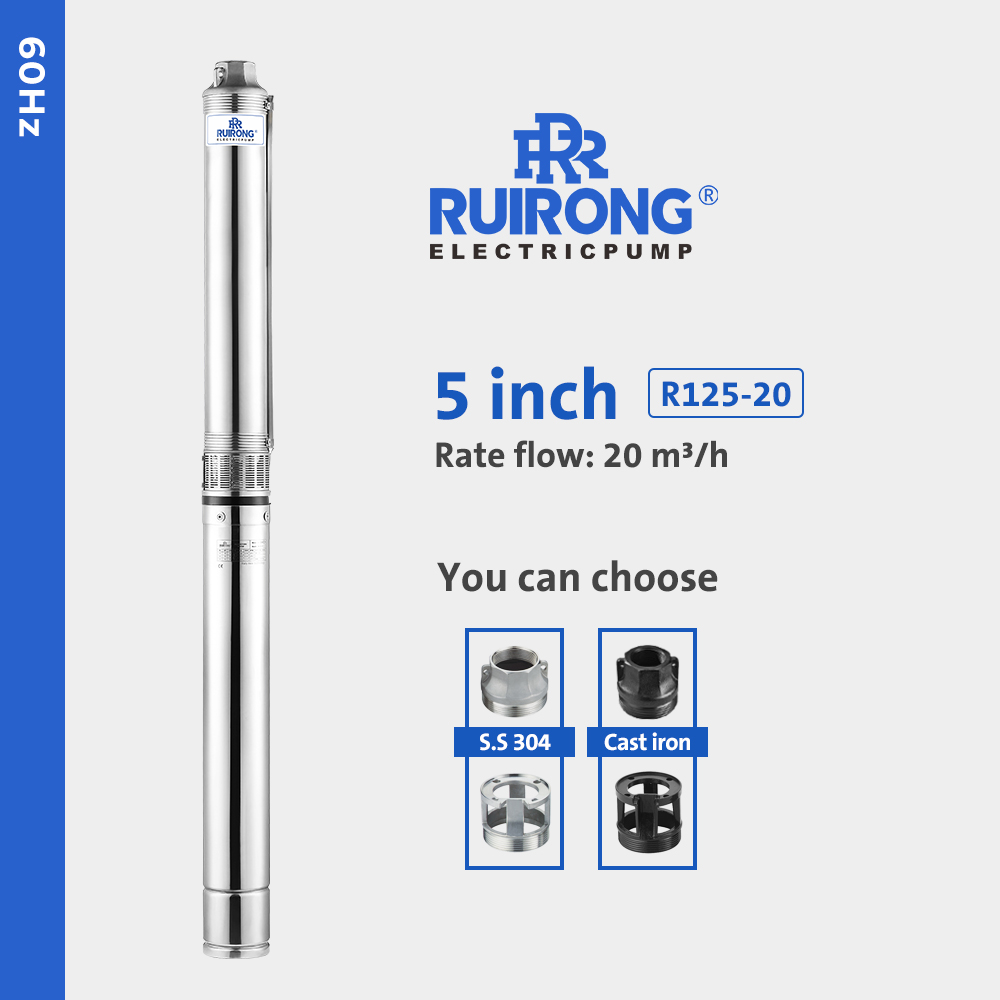

R125-20
RUIRONG
1. Enhance your pump's performance with a stainless steel 304 pump pipe, featuring a POM impeller and PPO diffuser for both beauty and corrosion resistance.
2. Designed for convenience, this pump boasts a maximum diameter of 125mm—smaller than the standard 6-inch well pump—making it perfect for easy installation in narrower wells.
3. Choose from a variety of durable pump head materials, including copper alloy, stainless steel 304/316, and cast iron with anti-rust treatment, to ensure longevity and reliability.
Model 60Hz | Motor Power | Three Phase | Q | Capacity | ||||||||
| US.gpm | 0 | 22 | 44 | 66 | 88 | 110 | 132 | 154 | ||||
| m3/h | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | ||||
| 380V | L/min | 0 | 83 | 167 | 250 | 333 | 417 | 500 | 583 | |||
| HP | kW | A | Total head in meters | |||||||||
| R125-20-02 | 3 | 2.2 | 5.6 | H (m) | 25 | 24 | 22 | 20 | 18 | 15 | 12 | 5 |
| R125-20-03 | 4 | 3 | 7.3 | 39 | 37 | 34 | 31 | 28 | 24 | 19 | 10 | |
| R125-20-04 | 5.5 | 4 | 9.5 | 51 | 50 | 46 | 41 | 38 | 33 | 26 | 14 | |
| R125-20-05 | 7.5 | 5.5 | 12.8 | 65 | 63 | 58 | 53 | 48 | 42 | 33 | 20 | |
| R125-20-07 | 10 | 7.5 | 16.9 | 91 | 89 | 81 | 74 | 69 | 60 | 48 | 29 | |
| R125-20-09 | 12.5 | 9.2 | 20.2 | 117 | 115 | 104 | 96 | 89 | 78 | 62 | 37 | |
| R125-20-11 | 15 | 11 | 23.6 | 143 | 138 | 129 | 118 | 111 | 97 | 77 | 46 | |
| R125-20-13 | 17.5 | 13 | 28 | 170 | 166 | 151 | 140 | 131 | 116 | 90 | 56 | |
Mark * indicates that the pump body load is configured according to the rated power.
