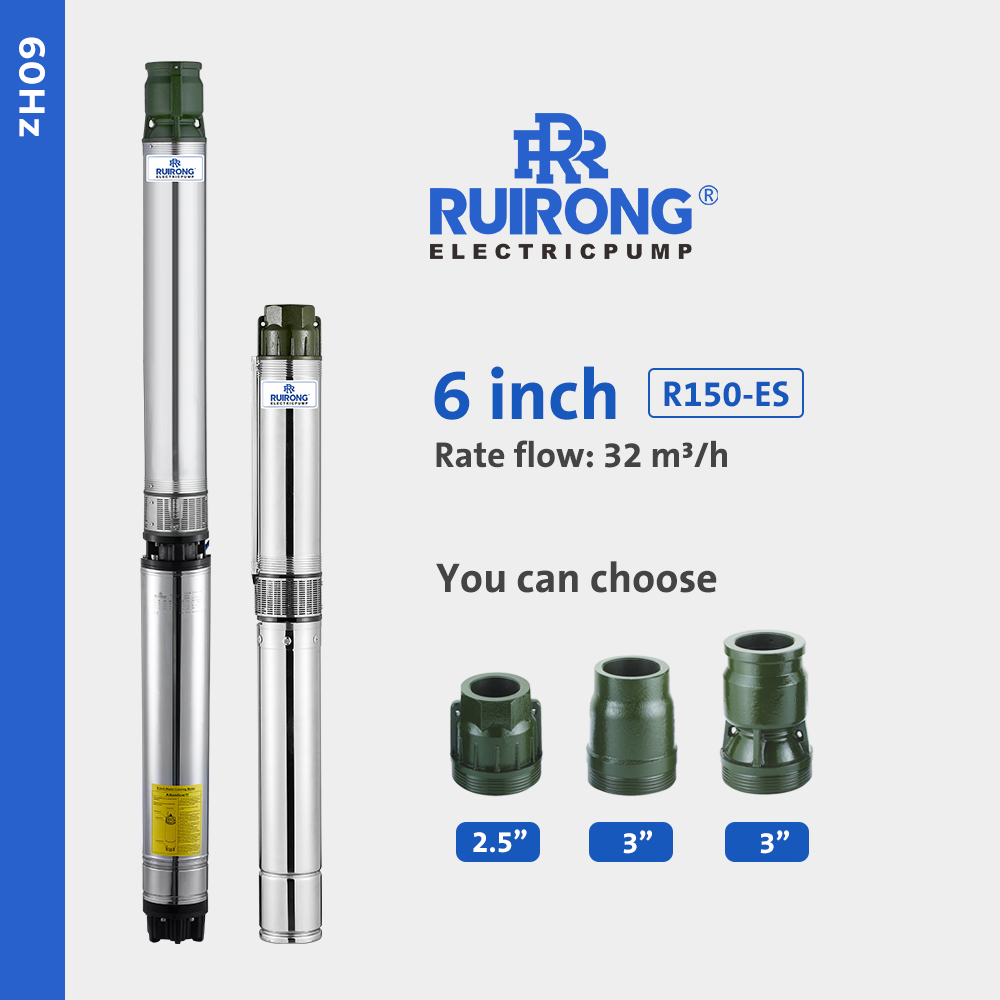

R150-ES
RUIRONG
1. Utilize a durable stainless steel 304 pump pipe paired with a PPO impeller and diffuser, offering both aesthetic appeal and excellent corrosion resistance.
2. A specially designed thrust bearing is installed to protect the pump from damage during start-up and transportation.
3. Choose from a variety of pump head materials, including copper alloy, stainless steel 304 or 316, and cast iron with anti-rust treatment.
Model 60Hz | Motor Power | Three Phase | Q | Capacity | ||||||||
| US.gpm | 0 | 79.2 | 105.6 | 132 | 158.4 | 184.8 | 211.2 | 237.6 | ||||
| m3/h | 0 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | ||||
| 380V | L/min | 0 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | |||
| HP | kW | A | Total head in meters | |||||||||
| *R150-ES-02 | 7.5 | 5.5 | 11.3 | H (m) | 42 | 40 | 38 | 34 | 31 | 26 | 20 | 13 |
| *R150-ES-03 | 10 | 7.5 | 15.2 | 64 | 59 | 56 | 52 | 46 | 39 | 30 | 20 | |
| *R150-ES-04 | 15 | 11 | 21.6 | 85 | 79 | 75 | 69 | 62 | 52 | 39 | 27 | |
| *R150-ES-05 | 17.5 | 13 | 25.4 | 106 | 99 | 94 | 86 | 77 | 65 | 49 | 33 | |
| *R150-ES-06 | 20 | 15 | 28.2 | 127 | 119 | 113 | 103 | 92 | 78 | 59 | 40 | |
| *R150-ES-07 | 25 | 18.5 | 34.5 | 148 | 139 | 132 | 120 | 108 | 91 | 69 | 47 | |
| *R150-ES-08 | 30 | 22 | 40.8 | 170 | 158 | 150 | 138 | 123 | 104 | 79 | 53 | |
| R150-ES-09 | 30 | 22 | 46.9 | 191 | 178 | 169 | 155 | 138 | 117 | 89 | 60 | |
| *R150-ES-10 | 35 | 26 | 51 | 212 | 198 | 188 | 172 | 154 | 130 | 99 | 67 | |
| *R150-ES-11 | 40 | 30 | 56.7 | 233 | 218 | 207 | 189 | 169 | 143 | 108 | 74 | |
| R150-ES-12 | 40 | 30 | 64.4 | 254 | 238 | 226 | 206 | 185 | 156 | 118 | 80 | |
| *R150-ES-11 | 50 | 37 | 75 | 278 | 265 | 253 | 237 | 214 | 181 | 143 | 97 | |
Mark * indicates that the pump body load is configured according to the rated power.
