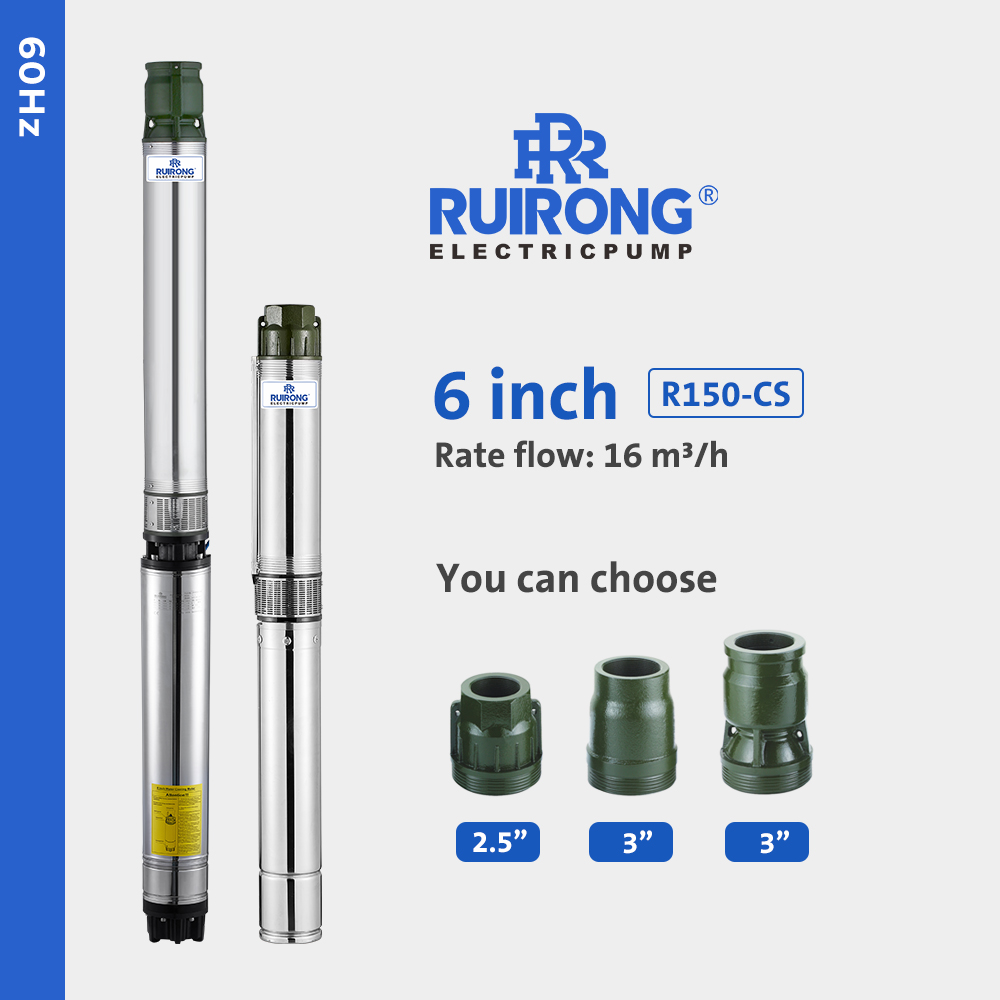

R150-CS
RUIRONG
1. Utilize a durable stainless steel 304 pump pipe paired with a PPO impeller and diffuser, offering both aesthetic appeal and excellent corrosion resistance.
2. A specially designed thrust bearing is installed to protect the pump from damage during start-up and transportation.
3. Choose from a variety of pump head materials, including copper alloy, stainless steel 304 or 316, and cast iron with anti-rust treatment.
Model 60Hz | Motor Power | Three Phase | Q | Capacity | ||||||||
| US.gpm | 0 | 39.6 | 66 | 92.4 | 105.6 | 118.8 | 132 | 145.2 | ||||
| m3/h | 0 | 9 | 15 | 21 | 24 | 27 | 30 | 33 | ||||
| 380V | L/min | 0 | 150 | 250 | 350 | 400 | 450 | 500 | 550 | |||
| HP | kW | A | Total head in meters | |||||||||
| *R150-CS-02 | 4 | 3 | 7.5 | H (m) | 45 | 41 | 37 | 33 | 30 | 26 | 22 | 17 |
| *R150-CS-03 | 5.5 | 4 | 9.2 | 67 | 61 | 56 | 49 | 45 | 39 | 33 | 26 | |
| *R150-CS-04 | 7.5 | 5.5 | 11.3 | 89 | 82 | 74 | 66 | 60 | 52 | 44 | 34 | |
| *R150-CS-05 | 10 | 7.5 | 15.2 | 112 | 102 | 93 | 82 | 74 | 65 | 55 | 43 | |
| *R150-CS-06 | 12.5 | 9.2 | 18.4 | 134 | 123 | 111 | 99 | 89 | 78 | 66 | 51 | |
| *R150-CS-07 | 15 | 11 | 21.6 | 157 | 143 | 130 | 115 | 104 | 92 | 77 | 60 | |
| R150-CS-08 | 15 | 11 | 24.8 | 179 | 164 | 149 | 132 | 119 | 105 | 88 | 69 | |
| *R150-CS-10 | 20 | 15 | 28.2 | 224 | 205 | 186 | 165 | 149 | 131 | 110 | 86 | |
| *R150-CS-12 | 25 | 18.5 | 34.5 | 268 | 246 | 223 | 198 | 179 | 157 | 132 | 103 | |
| *R150-CS-14 | 30 | 22 | 40.8 | 313 | 287 | 260 | 231 | 208 | 183 | 154 | 120 | |
| *R150-CS-16 | 35 | 26 | 51 | 358 | 328 | 297 | 264 | 238 | 209 | 176 | 137 | |
Mark * indicates that the pump body load is configured according to the rated power.
