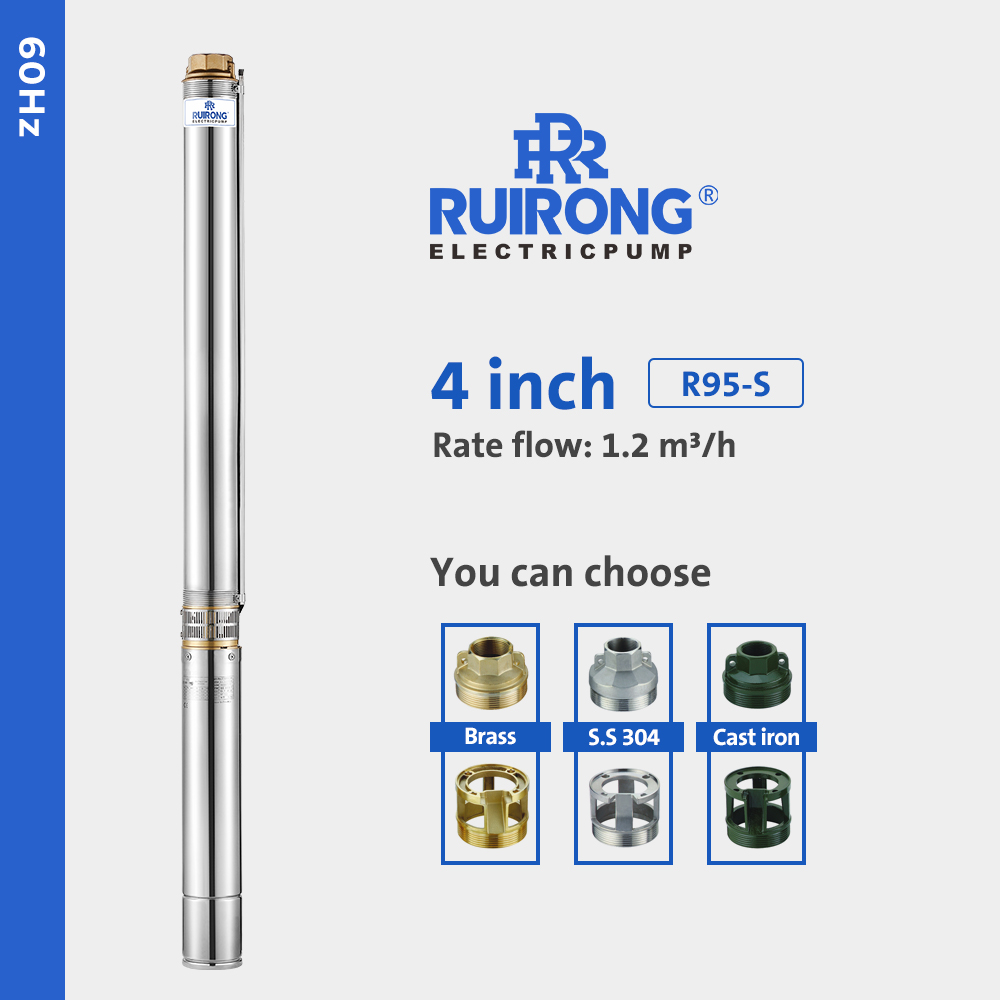

R95-S
RUIRONG
1. Upgrade to a stainless steel 304 pump pipe for its attractive appearance and excellent corrosion resistance.
2. Benefit from a POM impeller and PPO diffuser, designed for high temperature resistance, superior corrosion resistance, enhanced mechanical strength, and extended longevity.
3. The multi-stage floating impeller design significantly lowers starting torque requirements and boasts strong sand resistance, contributing to a longer motor lifespan.
4. Choose from various pump head materials, including copper alloy, stainless steel 304 or 316, and rust-resistant cast iron, to suit your specific needs.
Model 60Hz | Motor Power | Three Phase | Single Phase | Q | Capacity | ||||||||||
| US.gpm | 0 | 2.2 | 4.4 | 6.6 | 7.9 | 8.8 | 11 | 13.2 | |||||||
| m3/h | 0 | 0.5 | 1 | 1.5 | 1.8 | 2 | 2.5 | 3 | |||||||
| 380V | 220V | L/min | 0 | 8.3 | 16.7 | 25 | 30 | 33.3 | 41.7 | 50 | |||||
| HP | kW | A | A | μF | VC | Total head in meters | |||||||||
| R95-S-04 | 0.5 | 0.37 | 1.2 | 3.4 | 20 | 450 | H (m) | 50 | 49 | 46 | 41 | 38 | 36 | 27 | 15 |
| R95-S-06 | 0.5 | 0.37 | 2.2 | 5.5 | 20 | 450 | 76 | 74 | 69 | 62 | 57 | 54 | 41 | 23 | |
| R95-S-08 | 0.75 | 0.55 | 2.6 | 6.5 | 25 | 450 | 101 | 98 | 92 | 83 | 77 | 72 | 54 | 31 | |
| R95-S-10 | 1 | 0.75 | 2.1 | 5.4 | 30 | 450 | 127 | 123 | 115 | 104 | 96 | 90 | 68 | 38 | |
| R95-S-12 | 1.5 | 1.1 | 2.8 | 7.2 | 40 | 450 | 152 | 147 | 138 | 124 | 115 | 108 | 81 | 46 | |
| R95-S-14 | 1.5 | 1.1 | 3.9 | 10.1 | 40 | 450 | 178 | 172 | 161 | 146 | 134 | 126 | 95 | 54 | |
| R95-S-16 | 2 | 1.5 | 5 | 12.6 | 50 | 450 | 203 | 196 | 184 | 166 | 154 | 144 | 108 | 61 | |
| R95-S-22 | 3 | 2.2 | 5.4 | 13.6 | 60 | 450 | 279 | 270 | 253 | 228 | 211 | 198 | 149 | 84 | |
| R95-S-24 | 3 | 2.2 | 6.6 | 16.8 | 60 | 450 | 304 | 295 | 276 | 260 | 240 | 225 | 170 | 96 | |
| R95-S-30 | 4 | 3 | 6.7 | - | - | - | 381 | 369 | 345 | 312 | 288 | 270 | 204 | 115 | |
 | (Unit of Length: mm) | ||||||
| Model | H3 | H2 | H1 | ΦA | ΦB | Φmax | |
| R95-S-04 | 688 | 367 | 321 | G1 1/4" | 95 | 100 | |
| R95-S-06 | 733 | 367 | 366 | ||||
| R95-S-08 | 774 | 367 | 407 | ||||
| R95-S-10 | 839 | 387 | 452 | ||||
| R95-S-12 | 901 | 407 | 494 | ||||
| R95-S-14 | 944 | 407 | 537 | ||||
| R95-S-16 | 1023 | 442 | 581 | ||||
| R95-S-22 | 1212 | 502 | 710 | ||||
| R95-S-24 | 1257 | 502 | 755 | ||||
| R95-S-30 | 1491 | 562 | 929 | ||||
| Parts | Material | ||||||
| Delivery door | Cast iron | ||||||
| Suction support | Cast iron | ||||||
| Check value | Plastic(POM) | ||||||
| Valve support | Plastic(PPO/PC) | ||||||
| Shaft support | Plastic(PPO/PC) | ||||||
| Impeller | Plastic(PPO) | ||||||
| Diffuser | Plastic(POM) | ||||||
| Valve seal | Nitrile rubber(NBR) | ||||||
| Anti-wear washer | Nitrile rubber(NBR) | ||||||
| Pump bearing | Nitrile rubber(NBR) | ||||||
| Pump body | AISI 304 | ||||||
| Cable cover | AISI 304 | ||||||
| Filter | AISI 304 | ||||||
| Shaft | 2Cr13 | ||||||
| Shaft coupling | AISI 304 | ||||||
| Bushing | AISI 304 | ||||||
