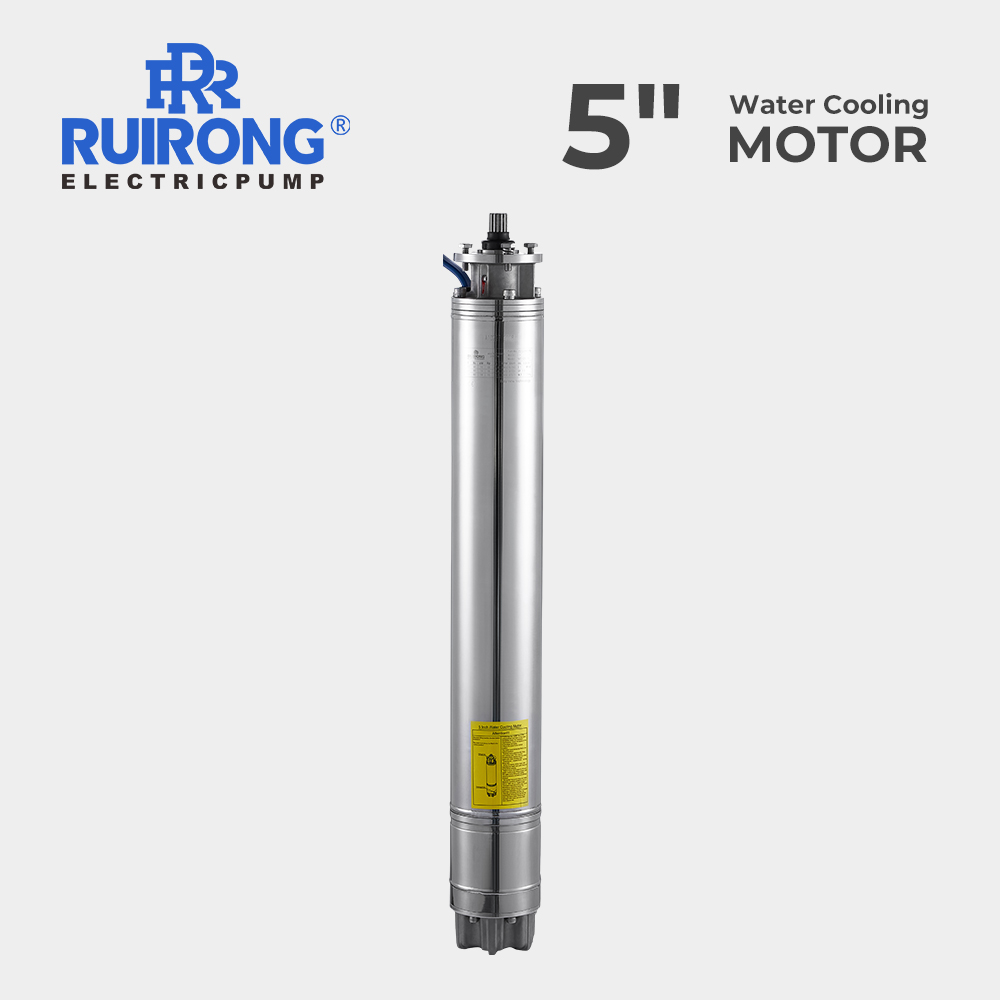

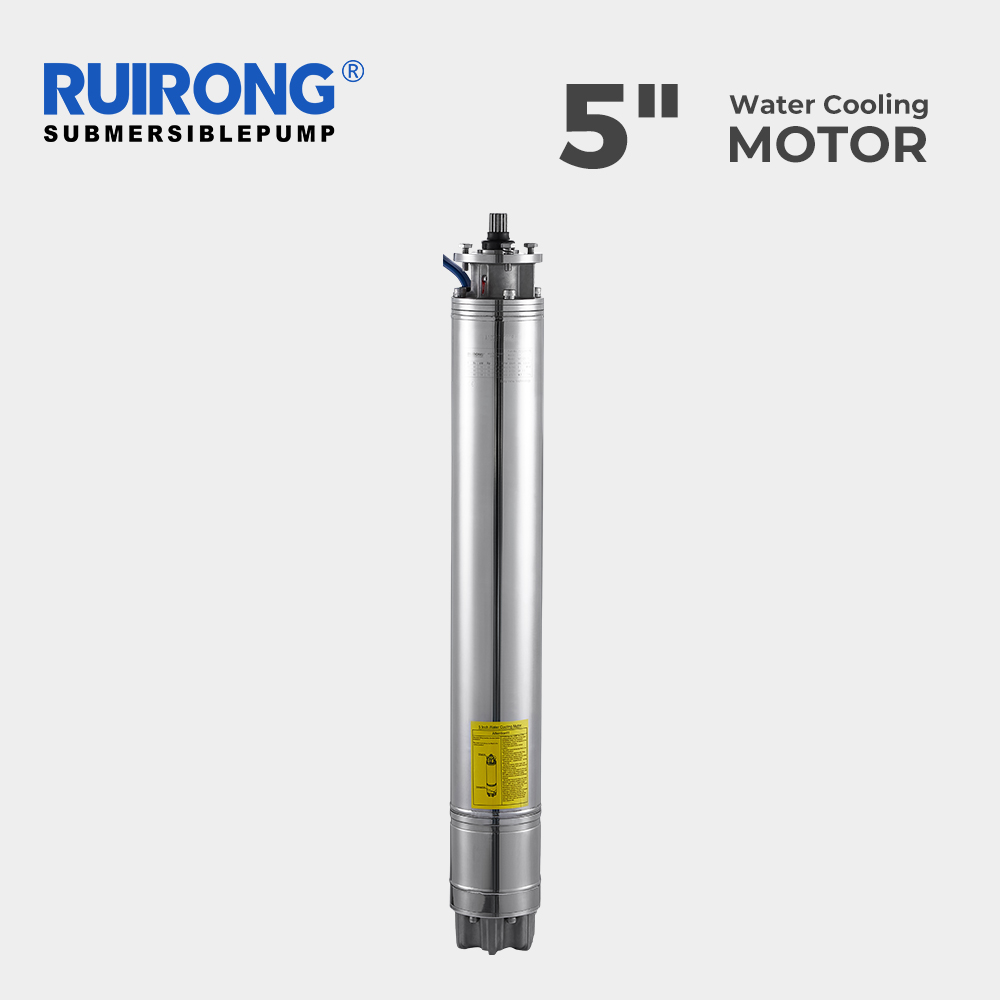

MS125
RUIRONG
1. Featuring a double flange connection and spline design conforming to NEMA standards.
2. Incorporates a high-thrust bearing for enhanced durability.
3. Utilizes a rewindable winding design with PE2 pure copper submersible wire, ensuring low temperature rise and stable performance, ideal for long-term continuous operation.
4. Includes a skeleton oil seal for effective sand control.
5. The water-filled motor is equipped to use frequency conversion submersible wire winding, making it perfect for applications such as constant pressure water supply, fountains, and frequency converters.
| Three-phase 380/415V 50Hz | |||||||
| Model | kW | HP | Current(A) | CosΦ | rpm | L(mm) | W(Kg) |
| MS125-3.0 | 4 | 4 | 8.2 | 0.78 | 2860 | 802 | 33.9 |
| MS125-4.0 | 5.5 | 5.5 | 11 | 0.78 | 2860 | 842 | 36.8 |
| MS125-5.5 | 7.5 | 7.5 | 14.3 | 0.79 | 2860 | 882 | 41.5 |
| MS125-7.5 | 9.2 | 10 | 19 | 0.81 | 2860 | 902 | 44.6 |
| MS125-9.2 | 11 | 12.5 | 23 | 0.83 | 2860 | 952 | 48.3 |
| MS125-11 | 13 | 15 | 27.5 | 0.79 | 2860 | 1002 | 53 |
| MS125-13 | 15 | 17.5 | 32 | 0.83 | 2860 | 1072 | 58.3 |
| MS125-15 | 18.5 | 20 | 36 | 0.82 | 2860 | 1132 | 62.8 |
| MS125-18.5 | 15 | 25 | 44 | 0.81 | 2860 | 1212 | 69.7 |
When using a variable frequency drive, the normal operating output voltage frequency range is maintained between 35Hz and the rated frequency, and the starting frequency is not less than 35Hz (for a motor with a rated frequency of 50Hz), or 40Hz (for a motor with a rated frequency of 60Hz), and the time from the starting voltage frequency to the rated voltage frequency does not exceed 10 seconds.
