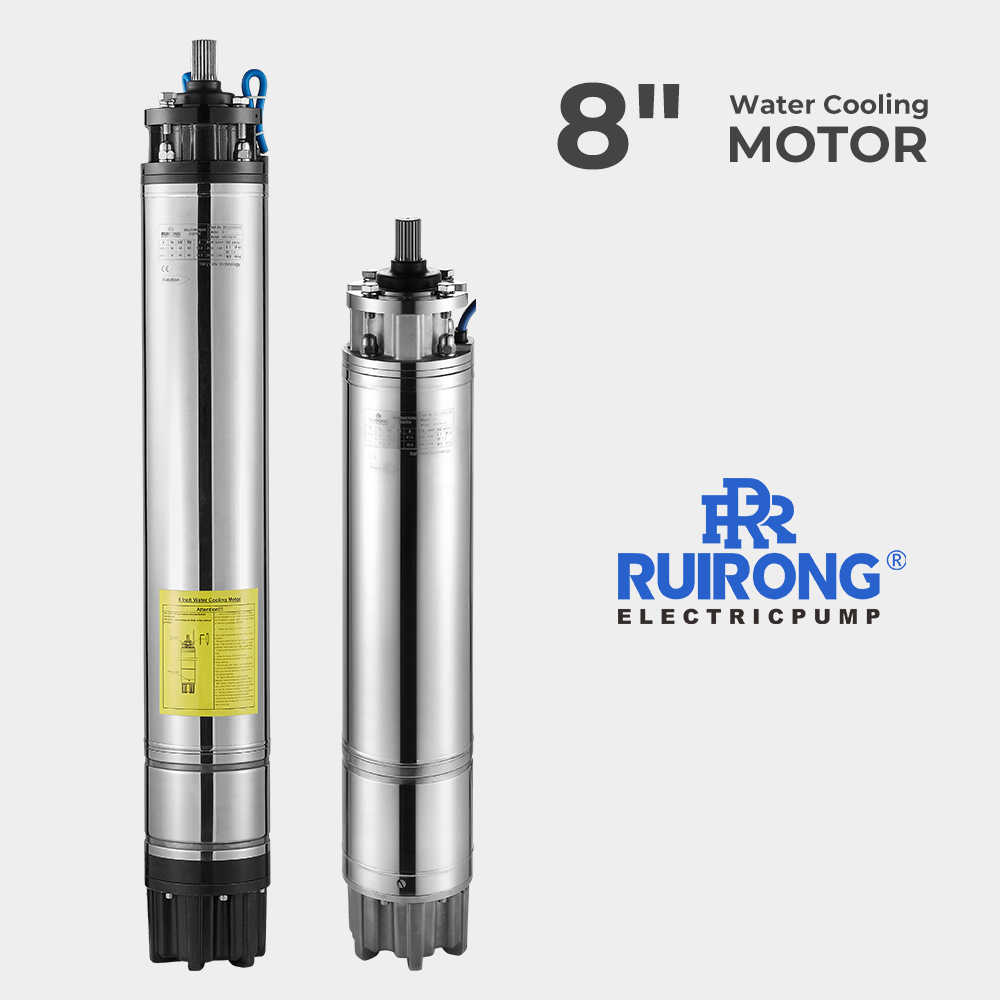

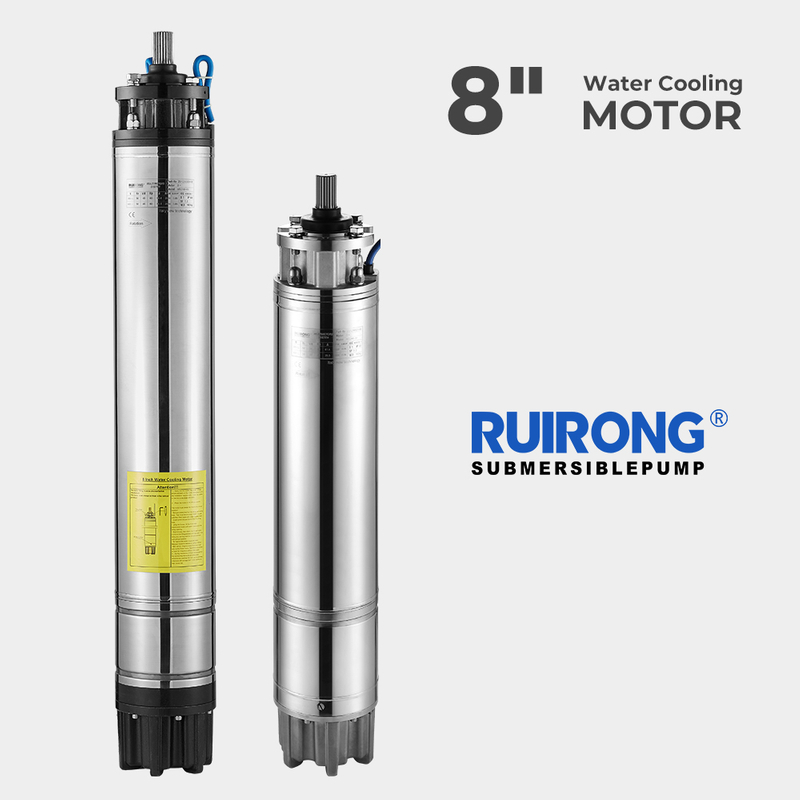

MS200
RUIRONG
1. Double Flange Connection with Spline: Designed in compliance with NEMA standards.
2. High-Thrust Bearing Integration: For improved durability and performance.
3. Rewindable Winding Design: Features pure copper diving wire (PE2) for low-temperature rise and stable performance, making it ideal for extended continuous operation.
4. Skeleton Oil Seal: Effective for sand control.
5. Water-Filled Motor Options: Compatible with frequency conversion submersible wire winding, making it perfect for applications such as constant pressure water supply, fountains, and frequency converters.
| Three-phase 380/415V 50Hz | |||||||
| Model | kW | HP | Current(A) | CosΦ | rpm | L(mm) | W(Kg) |
| MS200-18.5 | 18.5 | 25 | 42 | 0.83 | 2880 | 1135 | - |
| MS200-22 | 22 | 30 | 48.6 | 0.83 | 2880 | 1175 | - |
| MS200-26 | 26 | 35 | 57.2 | 0.82 | 2880 | 1215 | - |
| MS200-30 | 30 | 40 | 64.5 | 0.84 | 2860 | 1280 | 133 |
| MS200-37 | 37 | 50 | 79.7 | 0.84 | 2860 | 1325 | 141 |
| MS200-45 | 45 | 60 | 94.6 | 0.85 | 2880 | 1380 | 154 |
| MS200-55 | 55 | 75 | 115.7 | 0.85 | 2880 | 1515 | 181 |
| MS200-64 | 64 | 85 | 132 | 0.86 | 2880 | 1575 | 193.5 |
| MS200-75 | 75 | 100 | 155 | 0.86 | 2880 | 1645 | 216 |
| MS200-90 | 90 | 120 | 185 | 0.86 | 2880 | 1720 | 230 |
| MS200-100 | 100 | 140 | 205 | 0.86 | 2880 | 1851 | 270 |
| MS200-110 | 110 | 150 | 226 | 0.88 | 2880 | 1855 | 300 |
When using a variable frequency drive, the normal operating output voltage frequency range is maintained between 35Hz and the rated frequency, and the starting frequency is not less than 35Hz (for a motor with a rated frequency of 50Hz), or 40Hz (for a motor with a rated frequency of 60Hz), and the time from the starting voltage frequency to the rated voltage frequency does not exceed 10 seconds.
