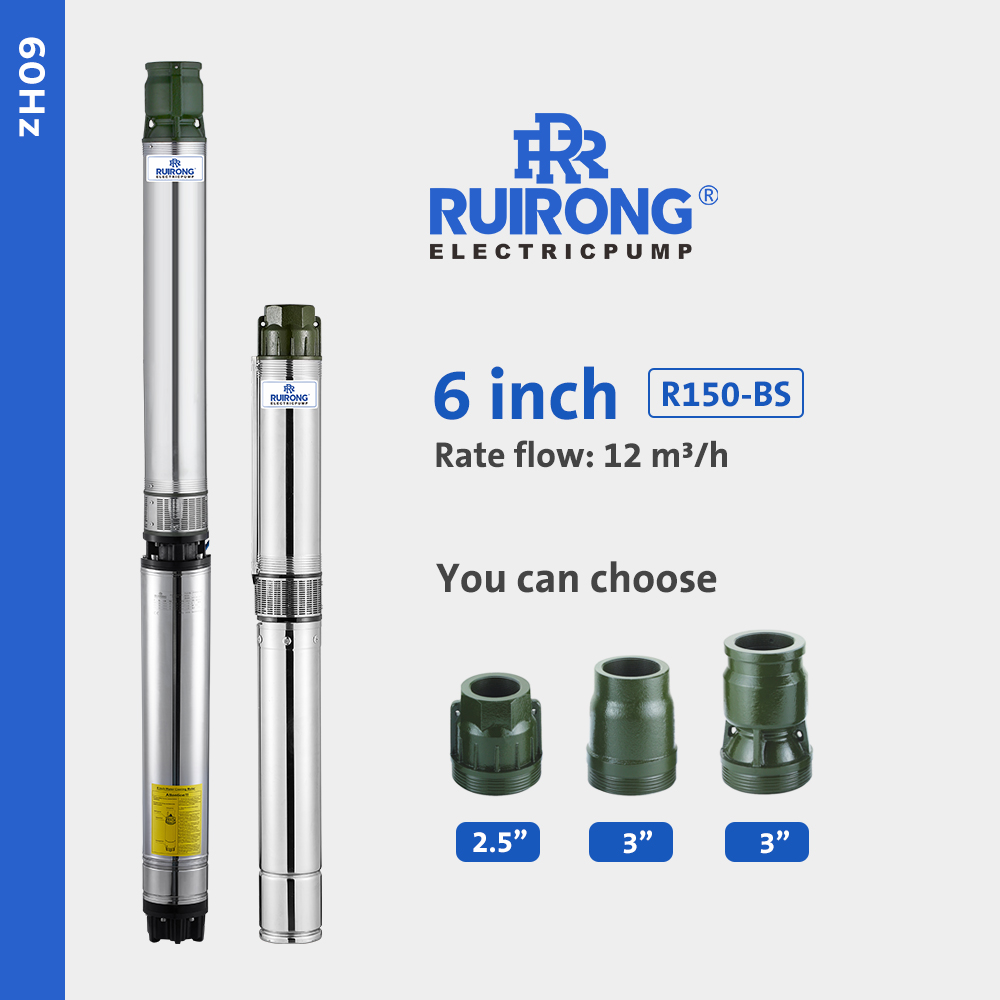

R150-BS
RUIRONG
1. Utilize a durable stainless steel 304 pump pipe paired with a PPO impeller and diffuser, offering both aesthetic appeal and excellent corrosion resistance.
2. A specially designed thrust bearing is installed to protect the pump from damage during start-up and transportation.
3. Choose from a variety of pump head materials, including copper alloy, stainless steel 304 or 316, and cast iron with anti-rust treatment.
Model 60Hz | Motor Power | Three Phase | Q | Capacity | ||||||||
| US.gpm | 0 | 13.2 | 26.4 | 39.6 | 52.8 | 66 | 79.2 | 92.4 | ||||
| m3/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | ||||
| 380V | L/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | |||
| HP | kW | A | Total head in meters | |||||||||
| *R150-BS-01 | 1.5 | 1.1 | 2.8 | H (m) | 24 | 22 | 21 | 19 | 18 | 16 | 13 | 10 |
| *R150-BS-02 | 3 | 2.2 | 5.4 | 47 | 44 | 41 | 38 | 35 | 31 | 26 | 20 | |
| *R150-BS-03 | 4 | 3 | 7.5 | 71 | 66 | 62 | 57 | 53 | 47 | 39 | 30 | |
| *R150-BS-04 | 5.5 | 4 | 9.2 | 94 | 88 | 83 | 76 | 70 | 62 | 52 | 40 | |
| *R150-BS-05 | 7.5 | 5.5 | 11.3 | 118 | 110 | 104 | 95 | 88 | 78 | 65 | 50 | |
| *R150-BS-06 | 10 | 7.5 | 15.2 | 142 | 131 | 124 | 114 | 106 | 94 | 79 | 61 | |
| *R150-BS-08 | 12.5 | 9.2 | 18.4 | 189 | 175 | 166 | 152 | 141 | 125 | 105 | 81 | |
| *R150-BS-10 | 15 | 11 | 21.6 | 236 | 219 | 207 | 190 | 176 | 156 | 131 | 101 | |
| *R150-BS-12 | 17.5 | 13 | 25.4 | 283 | 263 | 248 | 228 | 211 | 187 | 157 | 121 | |
Mark * indicates that the pump body load is configured according to the rated power.
