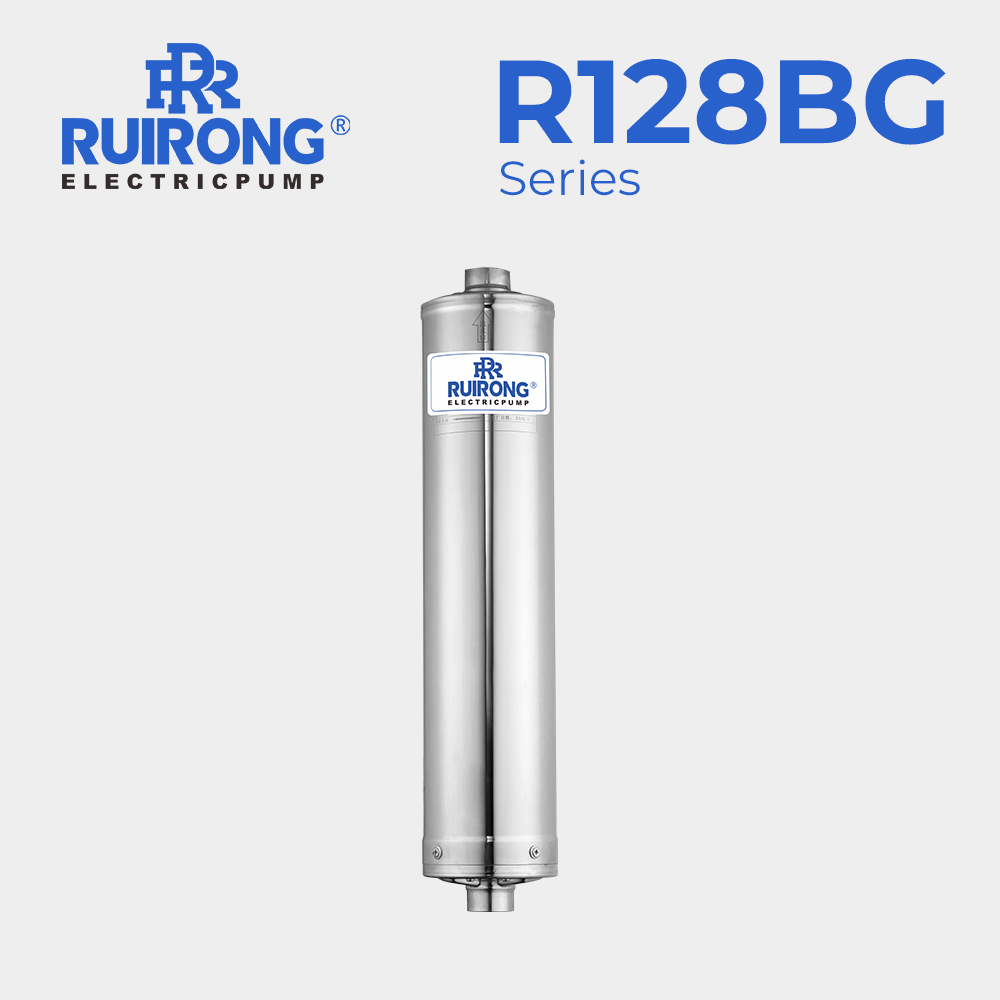

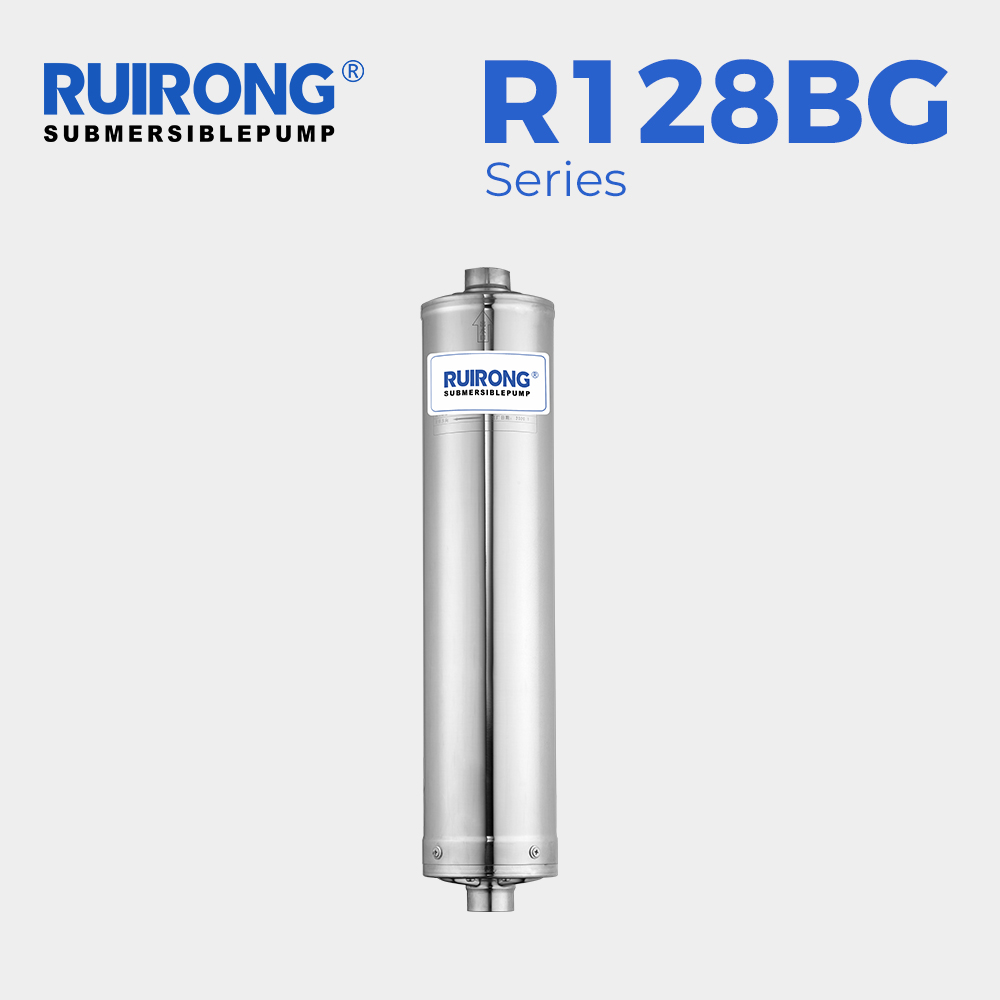

R128BG
RUIRONG
1. Featuring an Italian-designed double mechanical seal for enhanced performance.
2. The motor is strategically positioned in the inlet area. The single-phase motor includes a built-in overheating protection device. It also boasts a GE-PPO impeller and diffuser for improved efficiency.
3. Experience high head and high efficiency with this product, known for its durability and ultra-quiet operation.
Ideal for use in pressurized systems across various environments including factories, schools, residential areas, and home pipelines.
Model Single Phase | Mode Three Phase | Motor Power | Single Phase | Three Phase | Q | Capacity | Outlet | ||||||||||
| m³/h | 0 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.8 | |||||||||
| L/min | 0 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | |||||||||
| HP | kW | A | μF | VC | A | Total head in meters | |||||||||||
| R128BG-3 | R128BG-3T | 0.67 | 0.5 | 3.4 | 20 | 450 | - | H(m) | 39 | 36 | 34 | 31 | 28 | 25 | 21 | 12 | 30mm G1 1/4" |
| R128BG-4 | R12BG-4T | 0.8 | 0.6 | 4.4 | 25 | 450 | 2.2 | 52 | 48 | 45 | 42 | 38 | 33 | 28 | 22 | ||
| R128BG-5 | R128BG-5T | 1 | 0.8 | 5.4 | 30 | 450 | 2.7 | 65 | 60 | 56 | 52 | 47 | 41 | 35 | 28 | ||
| R128BG-6 | R128BG-6T | 1.3 | 1 | 6.5 | 35 | 450 | 3.3 | 78 | 72 | 68 | 62 | 56 | 50 | 42 | 33 | ||
| R128BG-7 | R128BG-7T | 1.6 | 1.2 | 7.4 | 35 | 450 | 3.8 | 91 | 84 | 79 | 73 | 66 | 58 | 49 | 39 | ||
