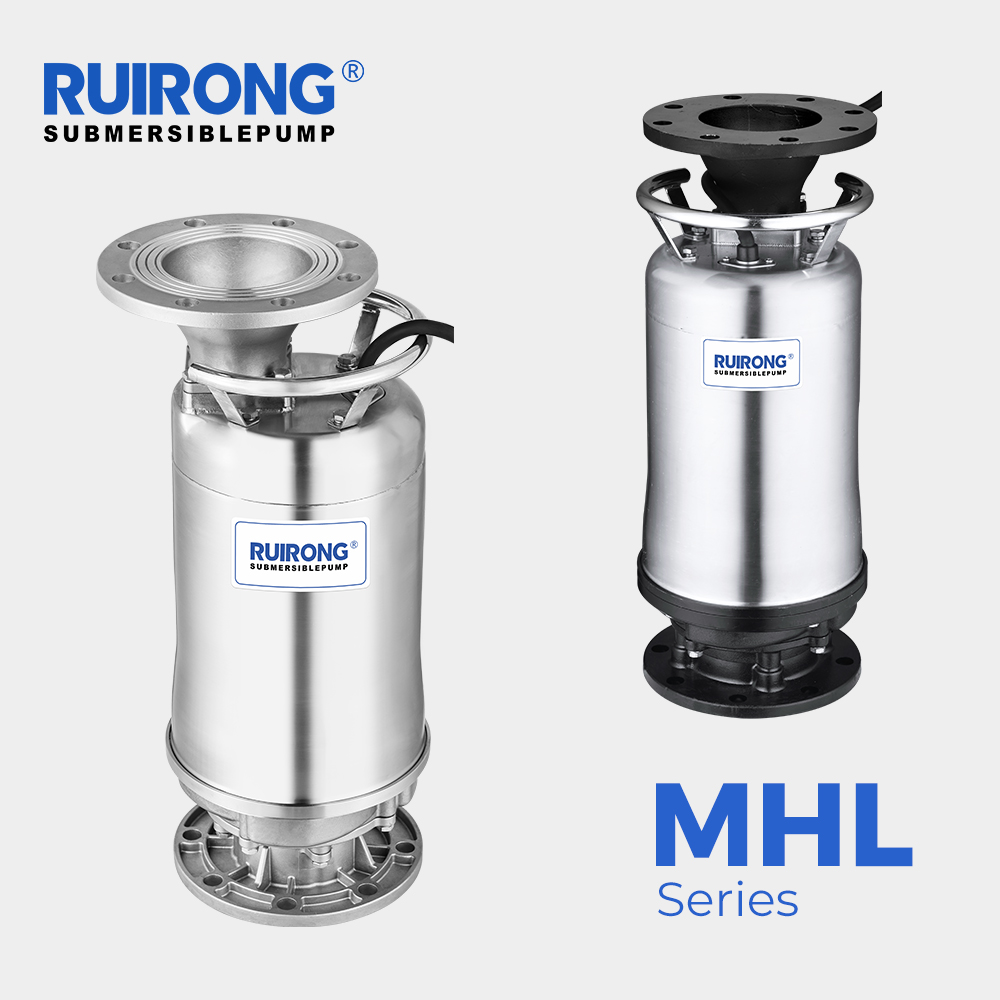

MHL
RUIRONG
1. The impeller is made of fine cast 304, which is corrosion resistant. Other castings are made of ductile iron, with high tensile strength and corrosion resistance. The shell is made of stainless steel 304 with beautiful appearance.
2. Comprehensive self-cooling motor, water flow directly through the outside of the motor, good heat dissipation, can run for a long time, motor power saving efficiency.
3. The motor is not easy to burn, equipped with double-group silicon carbide mechanical shaft seal and oil seal. The cable line is potted with epoxy resin to prevent water vapor from entering inside the motor, durable and long service life.
4. The excellent impeller design ensures large water supply and has excellent suction power for well pumping.
5. Pumping and water delivery dual-use, remove the filter to replace the tank of the underground well, you can convert to land pumping use.
1.Water supply and drainage for fish ponds and aquaculture
2.Agricultural wells for pumping irrigation, water storage at engineering sites
3.Landscape water, gardening irrigation
4.Water supply and drainage for other occasions

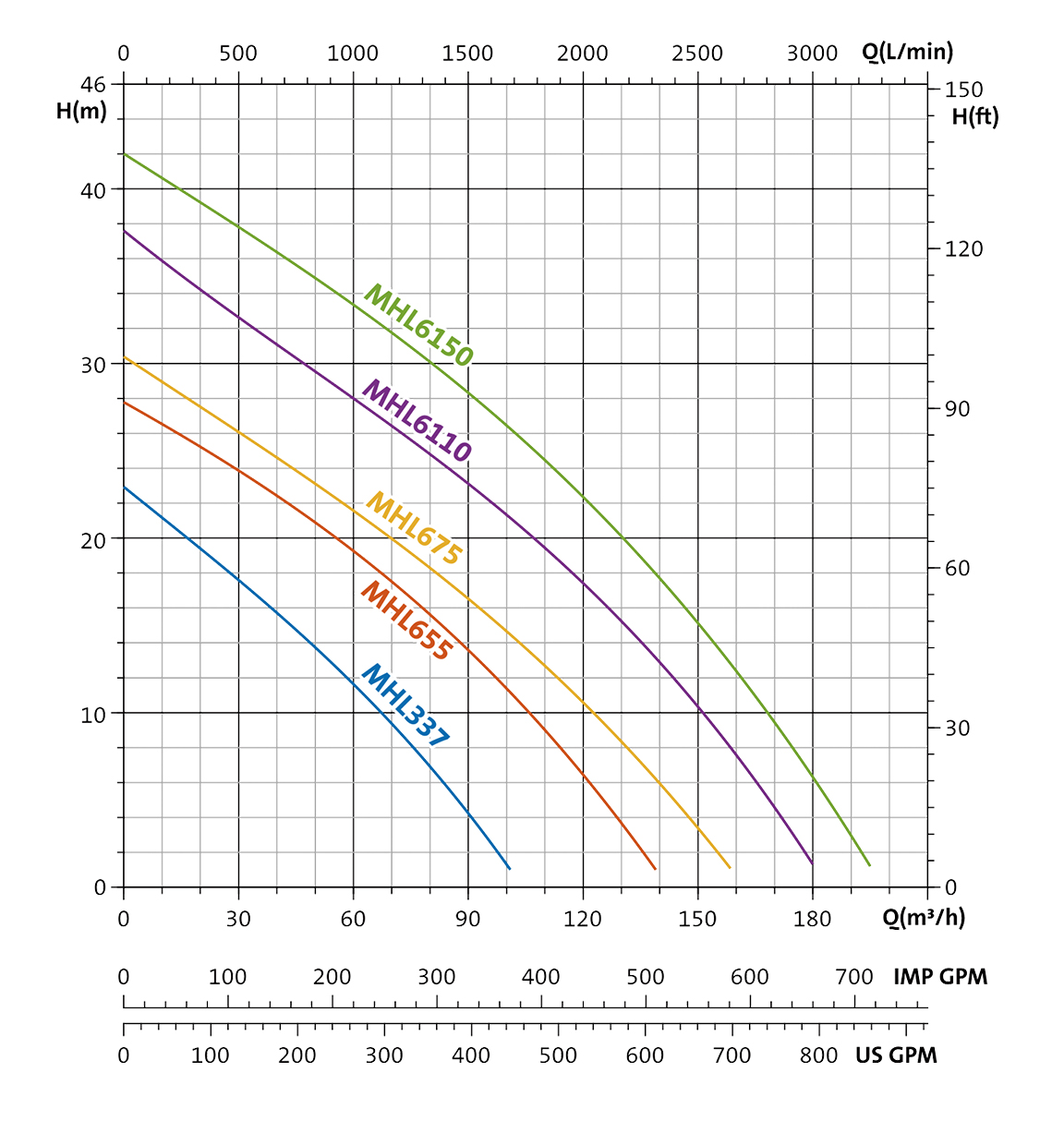

Model 50Hz | Power | Voltage | Current | Rotation | Rated | Max | Outlet | |||
| Flow | Head | Flow | Head | |||||||
| kW | HP | V | A | P/rpm | m³/h | m | m³/h | m | mm | |
| MHL337 | 3.7 | 5 | 380 | 8.2 | 2850 | 50 | 13 | 95 | 22 | 75 |
| MHL655 | 5.5 | 7.5 | 380 | 11.6 | 2850 | 60 | 20 | 135 | 27.5 | 150 |
| MHL675 | 7.5 | 10 | 380 | 17 | 2850 | 90 | 17 | 160 | 30 | 150 |
| MHL6110 | 11 | 15 | 380 | 21 | 2850 | 90 | 22 | 180 | 37 | 150 |
| MHL6150 | 15 | 20 | 380 | 27.8 | 2850 | 90 | 28 | 200 | 42 | 150 |
