MHS
RUIRONG

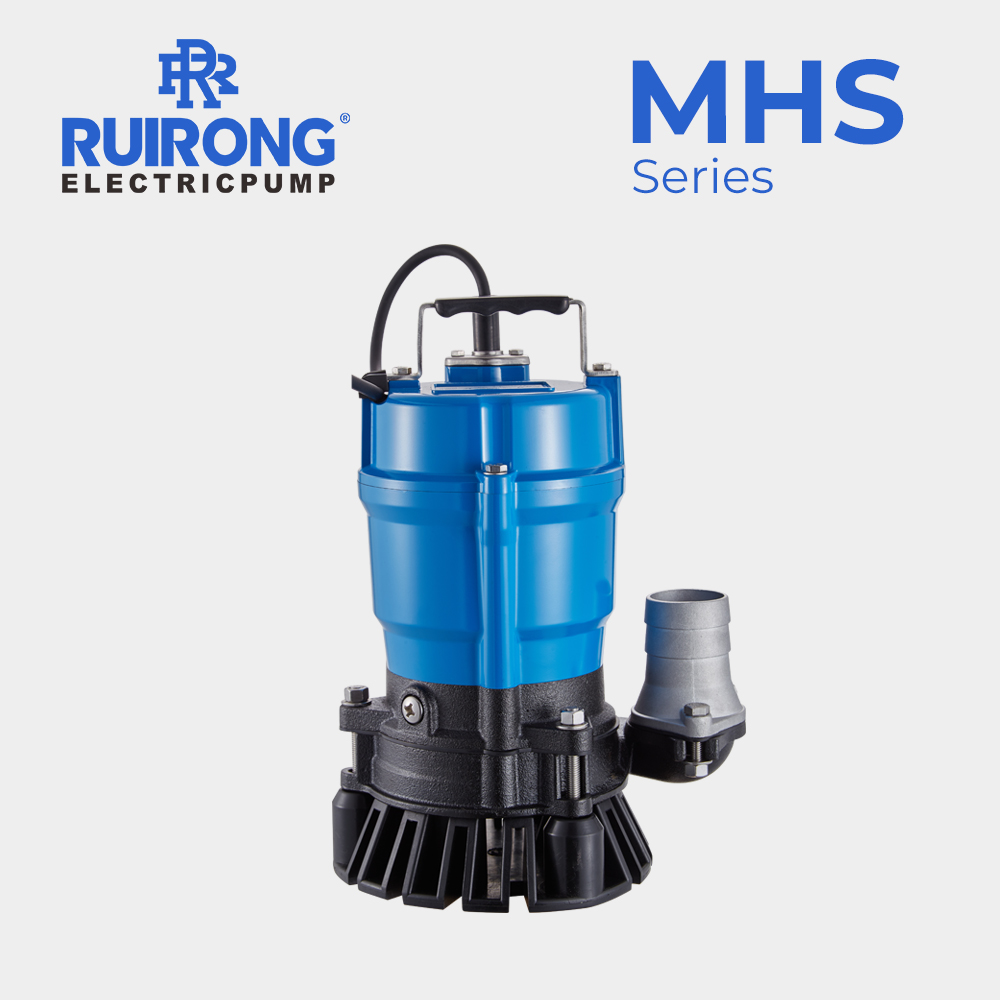

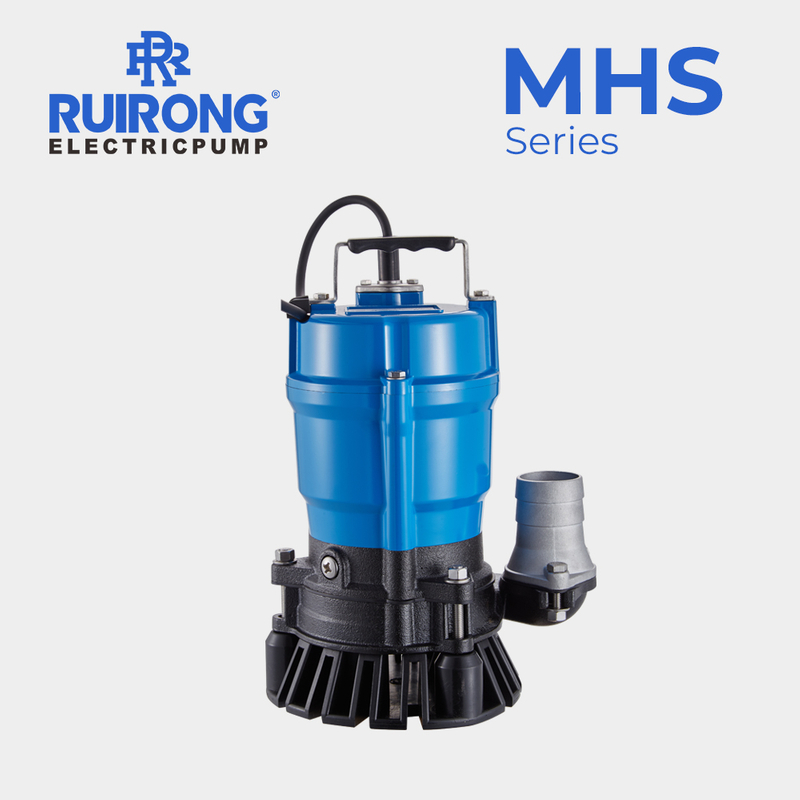

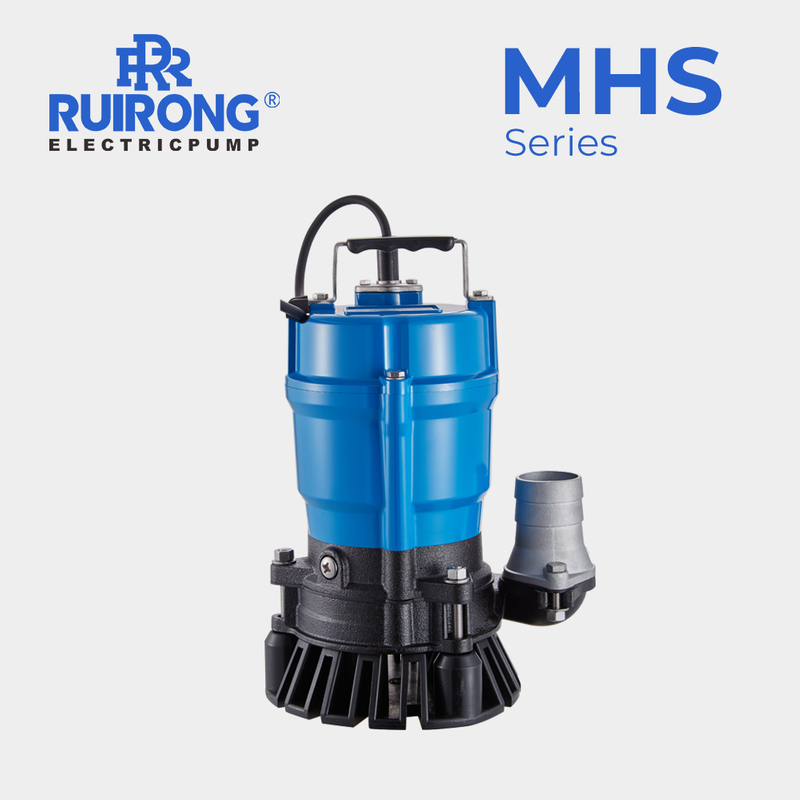

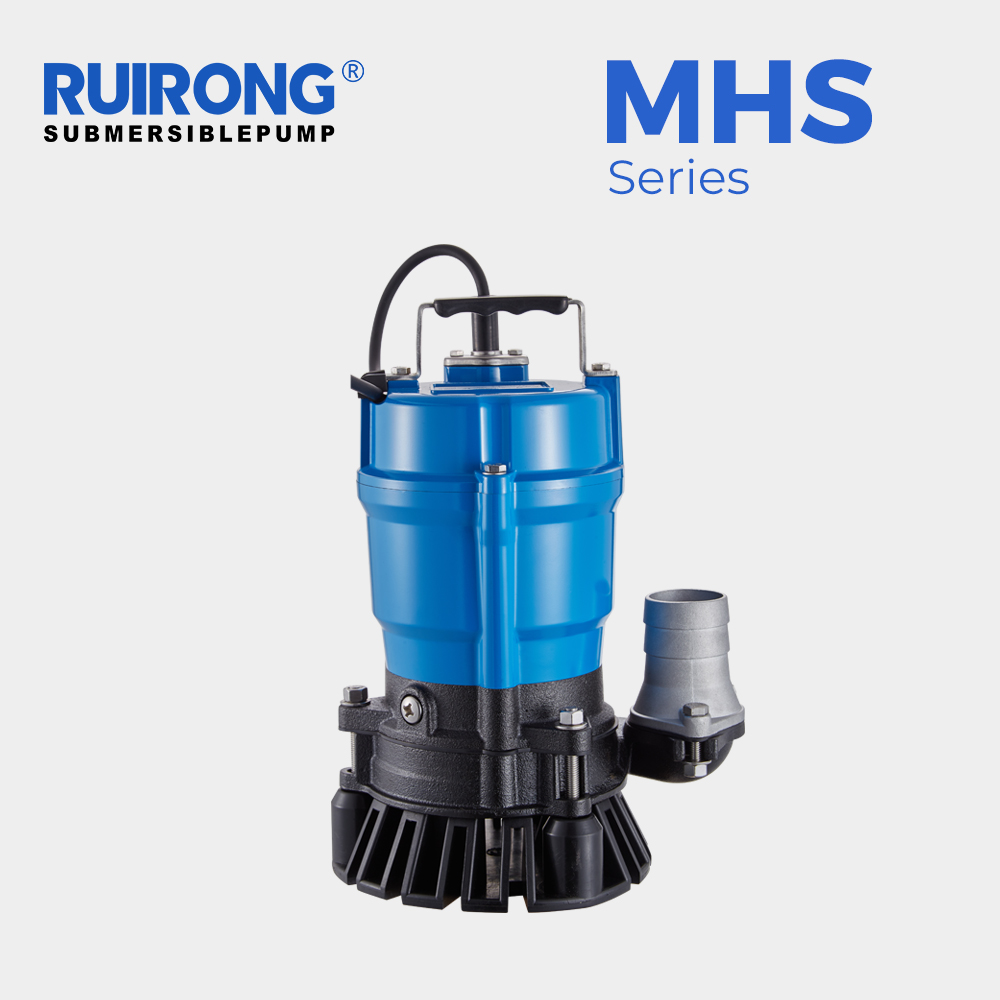

The MHS series adopts an external side drain port design to improve the solid matter suction efficiency, combined with the "high clearance structure", it effectively reduces the risk of impeller locking caused by foreign matter such as gravel. The pump shaft extension line is equipped with a stirring impeller, which has a dual function to prevent air plugging in the casing and reduce the problem of solid matter suction blockage, ensuring stable and efficient operation.
Suited for general pumping and drainage, slurries, residues and household uses.

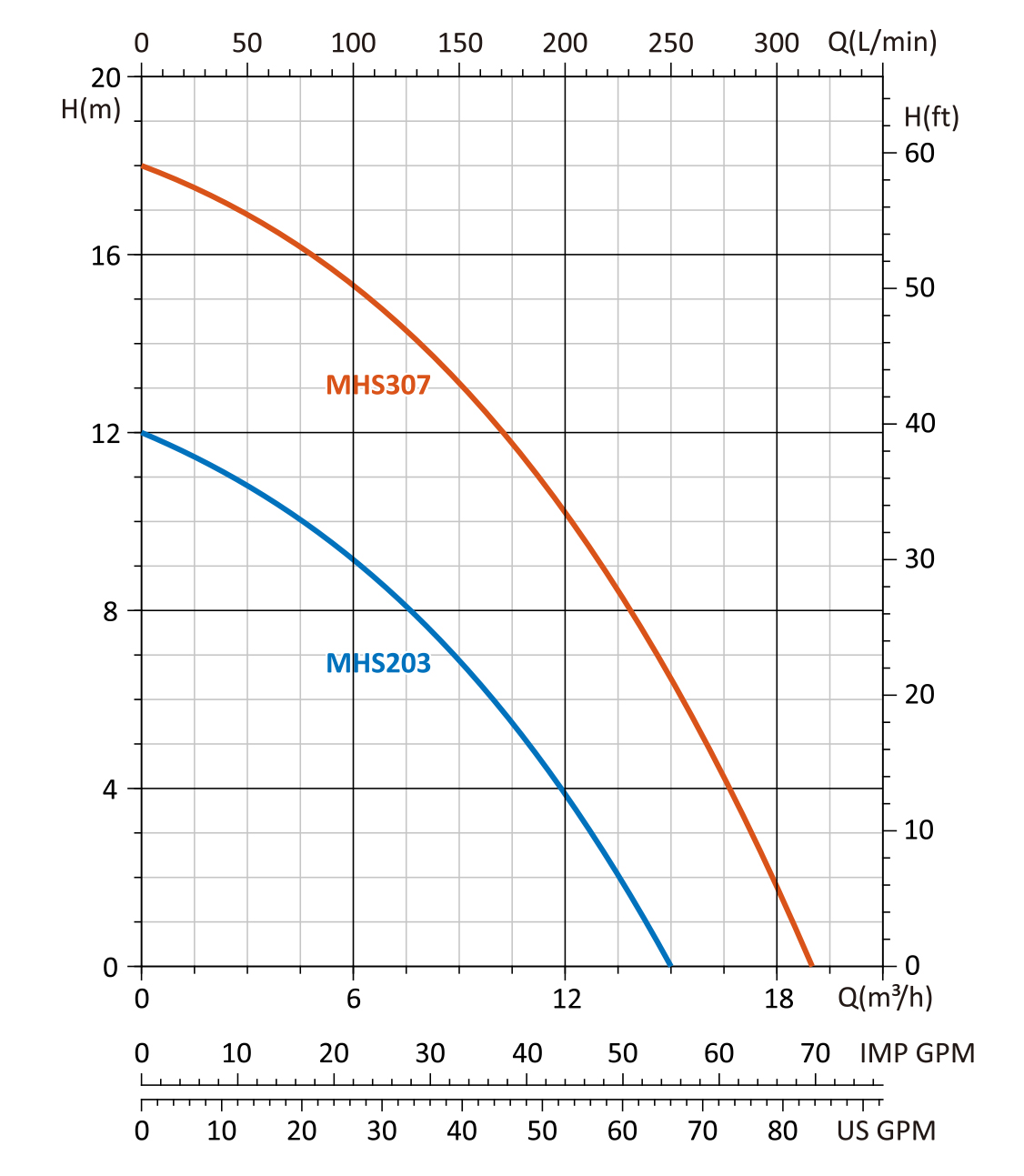

Model 50Hz | Power | Voltage | Rotation | Max Flow | Max Head | Outlet | Max Particle | |
| W | HP | V | P/rpm | m³/h | m | mm | mm | |
| MHS203 | 370 | 0.5 | 220/380 | 2P/2850 | 15 | 12 | 50 | 7 |
| MHS307 | 750 | 1 | 220/380 | 2P/2850 | 19 | 18 | 80(50) | 7 |
The MHS series adopts an external side drain port design to improve the solid matter suction efficiency, combined with the "high clearance structure", it effectively reduces the risk of impeller locking caused by foreign matter such as gravel. The pump shaft extension line is equipped with a stirring impeller, which has a dual function to prevent air plugging in the casing and reduce the problem of solid matter suction blockage, ensuring stable and efficient operation.
Suited for general pumping and drainage, slurries, residues and household uses.
Model 50Hz | Power | Voltage | Rotation | Max Flow | Max Head | Outlet | Max Particle | |
| W | HP | V | P/rpm | m³/h | m | mm | mm | |
| MHS203 | 370 | 0.5 | 220/380 | 2P/2850 | 15 | 12 | 50 | 7 |
| MHS307 | 750 | 1 | 220/380 | 2P/2850 | 19 | 18 | 80(50) | 7 |
