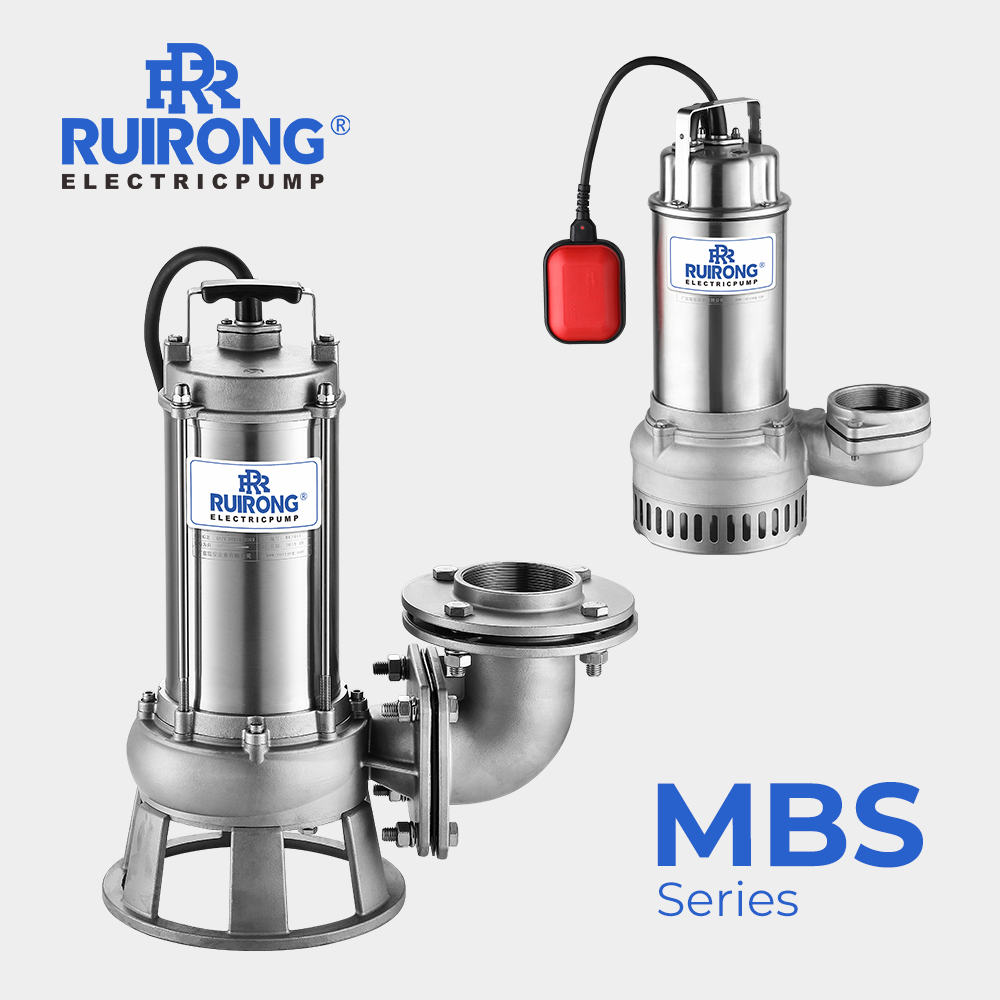

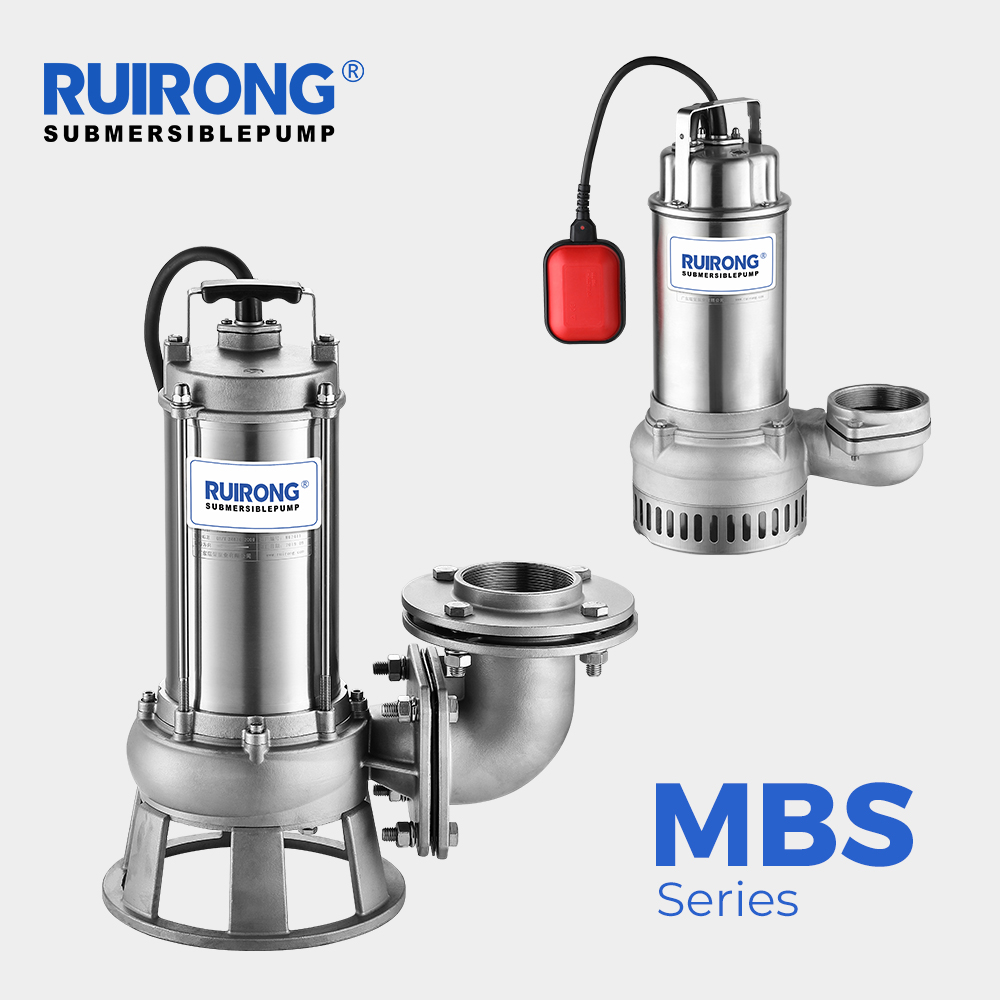

MBS
RUIRONG
1. AISI304 motor shell,impeller,diffuser,strainer,and nuts.Shaft in 316L special material.
2. Italian double face mechanical seal, AC over-heat protector inside.
3. Integrated plug, good water proof.
4. Good appearance, small and light, easy to use and maintain.
Ideal for workplaces with high water quality demands, such as fountains, aquarium fish cultivation, and industrial wastewater management. Particularly effective for treating and draining industrial acid or alkaline wastewater.
Model 50Hz | Power | Voltage | Rotation | Max Flow | Max Head | Outlet | Max Particle | Weight | |
| kW | HP | V | P/rpm | m³/h | m | mm | mm | kg | |
| MBS203 | 0.37 | 0.5 | 220/380 | 2P/2850 | 13 | 11 | 50 | 6.8 | 12.1 |
| MBS205 | 0.55 | 0.75 | 220/380 | 2P/2850 | 16 | 12.5 | 50 | 6.8 | 13.2 |
| MBS207 | 0.75 | 1 | 220/380 | 2P/2850 | 36 | 10 | 50 | 5.5/7 | 18 |
| MBS211 | 1.1 | 1.5 | 220/380 | 2P/2850 | 40 | 12 | 50 | 5.5/7 | 19.3 |
| MBS315 | 1.5 | 2 | 220/380 | 2P/2850 | 60 | 14 | 75 | 8 | 23.1 |
| MBS322 | 2.2 | 3 | 380 | 2P/2850 | 75 | 16 | 75 | 8 | 30.9 |
| MBS337 | 3.7 | 5 | 380 | 2P/2850 | 70 | 27 | 75 | 10 | - |
| MBS355 | 5.5 | 7.5 | 380 | 2P/2850 | 75 | 33 | 75 | 10 | - |
| MBS475 | 7.5 | 10 | 380 | 2P/2850 | 96 | 36 | 100 | 12 | - |
1. AISI304 motor shell,impeller,diffuser,strainer,and nuts.Shaft in 316L special material.
2. Italian double face mechanical seal, AC over-heat protector inside.
3. Integrated plug, good water proof.
4. Good appearance, small and light, easy to use and maintain.
Ideal for workplaces with high water quality demands, such as fountains, aquarium fish cultivation, and industrial wastewater management. Particularly effective for treating and draining industrial acid or alkaline wastewater.
Model 50Hz | Power | Voltage | Rotation | Max Flow | Max Head | Outlet | Max Particle | Weight | |
| kW | HP | V | P/rpm | m³/h | m | mm | mm | kg | |
| MBS203 | 0.37 | 0.5 | 220/380 | 2P/2850 | 13 | 11 | 50 | 6.8 | 12.1 |
| MBS205 | 0.55 | 0.75 | 220/380 | 2P/2850 | 16 | 12.5 | 50 | 6.8 | 13.2 |
| MBS207 | 0.75 | 1 | 220/380 | 2P/2850 | 36 | 10 | 50 | 5.5/7 | 18 |
| MBS211 | 1.1 | 1.5 | 220/380 | 2P/2850 | 40 | 12 | 50 | 5.5/7 | 19.3 |
| MBS315 | 1.5 | 2 | 220/380 | 2P/2850 | 60 | 14 | 75 | 8 | 23.1 |
| MBS322 | 2.2 | 3 | 380 | 2P/2850 | 75 | 16 | 75 | 8 | 30.9 |
| MBS337 | 3.7 | 5 | 380 | 2P/2850 | 70 | 27 | 75 | 10 | - |
| MBS355 | 5.5 | 7.5 | 380 | 2P/2850 | 75 | 33 | 75 | 10 | - |
| MBS475 | 7.5 | 10 | 380 | 2P/2850 | 96 | 36 | 100 | 12 | - |
