RWQ
RUIRONG

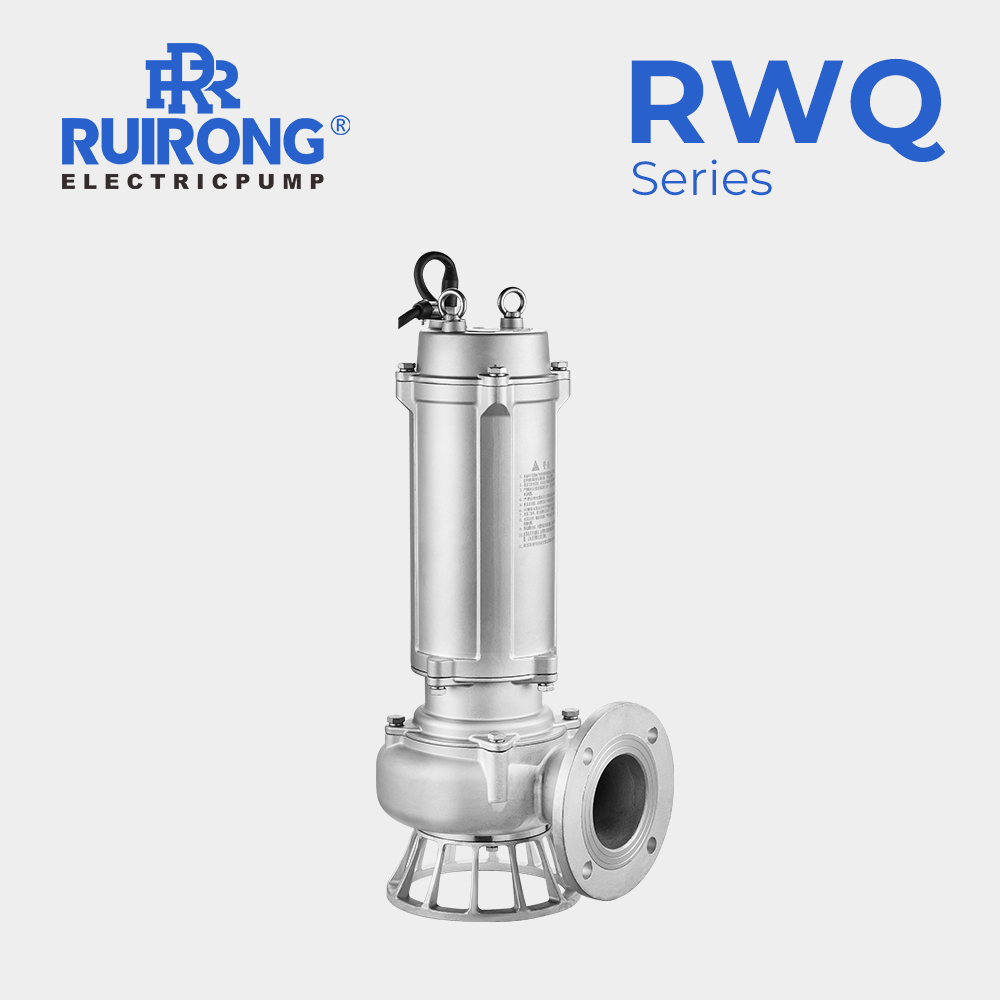

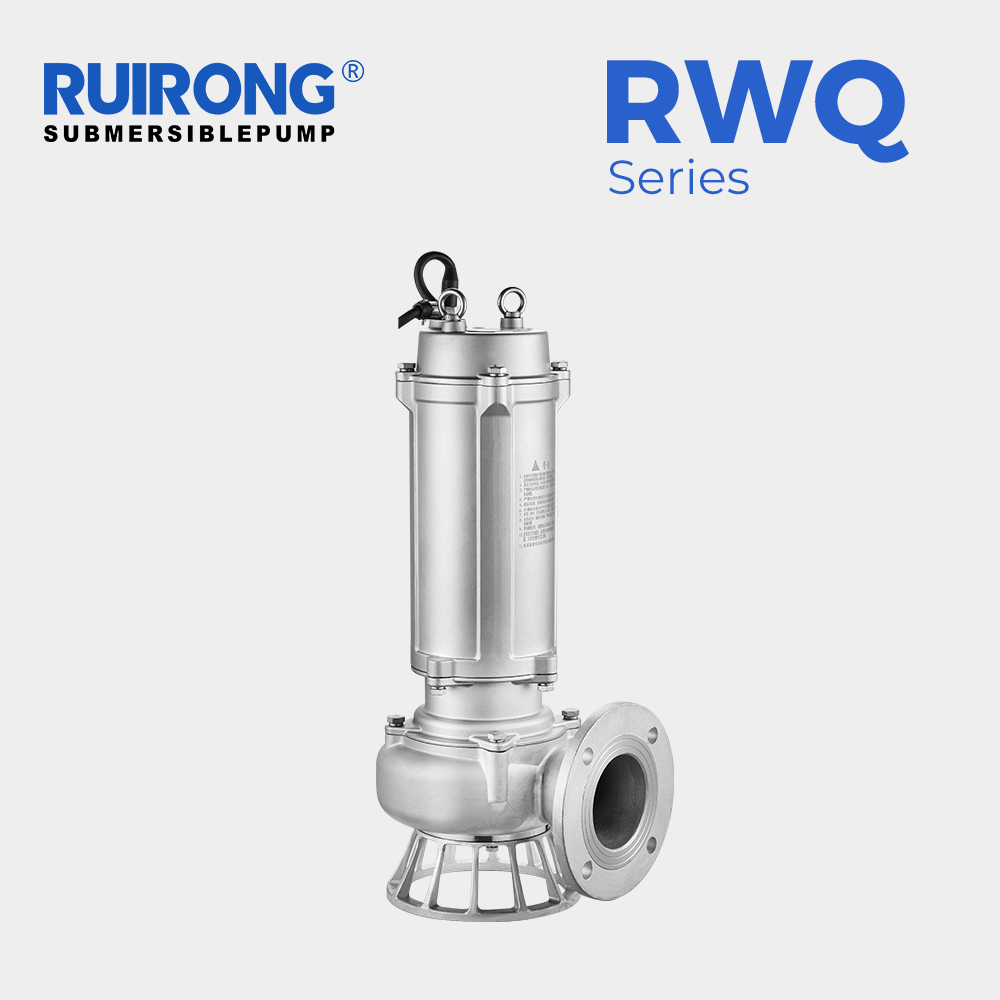

1. With stainless steel casting casing, high head, large flow rate, corrosion-resistant, environment friendly.
2. VITON double mechanical seal in oil chamber, single mechanical seal in outer chamber, which minimize the Seal problem because of friction between skeleton oil seal and shaft.
3. Motor uses high temperature wire, F grade insulation, with thermal protector, which prolong the pump's service life.
4. For high-temperature liquid, corrosion resistant cable, TEFLON mechanical seal can be choosed.
Buildings, hospitals, residence, municipal works, traffic construction, factories, cultivation, pharmacy, beverage, seawater, saltwater, long fiber sewage, etc.
1. Convey liquid that can‘t cause obvious corrosion to 304 or 316 materials
2. Medium temperature: +40°C
3. Based on the center of the impeller, the diving depth shall not exceed 5m
4. PH value 304 (4-10) and 316 (4-13) of the conveying medium
5. The kinematic viscosity of the conveying medium is 7X10-7 ~ 23X10-6 m2/S
