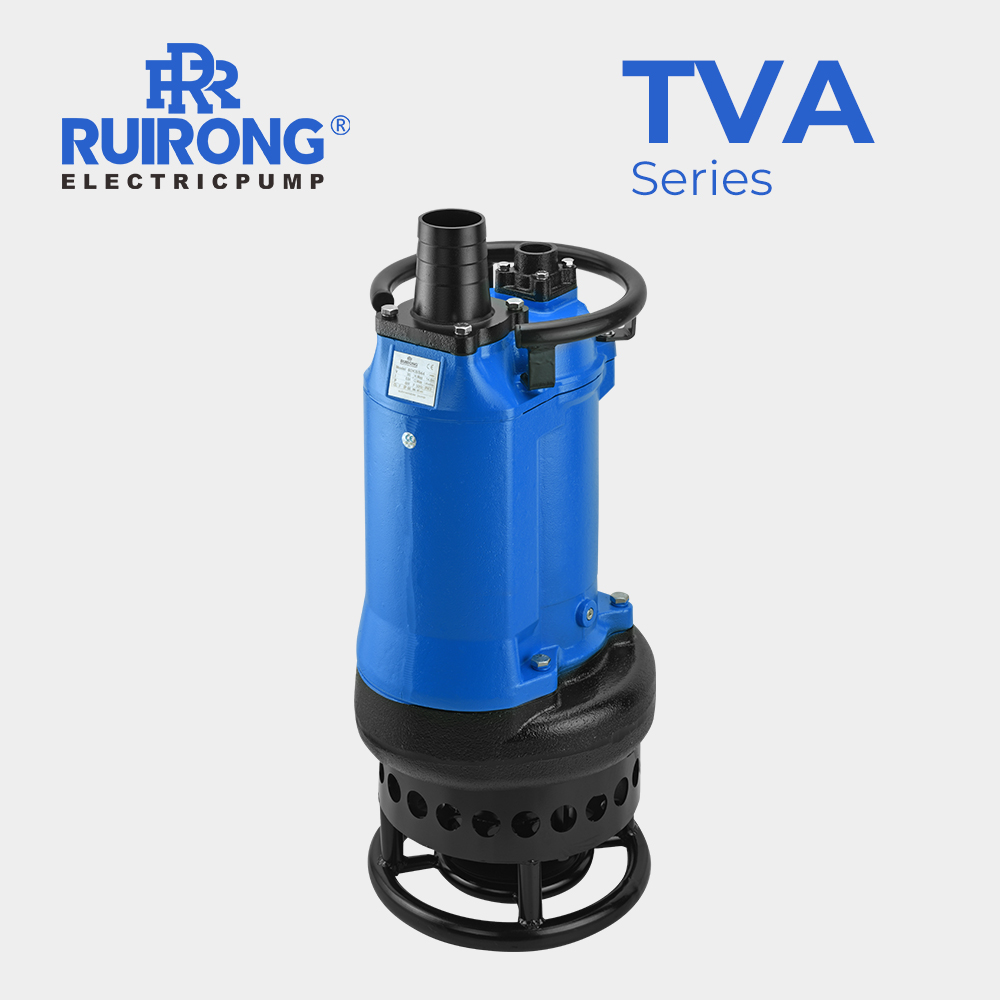

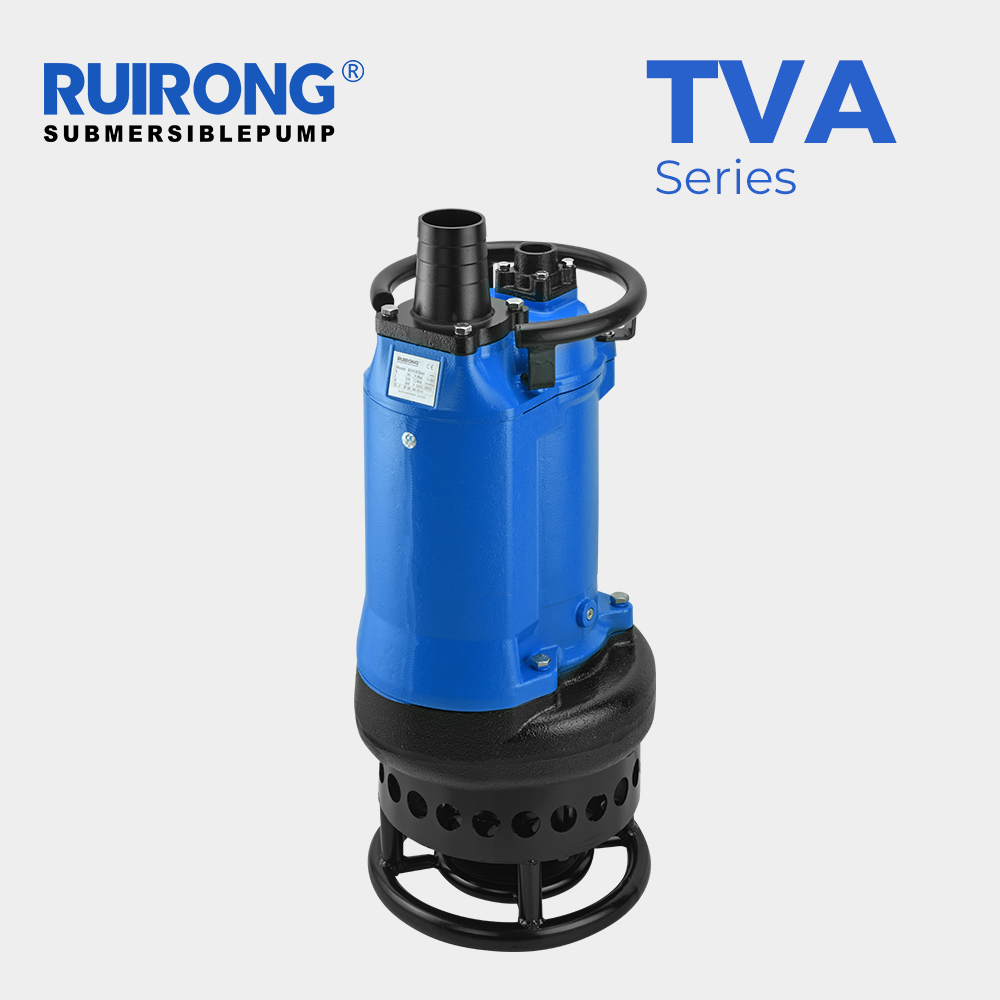

TVA
RUIRONG
The cast iron construction of our TVA series extends pump life by preventing premature wear and failure from the abrasive materials found in mining and construction applications. Available in a variety of discharge sizes and horsepower, the TVA pumps are engineered to withstand even the most rigorous situations.
4 pole, 1800 rpm motors reduce impeller tip speed and extend parts wear life.
High chrome alloy impeller combined with agitator for pumping heavy slurry.
Insulation class: F
Protection class: lP68
Cable length: 8m, other length optional
Water temperature: up to 40°C
Max immersion depth: 15m
Capacity: up to 372 m3/h
Head: up to 32 meters
Discharge: 80mm (3") to 200mm (8")
Power: 4kW (5.5HP) to 22kW (30HP)
Power supply: three phase 380V±10%, 50HZ; 380V±10%, 60HZ
Civel engineering
Mines, quarries, coal ore & slurries
Sewage treatment plants
General pumping purposes
Pumping fluid: sludge, liquids-containing mud and bentonite
Other voltages
The length of cable is optional
| Model (50/60Hz) | Outlet | Motor Power | Starting Method | Rated Current | Rated Capacity | Rated Head | Max Capacity | Max Head | Impeller Passage | |||
| mm | kW | HP | A | m3/h | m3/min | m | m3/h | m3/min | m | mm | ||
| 80TVA44 | 80 | 4 | 5.5 | D.O.L | 10.2 | 60 | 1 | 10 | 99 | 1.65 | 14.8 | 30 |
| 100TVA46 | 100 | 6 | 8 | D.O.L | 13.8 | 90 | 1.5 | 10 | 144 | 2.4 | 16.9 | 30 |
| 150TVA49 | 150 | 9 | 12 | D.O.L | 19.5 | 100 | 1.67 | 15 | 192 | 3.2 | 21.5 | 30 |
| 200TVA415 | 200 | 15 | 20 | D.O.L | 30.1 | 200 | 3.33 | 16 | 372 | 6.2 | 22 | 30 |
| 200TVA422 | 200 | 22 | 30 | D.O.L | 42 | 200 | 3.33 | 24 | 360 | 6 | 32 | 30 |
