| Quantity: | |
|---|---|

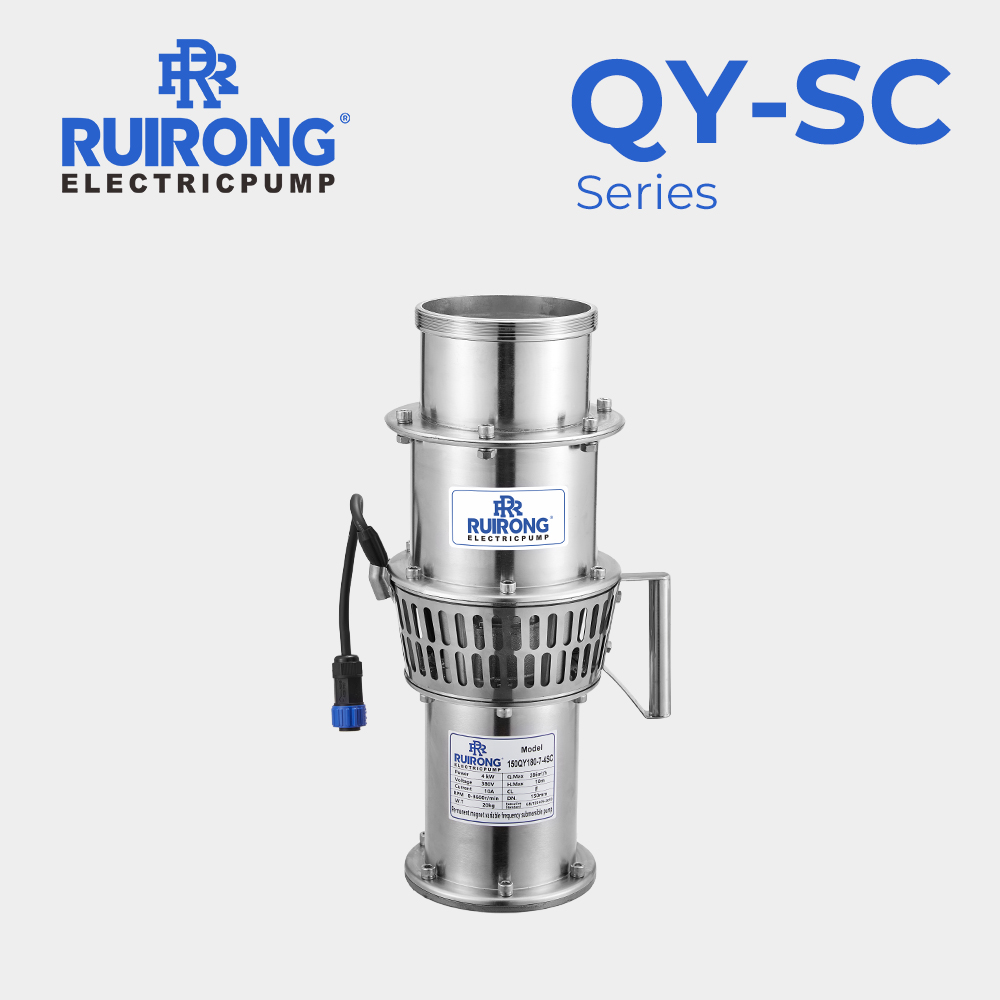

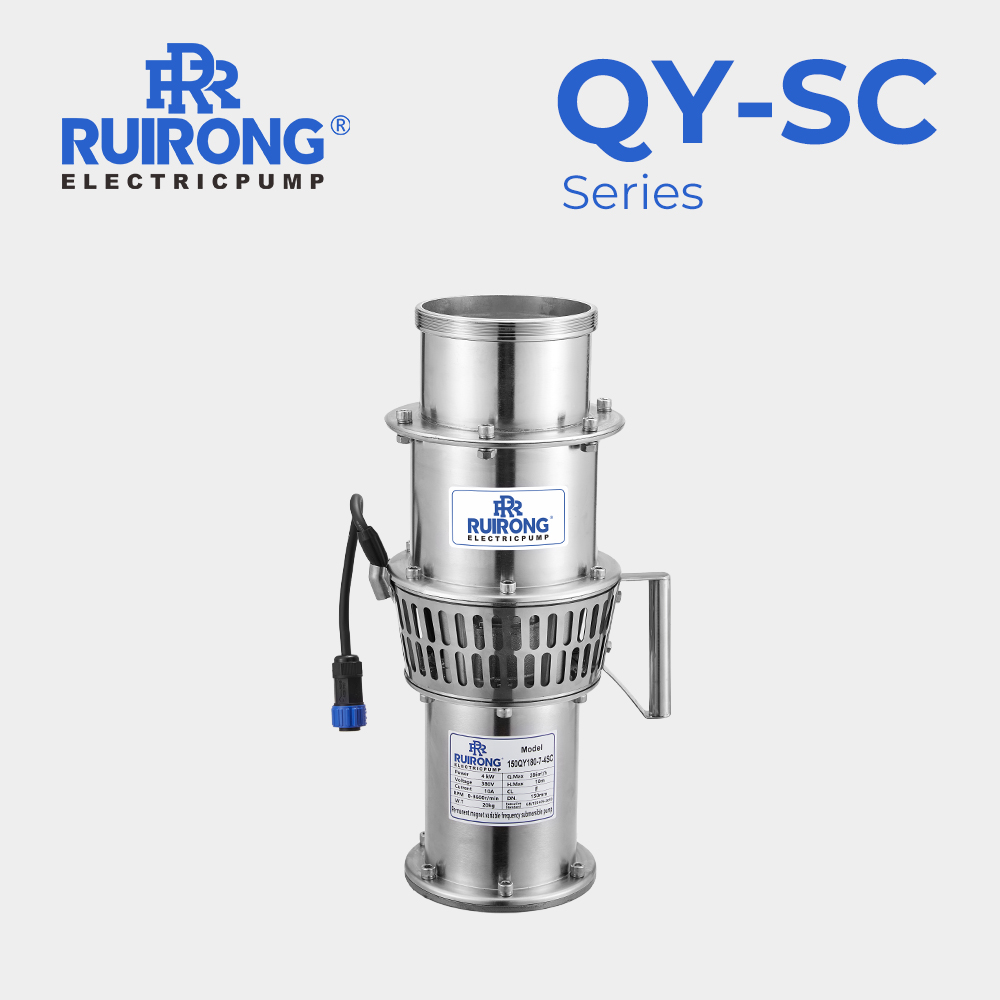

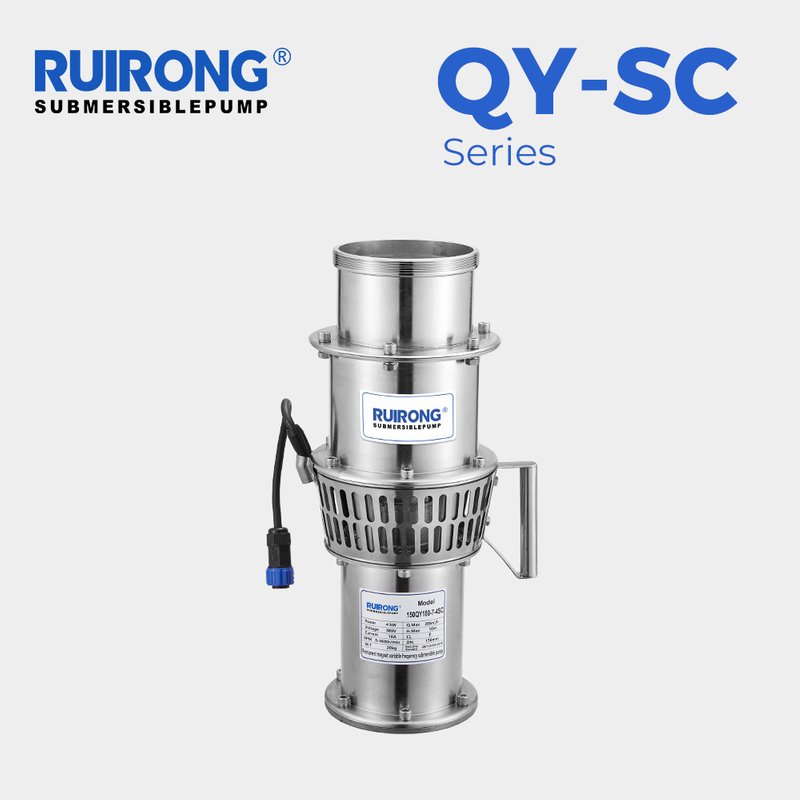

QY-SC
RUIRONG
Lightweight Dexterous
Highly Efficient Energy Conservation
Flexible Start And Stop
Water Scarcity Protection
Phase-loss Protection
Stall Protection
Overload Protection
Low-pressure Operation
Self-controlled Speed
It is suitable for water supply and drainage places such as irrigation, breeding, planting, industry and mining, municipal water conservancy, drought resistance and flood drainage.
Model 50Hz | Power | Voltage | Current | Rated Flow | Rated Head | Max Flow | Max Head | Outlet | |
| kW | HP | V | A | m³/h | m | m³/h | m | mm | |
| 100QY(D)80-10-3SC | 3 | 4 | 220/380 | 14/8.5 | 80 | 10 | 120 | 19 | 100 |
| 100QY(D)80-15-4SC | 4 | 5.5 | 220/380 | 17/10 | 80 | 15 | 125 | 23 | 100 |
| 150QY(D)180-5-3SC | 3 | 4 | 220/380 | 14/8.5 | 180 | 5 | 236 | 8 | 150 |
| 150QY(D)180-7-4SC | 4 | 5.5 | 220/380 | 17/10 | 180 | 7 | 286 | 10 | 150 |
| 150QY180-9-5.5SC | 5.5 | 7.5 | 380 | 13.5 | 180 | 9 | 292 | 13 | 150 |
| 150QY220-9-7.5SC | 7.5 | 10 | 380 | 16 | 220 | 9 | 337 | 12 | 150 |
| 200QY260-6-5.5SC | 5.5 | 7.5 | 380 | 13.5 | 260 | 6 | 345 | 9 | 200 |
| 200QY260-8-7.5SC | 7.5 | 10 | 380 | 16 | 260 | 8 | 348 | 11 | 200 |
Lightweight Dexterous
Highly Efficient Energy Conservation
Flexible Start And Stop
Water Scarcity Protection
Phase-loss Protection
Stall Protection
Overload Protection
Low-pressure Operation
Self-controlled Speed
It is suitable for water supply and drainage places such as irrigation, breeding, planting, industry and mining, municipal water conservancy, drought resistance and flood drainage.
Model 50Hz | Power | Voltage | Current | Rated Flow | Rated Head | Max Flow | Max Head | Outlet | |
| kW | HP | V | A | m³/h | m | m³/h | m | mm | |
| 100QY(D)80-10-3SC | 3 | 4 | 220/380 | 14/8.5 | 80 | 10 | 120 | 19 | 100 |
| 100QY(D)80-15-4SC | 4 | 5.5 | 220/380 | 17/10 | 80 | 15 | 125 | 23 | 100 |
| 150QY(D)180-5-3SC | 3 | 4 | 220/380 | 14/8.5 | 180 | 5 | 236 | 8 | 150 |
| 150QY(D)180-7-4SC | 4 | 5.5 | 220/380 | 17/10 | 180 | 7 | 286 | 10 | 150 |
| 150QY180-9-5.5SC | 5.5 | 7.5 | 380 | 13.5 | 180 | 9 | 292 | 13 | 150 |
| 150QY220-9-7.5SC | 7.5 | 10 | 380 | 16 | 220 | 9 | 337 | 12 | 150 |
| 200QY260-6-5.5SC | 5.5 | 7.5 | 380 | 13.5 | 260 | 6 | 345 | 9 | 200 |
| 200QY260-8-7.5SC | 7.5 | 10 | 380 | 16 | 260 | 8 | 348 | 11 | 200 |
