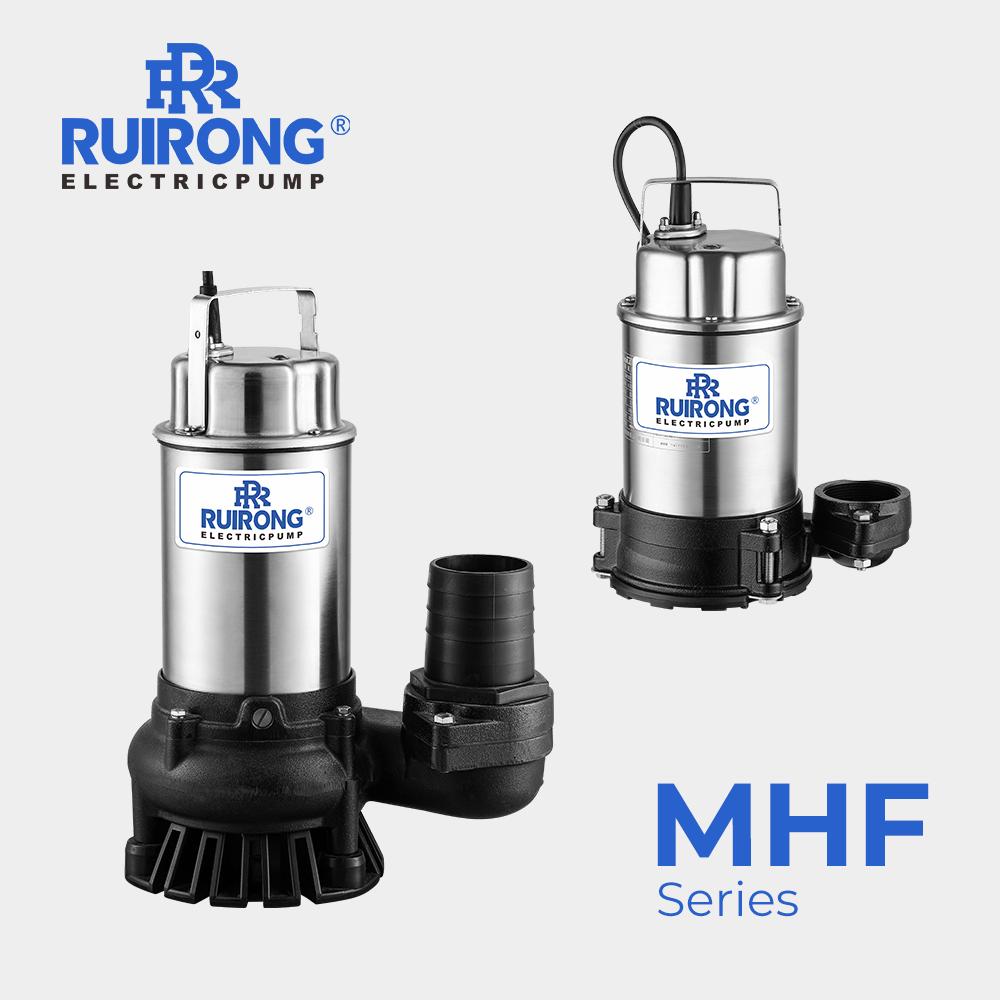

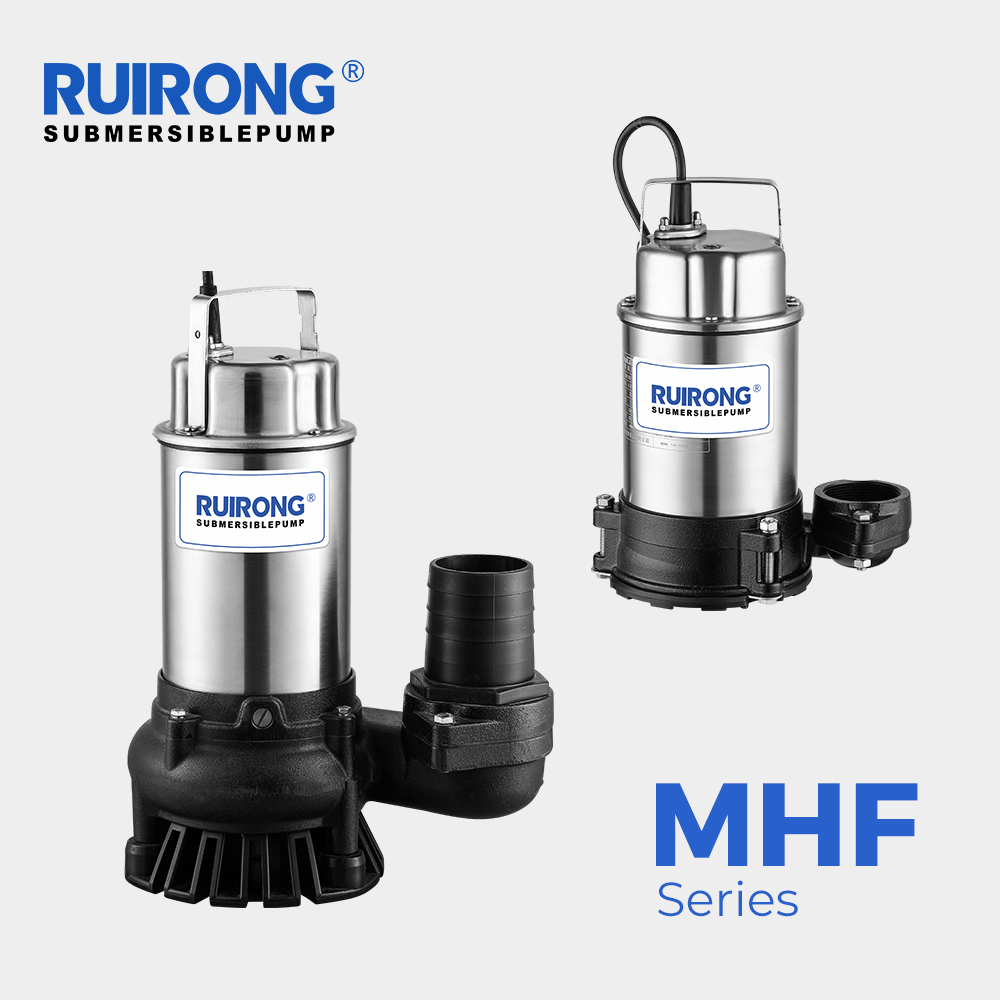

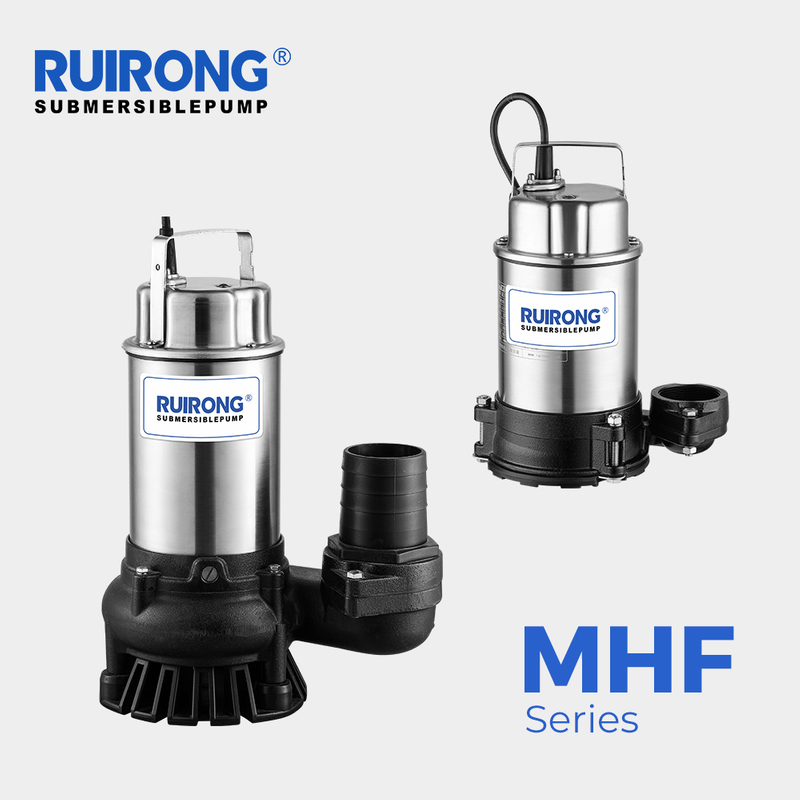

MHF
RUIRONG
1. The pump operates efficiently with a minimum water level of just 8mm.
2. Features an Italian double mechanical seal and an internal AC overheat protector for added safety.
3. Constructed with a durable AISI304 motor shell, upper cover, strainer, shaft, and nuts.
4. Designed with a sleek and compact appearance, this pump is both lightweight and user-friendly, making it easy to use and maintain.
Efficiently manage low water levels in rainwater systems, remove excess water from basements, factories, and construction sites, handle wastewater removal, and recycle landscape water. Ideal for home use and industrial settings.
Model 50Hz | Power | Voltage | Rotation | Max Flow | Max Head | Outlet | Max Particle | Weight | |
| kW | HP | V | P/rpm | m³/h | m | mm | mm | kg | |
| MHF203L | 0.37 | 0.5 | 220 | 2P/2850 | 11 | 10 | 40/50 | 3.5 | 7.6 |
| MHF205L | 0.55 | 0.75 | 220 | 2P/2850 | 15 | 12 | 40/50 | 3.5 | 12.8 |
Model 50Hz | Power | Voltage | Rotation | Max Flow | Max Head | Outlet | Max Particle | Weight | |
| kW | HP | V | P/rpm | m³/h | m | mm | mm | kg | |
| MHF203H | 0.37 | 0.5 | 220 | 2P/2850 | 12 | 11 | 50 | 7 | 7.6 |
| MHF203H | 0.55 | 0.75 | 220 | 2P/2850 | 15 | 12 | 50 | 7 | 12.8 |
| MHF307H | 0.75 | 1 | 220/380 | 2P/2850 | 42 | 10 | 75 | 7 | 20 |
1. The pump operates efficiently with a minimum water level of just 8mm.
2. Features an Italian double mechanical seal and an internal AC overheat protector for added safety.
3. Constructed with a durable AISI304 motor shell, upper cover, strainer, shaft, and nuts.
4. Designed with a sleek and compact appearance, this pump is both lightweight and user-friendly, making it easy to use and maintain.
Efficiently manage low water levels in rainwater systems, remove excess water from basements, factories, and construction sites, handle wastewater removal, and recycle landscape water. Ideal for home use and industrial settings.
Model 50Hz | Power | Voltage | Rotation | Max Flow | Max Head | Outlet | Max Particle | Weight | |
| kW | HP | V | P/rpm | m³/h | m | mm | mm | kg | |
| MHF203L | 0.37 | 0.5 | 220 | 2P/2850 | 11 | 10 | 40/50 | 3.5 | 7.6 |
| MHF205L | 0.55 | 0.75 | 220 | 2P/2850 | 15 | 12 | 40/50 | 3.5 | 12.8 |
Model 50Hz | Power | Voltage | Rotation | Max Flow | Max Head | Outlet | Max Particle | Weight | |
| kW | HP | V | P/rpm | m³/h | m | mm | mm | kg | |
| MHF203H | 0.37 | 0.5 | 220 | 2P/2850 | 12 | 11 | 50 | 7 | 7.6 |
| MHF203H | 0.55 | 0.75 | 220 | 2P/2850 | 15 | 12 | 50 | 7 | 12.8 |
| MHF307H | 0.75 | 1 | 220/380 | 2P/2850 | 42 | 10 | 75 | 7 | 20 |
