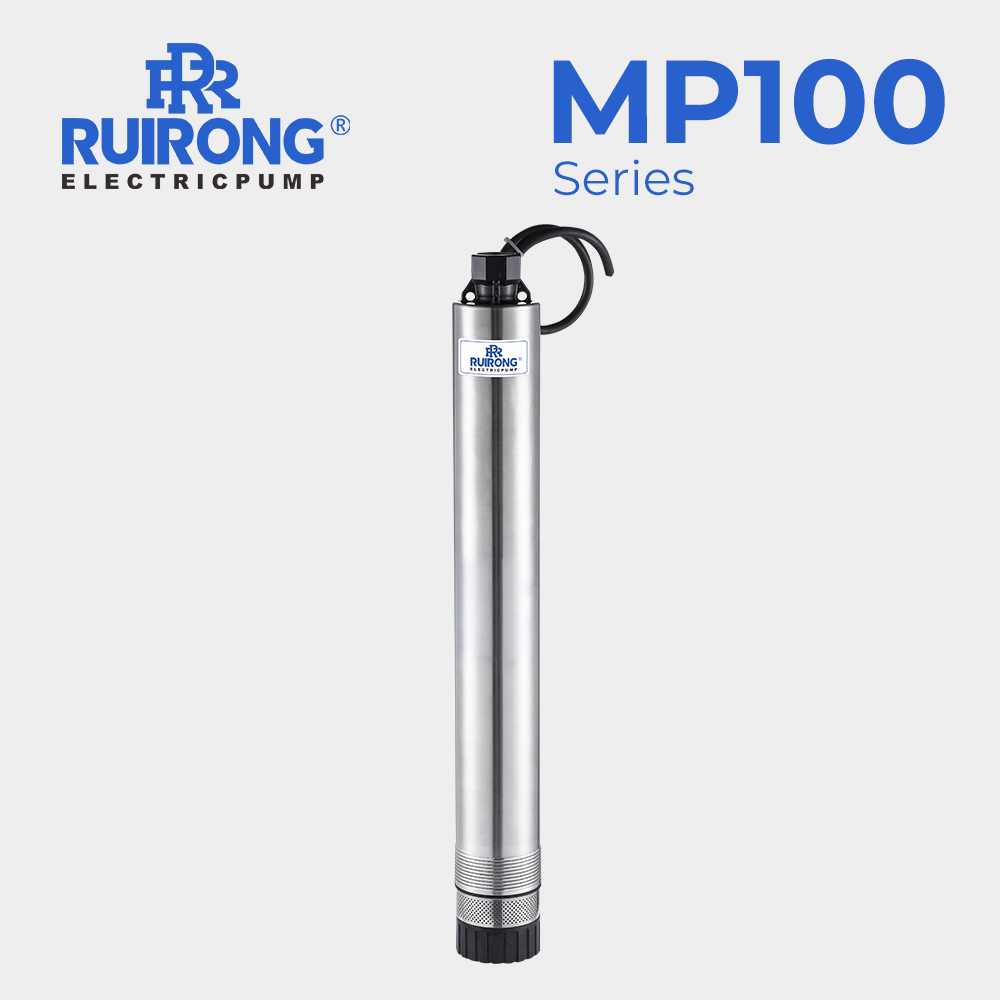

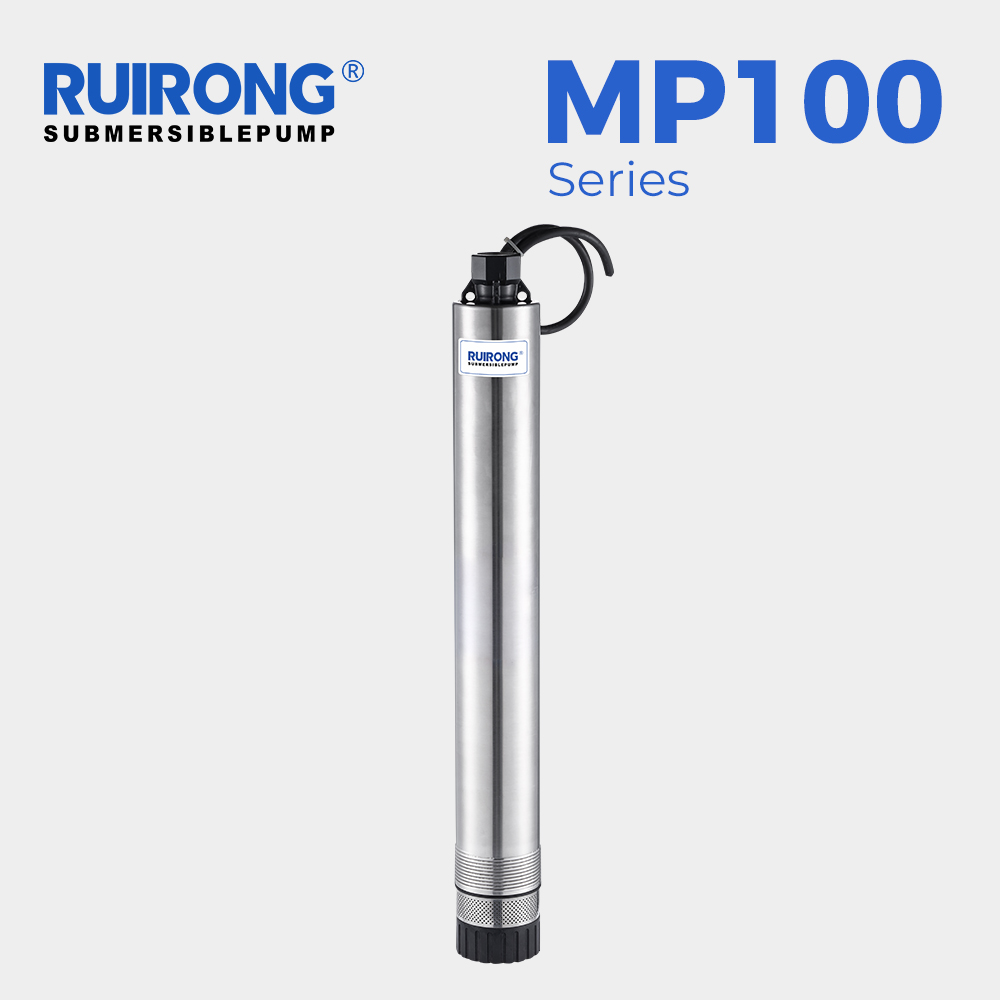

MP100
RUIRONG
1. Durable Stainless Steel Shell: Attractive Design & Simplistic Structure
2. Enhanced Durability: High Head, Low Flow, & Energy-Efficient
3. Advanced Safety Features: Single-Phase Motor with Built-In Overheating Protection
This equipment is primarily used for pumping groundwater, as well as fresh water from lakes and rivers. It is ideal for various applications, including agricultural irrigation, livestock breeding, and supplying clean drinking water for daily use.
Model Single Phase | Mode Three Phase | Motor Power | SinglePhase | Three Phase | Q | Capacity | Outlet | ||||||||||
| m³/h | 0 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | |||||||||
| L/min | 0 | 8 | 17 | 25 | 33 | 42 | 50 | 58 | |||||||||
| HP | kW | A | μF | VC | A | Total head in meters | |||||||||||
| MP100DT2-8 | MP100DT2-8T | 0.5 | 0.37 | 3.4 | 15 | 450 | - | H(m) | 55 | 55 | 55 | 51 | 46 | 38 | 28 | 18 | 30mm G1 1/4" |
| MP100DT2-12 | MP100DT2-12T | 0.75 | 0.55 | 4.6 | 20 | 450 | 1.8 | 80 | 80 | 80 | 75 | 66 | 54 | 39 | 24 | ||
Model Single Phase | Mode Three Phase | Motor Power | Single Phase | Three Phase | Q | Capacity | Outlet | ||||||||||
| m³/h | 0 | 1 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | |||||||||
| L/min | 0 | 17 | 33 | 42 | 50 | 58 | 67 | 75 | |||||||||
| HP | kW | A | μF | VC | A | Total head in meters | |||||||||||
| MP100DT3-5 | MP100DT3-5T | 0.5 | 0.37 | 3.4 | 15 | 450 | - | H(m) | 35 | 34 | 32 | 30 | 27 | 23 | 18 | 14 | 30mm G1 1/4" |
| MP100DT3-8 | MP100DT3-8T | 0.75 | 0.55 | 4.6 | 20 | 450 | 1.8 | 55 | 54 | 50 | 47 | 42 | 37 | 29 | 20 | ||
| MP100DT3-10 | MP100DT3-10T | 1 | 0.75 | 6 | 30 | 450 | 2.4 | 69 | 67 | 63 | 58 | 52 | 44 | 35 | 25 | ||
Model Single Phase | Mode Three Phase | Motor Power | Single Phase | Three Phase | Q | Capacity | Outlet | ||||||||||
| m³/h | 0 | 1 | 2 | 3 | 3.5 | 4 | 5 | 6 | |||||||||
| L/min | 0 | 17 | 33 | 50 | 58 | 67 | 83 | 100 | |||||||||
| HP | kW | A | μF | VC | A | Total head in meters | |||||||||||
| MP100DT4-4 | MP100DT4-4T | 0.5 | 0.37 | 3.4 | 15 | 450 | - | H(m) | 30 | 29 | 28 | 26 | 24 | 23 | 17 | 10 | 30mm G1 1/4" |
| MP100DT4-7 | MP100DT4-T | 0.75 | 0.55 | 4.6 | 20 | 450 | 1.8 | 49 | 47 | 46 | 43 | 39 | 36 | 27 | 16 | ||
| MP100DT4-9 | MP100DT4-9T | 1 | 0.75 | 6 | 30 | 450 | 2.4 | 63 | 60 | 59 | 54 | 50 | 46 | 36 | 20 | ||
1. Durable Stainless Steel Shell: Attractive Design & Simplistic Structure
2. Enhanced Durability: High Head, Low Flow, & Energy-Efficient
3. Advanced Safety Features: Single-Phase Motor with Built-In Overheating Protection
This equipment is primarily used for pumping groundwater, as well as fresh water from lakes and rivers. It is ideal for various applications, including agricultural irrigation, livestock breeding, and supplying clean drinking water for daily use.
