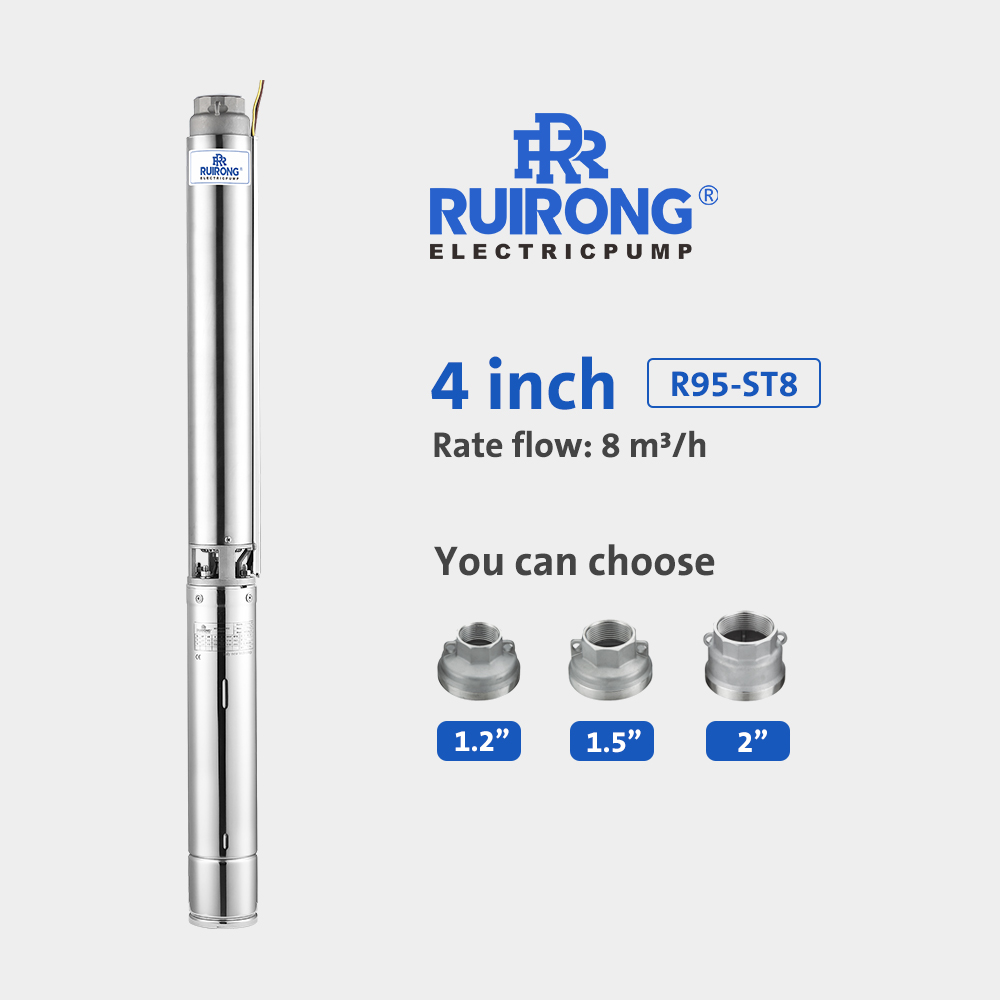

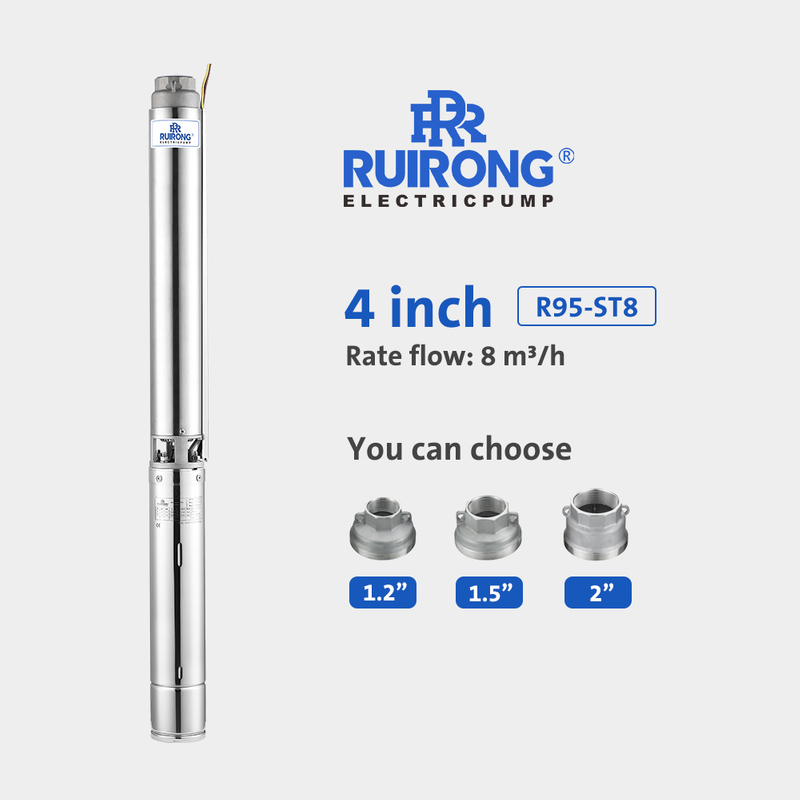

R95-ST8
RUIRONG
1. Utilize a robust stainless steel 304 pump tube with a thickness of 1.5mm, complemented by a stainless steel 304 diffuser and a durable stainless steel 304/316 pump head. This combination ensures high strength, aesthetic appeal, and long-lasting durability.
2. The innovative design of the multi-stage floating impeller significantly lowers the starting torque requirements and prevents blockages caused by small sand particles. This sand-resistant capability extends the motor's service life, offering enhanced performance and reliability.
Model 50Hz | Motor Power | Three Phase | Single Phase | Q | Capacity | ||||||||||
| US.gpm | 0 | 13.2 | 18.5 | 21.1 | 23.8 | 26.4 | 31.7 | 37 | |||||||
| m3/h | 0 | 3 | 4.2 | 4.8 | 5.4 | 6 | 7.2 | 8.4 | |||||||
| 380V | 220V | L/min | 0 | 50 | 70 | 80 | 90 | 100 | 120 | 140 | |||||
| HP | kW | A | A | μF | VC | Total head in meters | |||||||||
| R95-ST8-07 | 1 | 0.75 | 2.5 | 6.3 | 35 | 450 | H (m) | 42 | 36 | 32 | 30 | 28 | 25 | 19 | 11 |
| R95-ST8-10 | 1.5 | 1.1 | 3.4 | 8.6 | 45 | 450 | 62 | 53 | 48 | 45 | 41 | 38 | 29 | 18 | |
| R95-ST8-14 | 2 | 1.5 | 4.4 | 10 | 55 | 450 | 90 | 77 | 71 | 68 | 63 | 59 | 46 | 28 | |
| R95-ST8-20 | 3 | 2.2 | 6.2 | 14 | 70 | 450 | 125 | 107 | 97 | 92 | 86 | 80 | 62 | 40 | |
| R95-ST8-27 | 4 | 3 | 8.3 | 19.5 | 80 | 450 | 169 | 145 | 131 | 123 | 115 | 107 | 84 | 55 | |
| R95-ST8-34 | 5.5 | 4 | 10.3 | 27 | 120 | 450 | 208 | 178 | 162 | 153 | 143 | 132 | 103 | 66 | |
| R95-ST8-36 | 5.5 | 4 | 10.3 | 27 | 120 | 450 | 221 | 190 | 173 | 164 | 154 | 143 | 112 | 72 | |
| R95-ST8-49 | 7.5 | 5.5 | 14 | - | - | - | 302 | 257 | 234 | 222 | 209 | 193 | 151 | 96 | |
 | (Unit of Length: mm) | ||||||
| Model | H3 | H2 | H1 | ΦA | ΦB | Φmax | |
| R95-ST8-07 | 778 | 386 | 392 | G2" | 95 | 100 | |
| R95-ST8-10 | 890 | 406 | 484 | ||||
| R95-ST8-14 | 1049 | 441 | 608 | ||||
| R95-ST8-20 | 1333 | 501 | 832 | ||||
| R95-ST8-27 | 1647 | 561 | 1086 | ||||
| R95-ST8-34 | 1904 | 601 | 1303 | ||||
| R95-ST8-36 | 1966 | 601 | 1365 | ||||
| R95-ST8-49 | 2526 | 721 | 1805 | ||||
| Parts | Material | ||||||
| Delivery door | AISI304 | ||||||
| Suction support | AISI304 | ||||||
| Check value | AISI304 | ||||||
| Valve support | Plastic(PPO/PC) | ||||||
| Shaft support | Plastic(PPO/PC) | ||||||
| Impeller | Plastic(PPO) | ||||||
| Diffuser | AISI304 | ||||||
| Valve seal | Nitrile rubber(NBR) | ||||||
| Anti-wear washer | Nitrile rubber(NBR) | ||||||
| Pump bearing | Nitrile rubber(NBR) | ||||||
| Pump body | AISI 304 | ||||||
| Cable cover | AISI 304 | ||||||
| Filter | AISI 304 | ||||||
| Shaft | 2Cr13 | ||||||
| Shaft coupling | AISI 304 | ||||||
| Bushing | AISI 304 | ||||||
