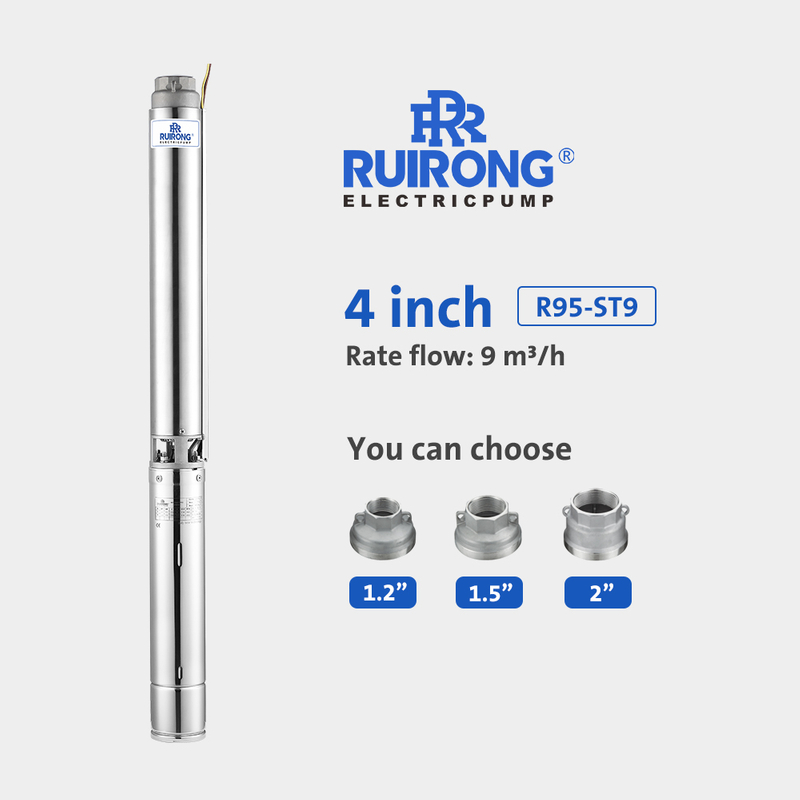

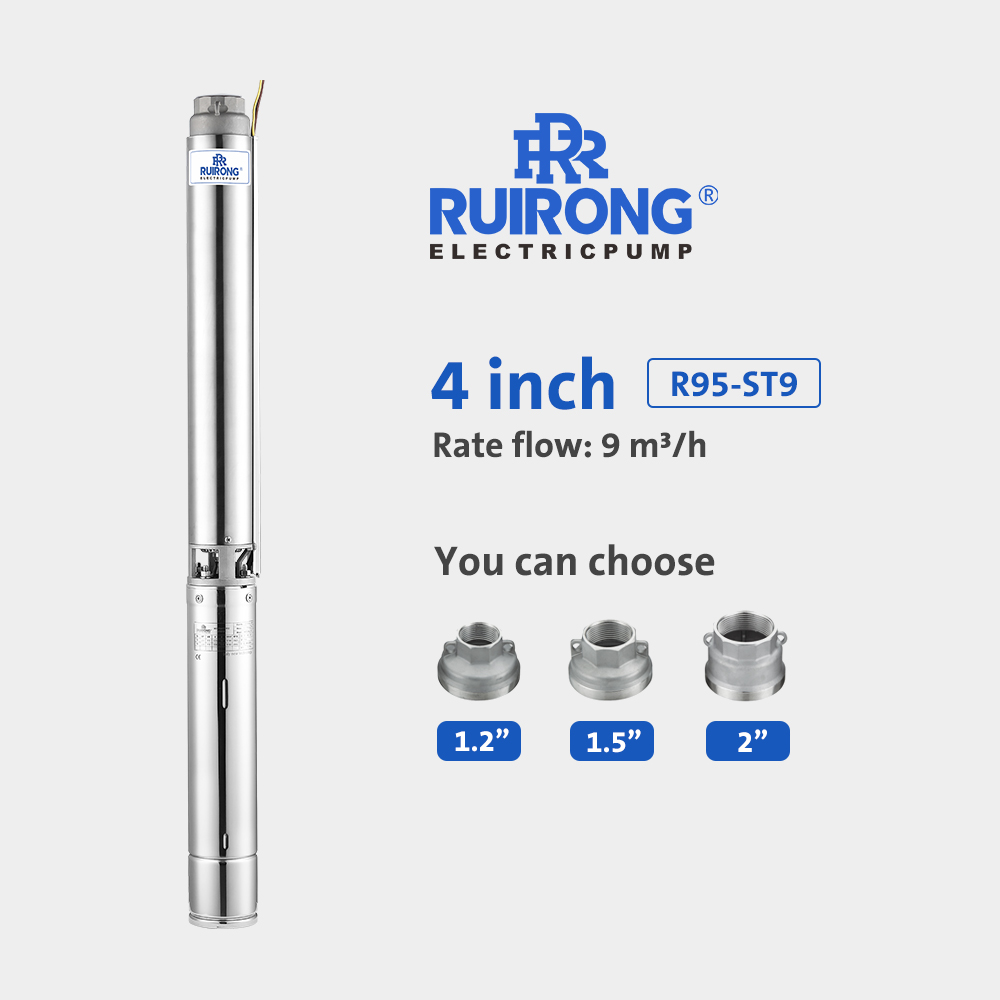

R95-ST9
RUIRONG
1. Utilize a robust stainless steel 304 pump tube with a thickness of 1.5mm, complemented by a stainless steel 304 diffuser and a durable stainless steel 304/316 pump head. This combination ensures high strength, aesthetic appeal, and long-lasting durability.
2. The innovative design of the multi-stage floating impeller significantly lowers the starting torque requirements and prevents blockages caused by small sand particles. This sand-resistant capability extends the motor's service life, offering enhanced performance and reliability.
Model 50Hz | Motor Power | Three Phase | Single Phase | Q | Capacity | ||||||||||
| US.gpm | 0 | 2.6 | 5.3 | 7.9 | 9.2 | 10.6 | 11.9 | 13.2 | |||||||
| m3/h | 0 | 0.6 | 1.2 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | |||||||
| 380V | 220V | L/min | 0 | 10 | 20 | 30 | 35 | 40 | 45 | 50 | |||||
| HP | kW | A | A | μF | VC | Total head in meters | |||||||||
| R95-ST9-04 | 1 | 0.75 | 2.5 | 6.3 | 35 | 450 | H (m) | 26 | 23 | 21 | 20 | 18 | 16 | 12 | 9 |
| R95-ST9-06 | 1.5 | 1.1 | 3.4 | 8.6 | 45 | 450 | 38 | 35 | 33 | 31 | 28 | 24 | 19 | 14 | |
| R95-ST9-08 | 2 | 1.5 | 4.4 | 10 | 55 | 450 | 52 | 47 | 44 | 41 | 37 | 31 | 25 | 18 | |
| R95-ST9-13 | 3 | 2.2 | 6.2 | 14 | 70 | 450 | 82 | 75 | 71 | 66 | 59 | 50 | 40 | 30 | |
| R95-ST9-17 | 4 | 3 | 8.3 | 19.5 | 80 | 450 | 108 | 98 | 94 | 87 | 79 | 70 | 58 | 46 | |
| R95-ST9-21 | 5.5 | 4 | 10.3 | 27 | 120 | 450 | 132 | 117 | 111 | 103 | 93 | 82 | 68 | 52 | |
| R95-ST9-23 | 5.5 | 4 | 10.3 | 27 | 120 | 450 | 148 | 134 | 127 | 118 | 108 | 95 | 79 | 60 | |
| R95-ST9-32 | 7.5 | 5.5 | 14 | - | - | - | 202 | 182 | 172 | 160 | 143 | 125 | 105 | 80 | |
| R95-ST9-43 | 10 | 7.5 | 18.5 | - | - | - | 271 | 244 | 231 | 215 | 192 | 168 | 141 | 107 | |
 | (Unit of Length: mm) | ||||||
| Model | H3 | H2 | H1 | ΦA | ΦB | Φmax | |
| R95-ST9-04 | 685 | 386 | 299 | G2" | 95 | 100 | |
| R95-ST9-06 | 767 | 406 | 361 | ||||
| R95-ST9-08 | 864 | 441 | 423 | ||||
| R95-ST9-13 | 1078 | 501 | 577 | ||||
| R95-ST9-17 | 1262 | 561 | 701 | ||||
| R95-ST9-21 | 1464 | 601 | 863 | ||||
| R95-ST9-23 | 1526 | 601 | 925 | ||||
| R95-ST9-32 | 1962 | 721 | 1241 | ||||
| R95-ST9-43 | 2422 | 841 | 1581 | ||||
| Parts | Material | ||||||
| Delivery door | AISI304 | ||||||
| Suction support | AISI304 | ||||||
| Check value | AISI304 | ||||||
| Valve support | Plastic(PPO/PC) | ||||||
| Shaft support | Plastic(PPO/PC) | ||||||
| Impeller | Plastic(PPO) | ||||||
| Diffuser | AISI304 | ||||||
| Valve seal | Nitrile rubber(NBR) | ||||||
| Anti-wear washer | Nitrile rubber(NBR) | ||||||
| Pump bearing | Nitrile rubber(NBR) | ||||||
| Pump body | AISI 304 | ||||||
| Cable cover | AISI 304 | ||||||
| Filter | AISI 304 | ||||||
| Shaft | 2Cr13 | ||||||
| Shaft coupling | AISI 304 | ||||||
| Bushing | AISI 304 | ||||||
