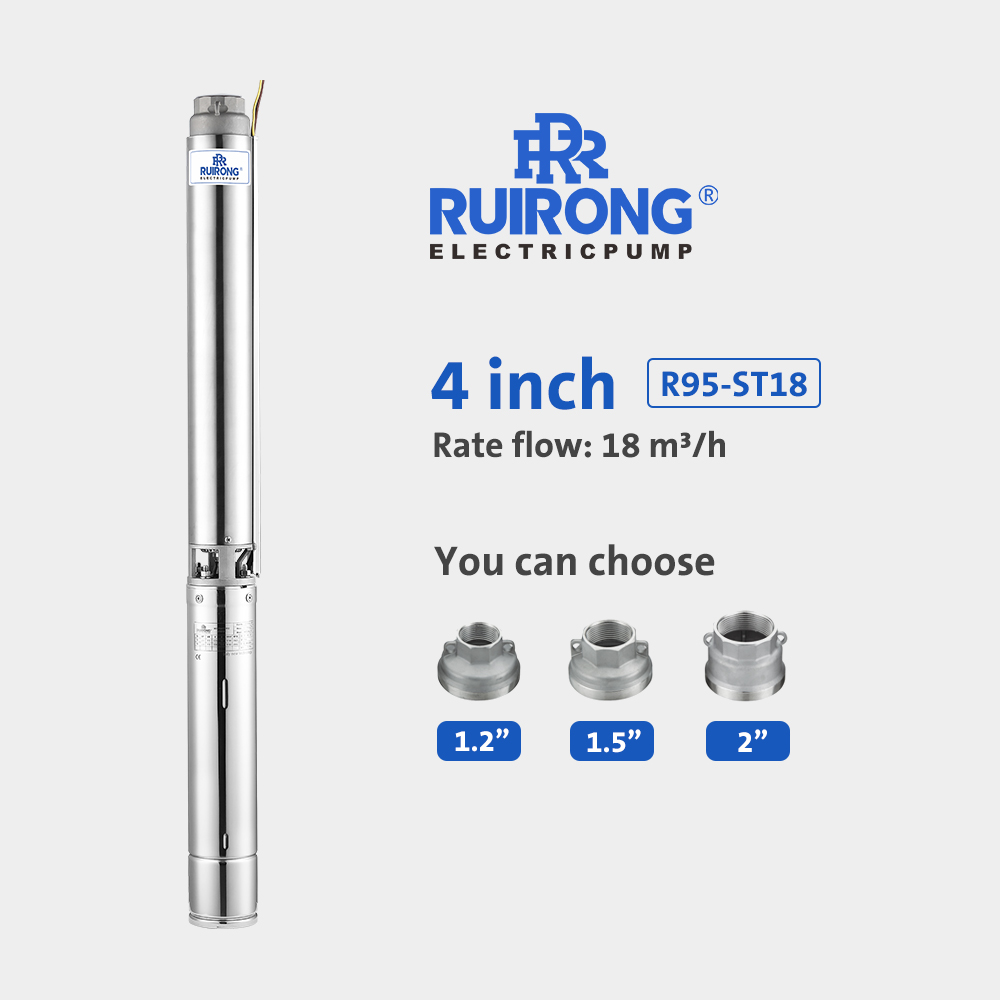

R95-ST18
RUIRONG
1. Utilize a robust stainless steel 304 pump tube with a thickness of 1.5mm, complemented by a stainless steel 304 diffuser and a durable stainless steel 304/316 pump head. This combination ensures high strength, aesthetic appeal, and long-lasting durability.
2. The innovative design of the multi-stage floating impeller significantly lowers the starting torque requirements and prevents blockages caused by small sand particles. This sand-resistant capability extends the motor's service life, offering enhanced performance and reliability.
Model 50Hz | Motor Power | Three Phase | Single Phase | Q | Capacity | ||||||||||
| US.gpm | 0 | 37 | 58.1 | 68.6 | 79.2 | 89.8 | 100.3 | 105.6 | |||||||
| m3/h | 0 | 8.4 | 13.2 | 15.6 | 18 | 20.4 | 22.8 | 24 | |||||||
| 380V | 220V | L/min | 0 | 140 | 220 | 260 | 300 | 340 | 380 | 400 | |||||
| HP | kW | A | A | μF | VC | Total head in meters | |||||||||
| R95-ST18-08 | 3 | 2.2 | 6.2 | 14 | 70 | 450 | H (m) | 49 | 39 | 32 | 28 | 23 | 18 | 12 | 9 |
| R95-ST18-11 | 4 | 3 | 8.3 | 19.5 | 80 | 450 | 67 | 55 | 45 | 39 | 33 | 27 | 20 | 16 | |
| R95-ST18-13 | 5.5 | 4 | 10.3 | 27 | 120 | 450 | 79 | 65 | 53 | 47 | 40 | 32 | 24 | 20 | |
| R95-ST18-15 | 5.5 | 4 | 10.3 | 27 | 120 | 450 | 93 | 76 | 62 | 55 | 47 | 39 | 29 | 25 | |
| R95-ST18-20 | 7.5 | 5.5 | 14 | - | - | - | 122 | 99 | 81 | 72 | 61 | 50 | 38 | 32 | |
| R95-ST18-27 | 10 | 7.5 | 18.5 | - | - | - | 165 | 133 | 109 | 97 | 82 | 67 | 51 | 43 | |
 | (Unit of Length: mm) | ||||||
| Model | H3 | H2 | H1 | ΦA | ΦB | Φmax | |
| R95-ST18-08 | 1210 | 501 | 709 | G2" | 95 | 100 | |
| R95-ST18-11 | 1508 | 561 | 947 | ||||
| R95-ST18-13 | 1681 | 601 | 1080 | ||||
| R95-ST18-15 | 1852 | 601 | 1251 | ||||
| R95-ST18-20 | 2306 | 721 | 1585 | ||||
| R95-ST18-27 | 2931 | 841 | 2090 | ||||
| Parts | Material | ||||||
| Delivery door | AISI304 | ||||||
| Suction support | AISI304 | ||||||
| Check value | AISI304 | ||||||
| Valve support | Plastic(PPO/PC) | ||||||
| Shaft support | Plastic(PPO/PC) | ||||||
| Impeller | Plastic(PPO) | ||||||
| Diffuser | AISI304 | ||||||
| Valve seal | Nitrile rubber(NBR) | ||||||
| Anti-wear washer | Nitrile rubber(NBR) | ||||||
| Pump bearing | Nitrile rubber(NBR) | ||||||
| Pump body | AISI 304 | ||||||
| Cable cover | AISI 304 | ||||||
| Filter | AISI 304 | ||||||
| Shaft | 2Cr13 | ||||||
| Shaft coupling | AISI 304 | ||||||
| Bushing | AISI 304 | ||||||
