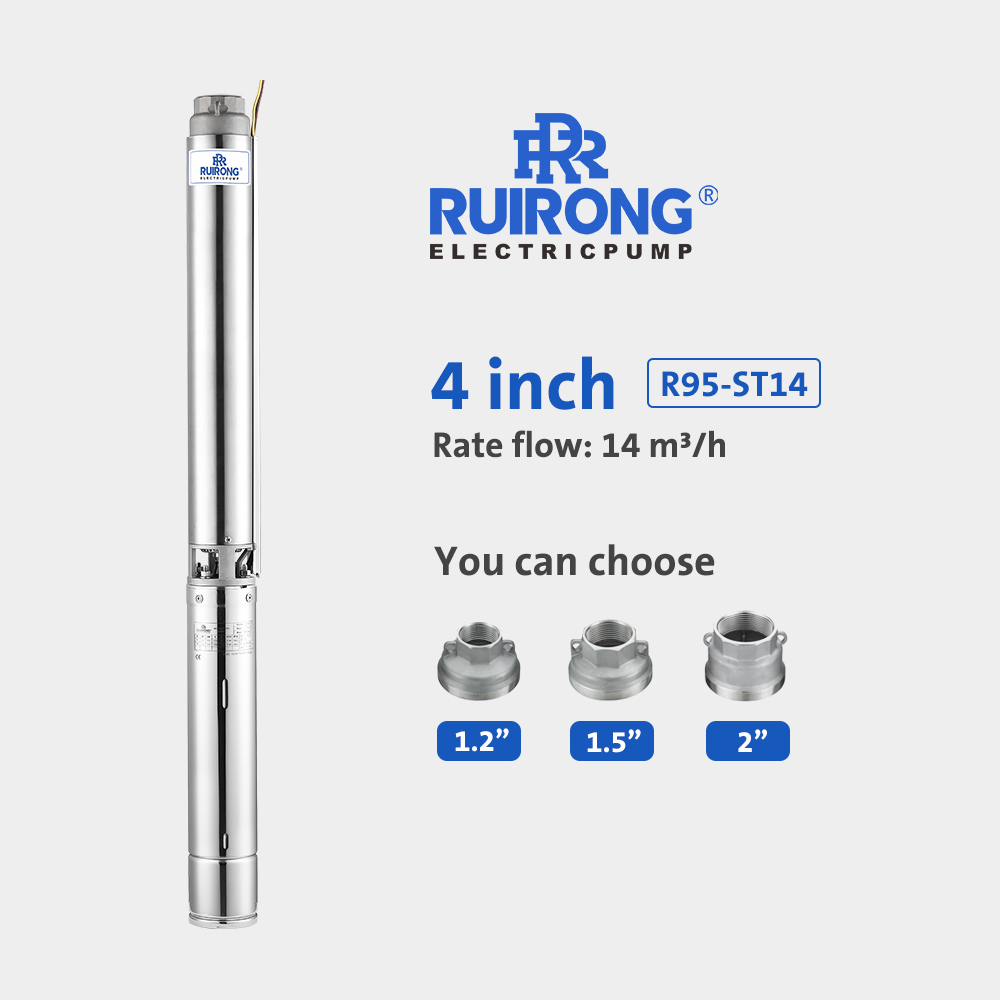

R95-ST14
RUIRONG
1. Utilize a robust stainless steel 304 pump tube with a thickness of 1.5mm, complemented by a stainless steel 304 diffuser and a durable stainless steel 304/316 pump head. This combination ensures high strength, aesthetic appeal, and long-lasting durability.
2. The innovative design of the multi-stage floating impeller significantly lowers the starting torque requirements and prevents blockages caused by small sand particles. This sand-resistant capability extends the motor's service life, offering enhanced performance and reliability.
Model 50Hz | Motor Power | Three Phase | Single Phase | Q | Capacity | ||||||||||
| US.gpm | 0 | 26.4 | 37 | 42.2 | 47.5 | 52.8 | 58.1 | 68.6 | |||||||
| m3/h | 0 | 6 | 8.4 | 9.6 | 10.8 | 12 | 13.2 | 15.6 | |||||||
| 380V | 220V | L/min | 0 | 100 | 140 | 160 | 180 | 200 | 220 | 260 | |||||
| HP | kW | A | A | μF | VC | Total head in meters | |||||||||
| R95-ST14-07 | 2 | 1.5 | 4.4 | 10 | 55 | 450 | H (m) | 45 | 37 | 33 | 31 | 28 | 25 | 22 | 14 |
| R95-ST14-10 | 3 | 2.2 | 6.2 | 14 | 70 | 450 | 64 | 54 | 48 | 44 | 41 | 36 | 32 | 20 | |
| R95-ST14-14 | 4 | 3 | 8.3 | 19.5 | 80 | 450 | 89 | 76 | 67 | 62 | 56 | 49 | 43 | 28 | |
| R95-ST14-17 | 5.5 | 4 | 10.3 | 27 | 120 | 450 | 107 | 90 | 80 | 74 | 67 | 59 | 51 | 32 | |
| R95-ST14-19 | 5.5 | 4 | 10.3 | 27 | 120 | 450 | 120 | 102 | 91 | 89 | 76 | 68 | 58 | 37 | |
| R95-ST14-26 | 7.5 | 5.5 | 14 | - | - | - | 163 | 136 | 120 | 111 | 100 | 87 | 75 | 48 | |
| R95-ST14-35 | 10 | 7.5 | 18.5 | - | - | - | 219 | 183 | 161 | 149 | 134 | 117 | 101 | 64 | |
 | (Unit of Length: mm) | ||||||
| Model | H3 | H2 | H1 | ΦA | ΦB | Φmax | |
| R95-ST14-07 | 974 | 441 | 533 | G2" | 95 | 100 | |
| R95-ST14-10 | 1188 | 501 | 687 | ||||
| R95-ST14-14 | 1490 | 561 | 929 | ||||
| R95-ST14-17 | 1684 | 601 | 1083 | ||||
| R95-ST14-19 | 1786 | 601 | 1185 | ||||
| R95-ST14-26 | 2302 | 721 | 1581 | ||||
| R95-ST14-35 | 2921 | 841 | 2080 | ||||
| Parts | Material | ||||||
| Delivery door | AISI304 | ||||||
| Suction support | AISI304 | ||||||
| Check value | AISI304 | ||||||
| Valve support | Plastic(PPO/PC) | ||||||
| Shaft support | Plastic(PPO/PC) | ||||||
| Impeller | Plastic(PPO) | ||||||
| Diffuser | AISI304 | ||||||
| Valve seal | Nitrile rubber(NBR) | ||||||
| Anti-wear washer | Nitrile rubber(NBR) | ||||||
| Pump bearing | Nitrile rubber(NBR) | ||||||
| Pump body | AISI 304 | ||||||
| Cable cover | AISI 304 | ||||||
| Filter | AISI 304 | ||||||
| Shaft | 2Cr13 | ||||||
| Shaft coupling | AISI 304 | ||||||
| Bushing | AISI 304 | ||||||
