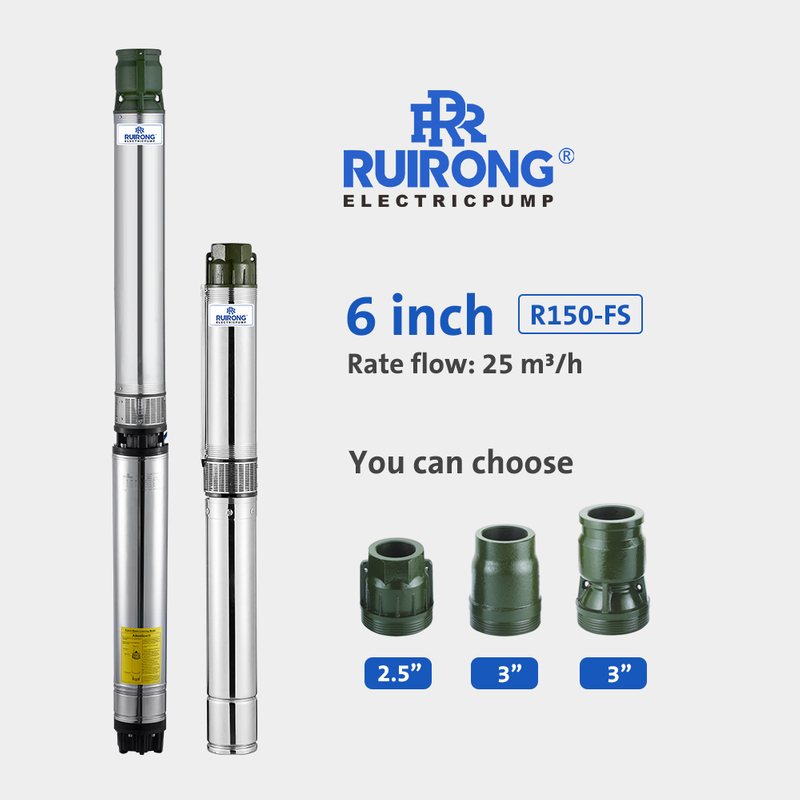

R150-FS
RUIRONG
1. Utilize a durable stainless steel 304 pump pipe paired with a PPO impeller and diffuser, offering both aesthetic appeal and excellent corrosion resistance.
2. A specially designed thrust bearing is installed to protect the pump from damage during start-up and transportation.
3. Choose from a variety of pump head materials, including copper alloy, stainless steel 304 or 316, and cast iron with anti-rust treatment.
Model 50Hz | Motor Power | Three Phase | Q | Capacity | ||||||||
| US.gpm | 0 | 53 | 79 | 93 | 106 | 119 | 132 | 159 | ||||
| m3/h | 0 | 12 | 18 | 21 | 24 | 27 | 30 | 36 | ||||
| 380V | L/min | 0 | 200 | 300 | 350 | 400 | 450 | 500 | 600 | |||
| HP | kW | A | Total head in meters | |||||||||
| R150-FS-02 | 4 | 3 | 8.3 | H (m) | 33 | 29 | 27 | 25 | 24 | 22 | 20 | 17 |
| R150-FS-03 | 5.5 | 4 | 10.3 | 49 | 44 | 40 | 38 | 35 | 33 | 30 | 26 | |
| R150-FS-04 | 7.5 | 5.5 | 14 | 66 | 58 | 53 | 50 | 47 | 44 | 40 | 35 | |
| R150-FS-06 | 10 | 7.5 | 18.5 | 99 | 87 | 80 | 76 | 71 | 66 | 59 | 52 | |
| R150-FS-07 | 12.5 | 9.2 | 21 | 115 | 102 | 93 | 88 | 83 | 76 | 69 | 61 | |
| R150-FS-08 | 15 | 11 | 24 | 132 | 116 | 107 | 101 | 95 | 87 | 79 | 70 | |
| R150-FS-10 | 17.5 | 13 | 28 | 165 | 145 | 133 | 126 | 118 | 109 | 99 | 87 | |
| R150-FS-11 | 20 | 15 | 32 | 181 | 160 | 147 | 139 | 130 | 120 | 109 | 96 | |
| R150-FS-14 | 25 | 18.5 | 40 | 231 | 203 | 187 | 177 | 166 | 153 | 138 | 122 | |
| R150-FS-17 | 30 | 22 | 46 | 280 | 247 | 227 | 215 | 201 | 186 | 168 | 148 | |
| R150-FS-20 | 35 | 26 | 54 | 330 | 290 | 266 | 252 | 237 | 218 | 198 | 174 | |
| R150-FS-22 | 40 | 30 | 62 | 363 | 319 | 293 | 278 | 260 | 240 | 217 | 191 | |
 | (Unit of Length: mm) | ||||||
| Model | H3 | H2 | H1 | ΦA | ΦB | Φmax | |
| R150-FS-02 | 1067 | 561 | 506 | G2 1/2" | 135 | 150 | |
| R150-FS-03 | 1156 | 601 | 555 | ||||
| R150-FS-04 | 1211 | 607 | 604 | ||||
| R150-FS-06 | 1344 | 642 | 702 | ||||
| R150-FS-07 | 1433 | 682 | 751 | ||||
| R150-FS-08 | 1517 | 717 | 800 | ||||
| R150-FS-10 | 1645 | 747 | 898 | ||||
| R150-FS-11 | 1741 | 794 | 947 | ||||
| R150-FS-14 | 1918 | 824 | 1094 | ||||
| R150-FS-17 | 2105 | 864 | 1241 | ||||
| R150-FS-20 | 2358 | 921 | 1437 | ||||
| R150-FS-22 | 2516 | 981 | 1535 | ||||
| Parts | Material | ||||||
| Delivery door | Cast iron | ||||||
| Suction support | Cast iron | ||||||
| Check value | Plastic(POM) | ||||||
| Valve support | Plastic(PPO/PC) | ||||||
| Shaft support | Plastic(PPO/PC) | ||||||
| Impeller | Plastic(PPO) | ||||||
| Diffuser | Plastic(POM) | ||||||
| Valve seal | Nitrile rubber(NBR) | ||||||
| Anti-wear washer | Nitrile rubber(NBR) | ||||||
| Pump bearing | Nitrile rubber(NBR) | ||||||
| Pump body | AISI 304 | ||||||
| Cable cover | AISI 304 | ||||||
| Filter | AISI 304 | ||||||
| Shaft | 2Cr13 | ||||||
| Shaft coupling | AISI 304 | ||||||
| Bushing | AISI 304 | ||||||
