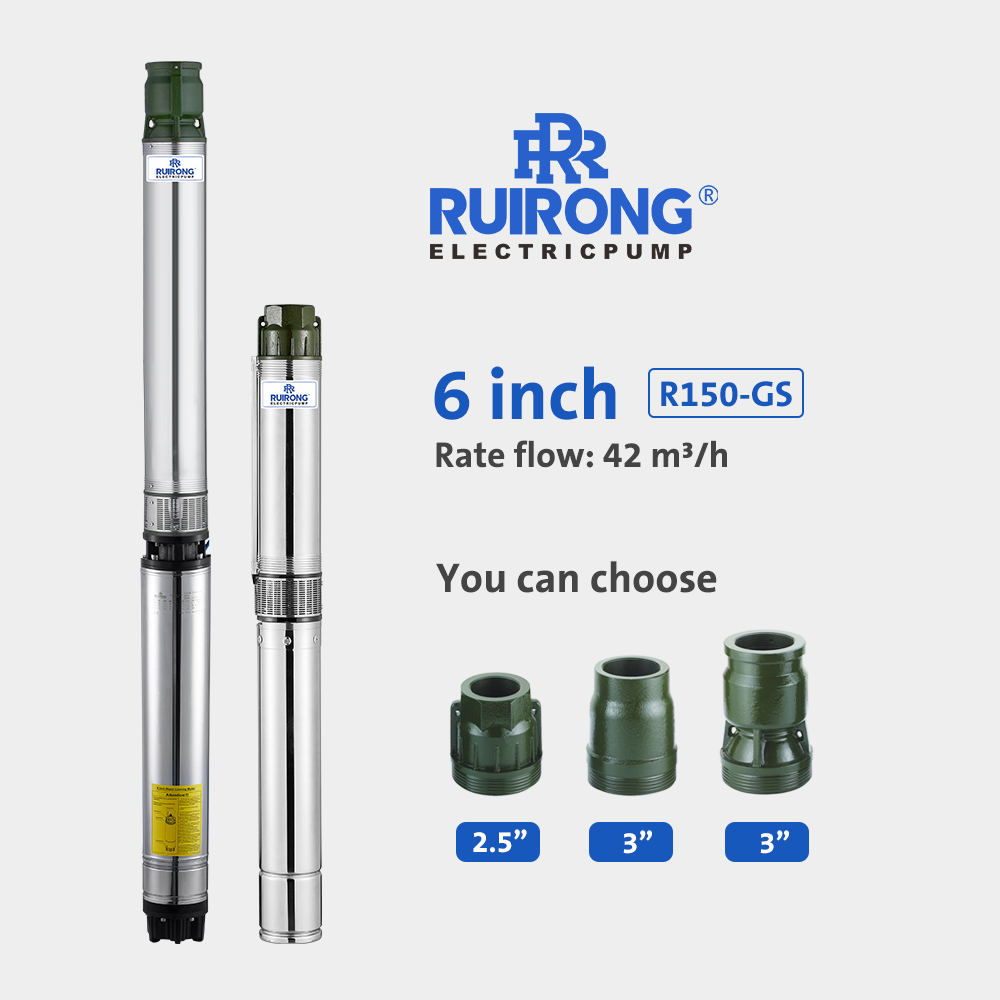

R150-GS
RUIRONG
1. Utilize a durable stainless steel 304 pump pipe paired with a PPO impeller and diffuser, offering both aesthetic appeal and excellent corrosion resistance.
2. A specially designed thrust bearing is installed to protect the pump from damage during start-up and transportation.
3. Choose from a variety of pump head materials, including copper alloy, stainless steel 304 or 316, and cast iron with anti-rust treatment.
Model 50Hz | Motor Power | Three Phase | Q | Capacity | ||||||||
| US.gpm | 0 | 53 | 79 | 106 | 132 | 159 | 185 | 211 | ||||
| m3/h | 0 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | ||||
| 380V | L/min | 0 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | |||
| HP | kW | A | Total head in meters | |||||||||
| R150-GS-02 | 4 | 3 | 8.3 | H (m) | 28 | 26 | 25 | 24 | 23 | 21 | 19 | 16 |
| R150-GS-03 | 5.5 | 4 | 10.3 | 42 | 39 | 37 | 36 | 34 | 31 | 28 | 24 | |
| R150-GS-04 | 7.5 | 5.5 | 14 | 57 | 52 | 50 | 48 | 45 | 42 | 37 | 31 | |
| R150-GS-05 | 10 | 7.5 | 18.5 | 71 | 65 | 62 | 60 | 57 | 52 | 47 | 39 | |
| R150-GS-06 | 12.5 | 9.2 | 21 | 85 | 78 | 75 | 72 | 68 | 63 | 56 | 47 | |
| R150-GS-07 | 15 | 11 | 24 | 99 | 91 | 87 | 84 | 79 | 73 | 65 | 55 | |
| R150-GS-08 | 17.5 | 13 | 28 | 113 | 104 | 100 | 96 | 91 | 84 | 75 | 63 | |
| R150-GS-09 | 20 | 15 | 32 | 127 | 117 | 112 | 108 | 102 | 94 | 84 | 71 | |
| R150-GS-11 | 25 | 18.5 | 40 | 155 | 143 | 137 | 132 | 125 | 115 | 103 | 86 | |
| R150-GS-14 | 30 | 22 | 46 | 198 | 182 | 175 | 168 | 159 | 147 | 131 | 110 | |
| R150-GS-16 | 35 | 26 | 54 | 226 | 208 | 200 | 192 | 181 | 168 | 150 | 126 | |
| R150-GS-18 | 40 | 30 | 62 | 254 | 234 | 225 | 215 | 204 | 189 | 168 | 141 | |
 | (Unit of Length: mm) | ||||||
| Model | H3 | H2 | H1 | ΦA | ΦB | Φmax | |
| R150-GS-02 | 1165 | 561 | 604 | G3" | 135 | 150 | |
| R150-GS-03 | 1295 | 601 | 694 | ||||
| R150-GS-04 | 1393 | 607 | 786 | ||||
| R150-GS-05 | 1522 | 642 | 880 | ||||
| R150-GS-06 | 1697 | 682 | 1015 | ||||
| R150-GS-07 | 1822 | 717 | 1105 | ||||
| R150-GS-08 | 1944 | 747 | 1197 | ||||
| R150-GS-09 | 2080 | 794 | 1286 | ||||
| R150-GS-11 | 2292 | 824 | 1468 | ||||
| R150-GS-14 | 2653 | 864 | 1789 | ||||
| R150-GS-16 | 2889 | 921 | 1968 | ||||
| R150-GS-18 | 3130 | 981 | 2149 | ||||
| Parts | Material | ||||||
| Delivery door | Cast iron | ||||||
| Suction support | Cast iron | ||||||
| Check value | Plastic(POM) | ||||||
| Valve support | Plastic(PPO/PC) | ||||||
| Shaft support | Plastic(PPO/PC) | ||||||
| Impeller | Plastic(PPO) | ||||||
| Diffuser | Plastic(POM) | ||||||
| Valve seal | Nitrile rubber(NBR) | ||||||
| Anti-wear washer | Nitrile rubber(NBR) | ||||||
| Pump bearing | Nitrile rubber(NBR) | ||||||
| Pump body | AISI 304 | ||||||
| Cable cover | AISI 304 | ||||||
| Filter | AISI 304 | ||||||
| Shaft | 2Cr13 | ||||||
| Shaft coupling | AISI 304 | ||||||
| Bushing | AISI 304 | ||||||
