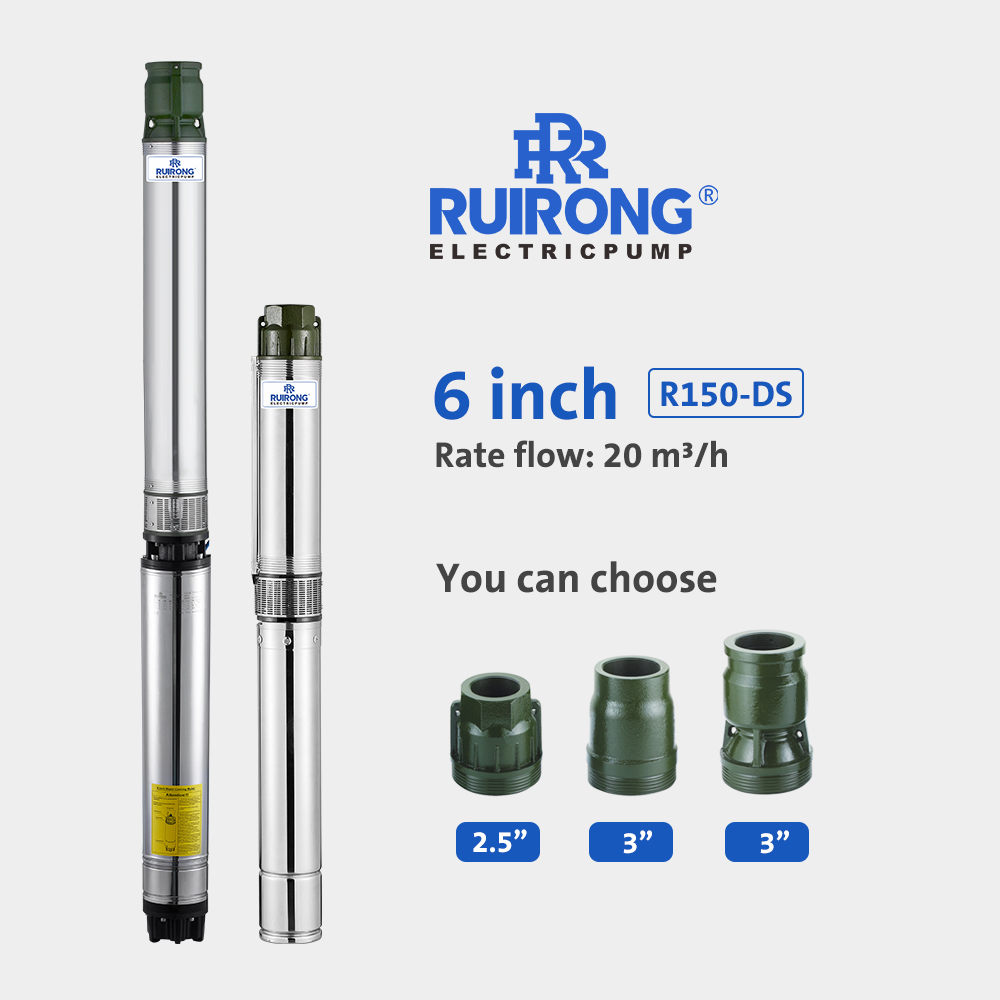

R150-DS
RUIRONG
1. Utilize a durable stainless steel 304 pump pipe paired with a PPO impeller and diffuser, offering both aesthetic appeal and excellent corrosion resistance.
2. A specially designed thrust bearing is installed to protect the pump from damage during start-up and transportation.
3. Choose from a variety of pump head materials, including copper alloy, stainless steel 304 or 316, and cast iron with anti-rust treatment.
Model 50Hz | Motor Power | Three Phase | Q | Capacity | ||||||||
| US.gpm | 0 | 53 | 62 | 70 | 79 | 88 | 97 | 110 | ||||
| m3/h | 0 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | ||||
| 380V | L/min | 0 | 200 | 233 | 267 | 300 | 333 | 367 | 417 | |||
| HP | kW | A | Total head in meters | |||||||||
| R150-DS-03 | 4 | 3 | 8.3 | H (m) | 46 | 39 | 37 | 34 | 31 | 28 | 25 | 19 |
| R150-DS-04 | 5.5 | 4 | 10.3 | 61 | 52 | 49 | 45 | 42 | 37 | 32 | 25 | |
| R150-DS-05 | 5.5 | 4 | 10.3 | 77 | 64 | 61 | 57 | 51 | 46 | 41 | 31 | |
| R150-DS-07 | 7.5 | 5.5 | 14 | 108 | 90 | 86 | 79 | 73 | 65 | 58 | 44 | |
| R150-DS-09 | 10 | 7.5 | 18.5 | 138 | 116 | 111 | 101 | 96 | 84 | 76 | 56 | |
| R150-DS-11 | 12.5 | 9.2 | 21 | 168 | 142 | 136 | 124 | 113 | 102 | 90 | 69 | |
| R150-DS-14 | 15 | 11 | 24 | 215 | 180 | 171 | 150 | 145 | 130 | 113 | 88 | |
| R150-DS-16 | 17.5 | 13 | 28 | 246 | 206 | 195 | 180 | 165 | 149 | 130 | 100 | |
| R150-DS-18 | 20 | 15 | 32 | 277 | 232 | 225 | 202 | 193 | 170 | 152 | 113 | |
| R150-DS-20 | 25 | 18.5 | 40 | 307 | 256 | 240 | 215 | 203 | 181 | 156 | 120 | |
| R150-DS-22 | 25 | 18.5 | 40 | 345 | 295 | 282 | 262 | 241 | 216 | 189 | 143 | |
| R150-DS-25 | 30 | 22 | 46 | 386 | 320 | 303 | 281 | 265 | 232 | 208 | 158 | |
| R150-DS-28 | 35 | 26 | 54 | 428 | 358 | 336 | 301 | 291 | 255 | 221 | 174 | |
| R150-DS-30 | 40 | 30 | 62 | 459 | 384 | 360 | 322 | 312 | 273 | 237 | 186 | |
 | (Unit of Length: mm) | ||||||
| Model | H3 | H2 | H1 | ΦA | ΦB | Φmax | |
| R150-DS-03 | 1095 | 561 | 534 | G2 1/2" | 135 | 150 | |
| R150-DS-04 | 1180 | 601 | 579 | ||||
| R150-DS-05 | 1226 | 601 | 625 | ||||
| R150-DS-07 | 1322 | 607 | 715 | ||||
| R150-DS-09 | 1450 | 642 | 808 | ||||
| R150-DS-11 | 1581 | 682 | 899 | ||||
| R150-DS-14 | 1751 | 717 | 1034 | ||||
| R150-DS-16 | 1847 | 747 | 1127 | ||||
| R150-DS-18 | 2052 | 794 | 1258 | ||||
| R150-DS-20 | 2173 | 824 | 1349 | ||||
| R150-DS-22 | 2265 | 824 | 1441 | ||||
| R150-DS-25 | 2441 | 864 | 1577 | ||||
| R150-DS-28 | 2672 | 921 | 1751 | ||||
| R150-DS-30 | 2844 | 981 | 1863 | ||||
| Parts | Material | ||||||
| Delivery door | Cast iron | ||||||
| Suction support | Cast iron | ||||||
| Check value | Plastic(POM) | ||||||
| Valve support | Plastic(PPO/PC) | ||||||
| Shaft support | Plastic(PPO/PC) | ||||||
| Impeller | Plastic(PPO) | ||||||
| Diffuser | Plastic(POM) | ||||||
| Valve seal | Nitrile rubber(NBR) | ||||||
| Anti-wear washer | Nitrile rubber(NBR) | ||||||
| Pump bearing | Nitrile rubber(NBR) | ||||||
| Pump body | AISI 304 | ||||||
| Cable cover | AISI 304 | ||||||
| Filter | AISI 304 | ||||||
| Shaft | 2Cr13 | ||||||
| Shaft coupling | AISI 304 | ||||||
| Bushing | AISI 304 | ||||||
