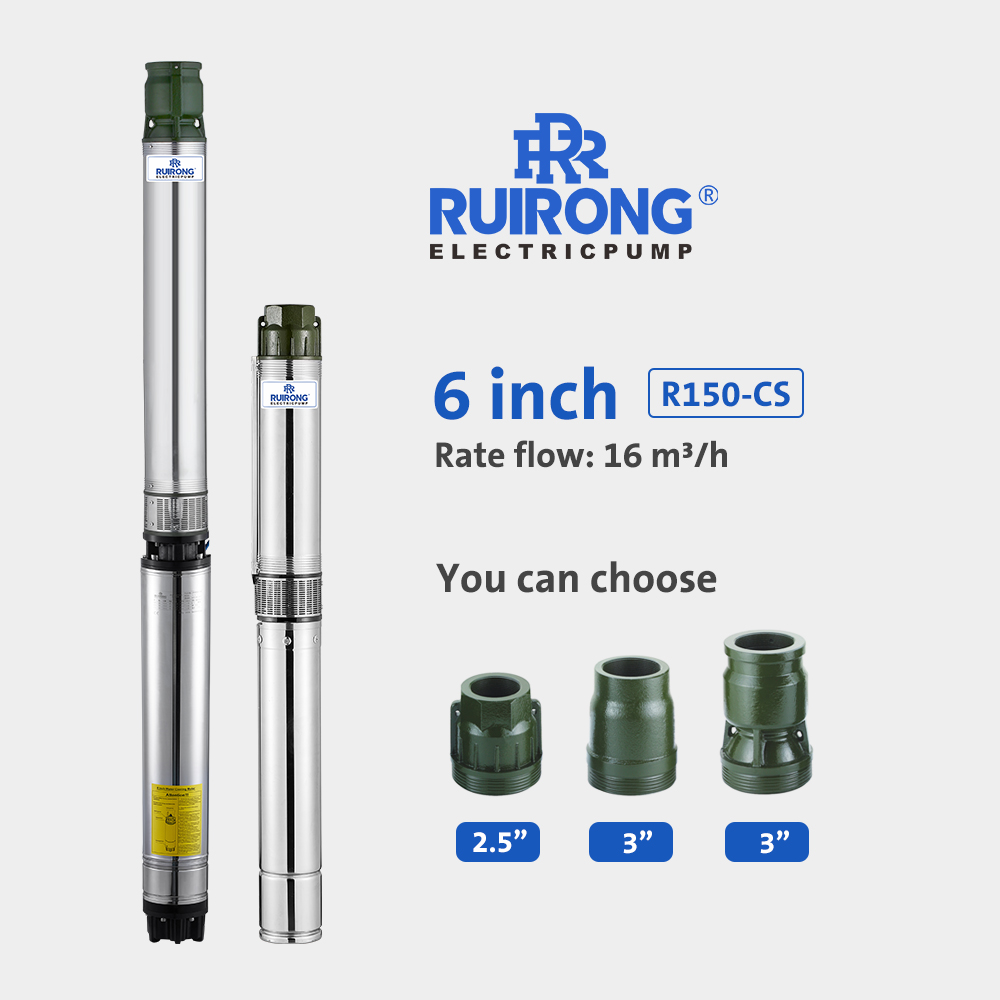

R150-CS
RUIRONG
1. Utilize a durable stainless steel 304 pump pipe paired with a PPO impeller and diffuser, offering both aesthetic appeal and excellent corrosion resistance.
2. A specially designed thrust bearing is installed to protect the pump from damage during start-up and transportation.
3. Choose from a variety of pump head materials, including copper alloy, stainless steel 304 or 316, and cast iron with anti-rust treatment.
Model 50Hz | Motor Power | Three Phase | Q | Capacity | ||||||||
| US.gpm | 0 | 26 | 40 | 53 | 66 | 79 | 93 | 106 | ||||
| m3/h | 0 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | ||||
| 380V | L/min | 0 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | |||
| HP | kW | A | Total head in meters | |||||||||
| R150-CS-03 | 4 | 3 | 8.3 | H (m) | 45 | 43 | 41 | 39 | 37 | 33 | 30 | 25 |
| R150-CS-04 | 5.5 | 4 | 10.3 | 61 | 57 | 55 | 52 | 49 | 45 | 39 | 33 | |
| R150-CS-06 | 7.5 | 5.5 | 14 | 91 | 86 | 82 | 78 | 73 | 67 | 59 | 50 | |
| R150-CS-08 | 10 | 7.5 | 18.5 | 121 | 114 | 110 | 104 | 98 | 89 | 79 | 66 | |
| R150-CS-10 | 12.5 | 9.2 | 21 | 152 | 143 | 137 | 130 | 122 | 111 | 99 | 83 | |
| R150-CS-12 | 15 | 11 | 24 | 182 | 171 | 165 | 156 | 146 | 134 | 118 | 100 | |
| R150-CS-15 | 17.5 | 13 | 28 | 227 | 214 | 206 | 196 | 183 | 167 | 148 | 125 | |
| R150-CS-17 | 20 | 15 | 32 | 258 | 243 | 233 | 222 | 207 | 189 | 168 | 141 | |
| R150-CS-21 | 25 | 18.5 | 40 | 318 | 300 | 288 | 274 | 256 | 234 | 207 | 174 | |
| R150-CS-25 | 30 | 22 | 46 | 379 | 357 | 343 | 326 | 305 | 279 | 247 | 208 | |
 | (Unit of Length: mm) | ||||||
| Model | H3 | H2 | H1 | ΦA | ΦB | Φmax | |
| R150-CS-03 | 926 | 441 | 485 | G2 1/2" | 135 | 150 | |
| R150-CS-04 | 1025 | 501 | 524 | ||||
| R150-CS-06 | 1123 | 561 | 562 | ||||
| R150-CS-08 | 1241 | 601 | 640 | ||||
| R150-CS-10 | 1322 | 607 | 715 | ||||
| R150-CS-12 | 1475 | 642 | 833 | ||||
| R150-CS-15 | 1628 | 682 | 946 | ||||
| R150-CS-17 | 1792 | 717 | 1075 | ||||
| R150-CS-21 | 1938 | 747 | 1191 | ||||
| R150-CS-25 | 2062 | 794 | 1268 | ||||
| Parts | Material | ||||||
| Delivery door | Cast iron | ||||||
| Suction support | Cast iron | ||||||
| Check value | Plastic(POM) | ||||||
| Valve support | Plastic(PPO/PC) | ||||||
| Shaft support | Plastic(PPO/PC) | ||||||
| Impeller | Plastic(PPO) | ||||||
| Diffuser | Plastic(POM) | ||||||
| Valve seal | Nitrile rubber(NBR) | ||||||
| Anti-wear washer | Nitrile rubber(NBR) | ||||||
| Pump bearing | Nitrile rubber(NBR) | ||||||
| Pump body | AISI 304 | ||||||
| Cable cover | AISI 304 | ||||||
| Filter | AISI 304 | ||||||
| Shaft | 2Cr13 | ||||||
| Shaft coupling | AISI 304 | ||||||
| Bushing | AISI 304 | ||||||
