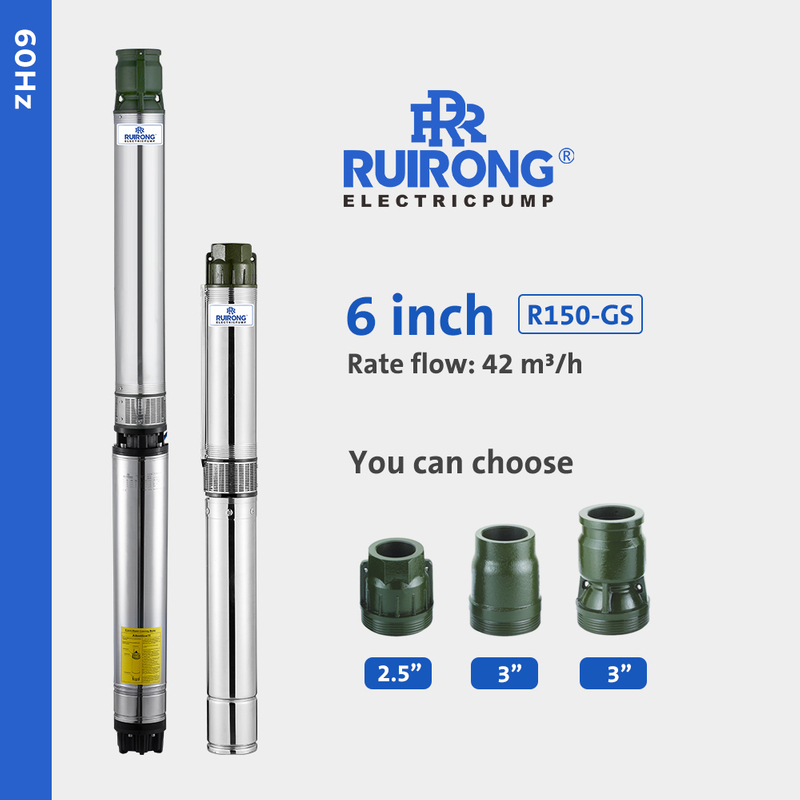

R150-GS
RUIRONG
1. Utilize a durable stainless steel 304 pump pipe paired with a PPO impeller and diffuser, offering both aesthetic appeal and excellent corrosion resistance.
2. A specially designed thrust bearing is installed to protect the pump from damage during start-up and transportation.
3. Choose from a variety of pump head materials, including copper alloy, stainless steel 304 or 316, and cast iron with anti-rust treatment.
Model 60Hz | Motor Power | Three Phase | Q | Capacity | ||||||||
| US.gpm | 0 | 105.6 | 158.4 | 184.8 | 211.2 | 237.6 | 264 | 290.4 | ||||
| m3/h | 0 | 24 | 36 | 42 | 48 | 54 | 60 | 66 | ||||
| 380V | L/min | 0 | 400 | 600 | 700 | 800 | 900 | 1000 | 1100 | |||
| HP | kW | A | Total head in meters | |||||||||
| *R150-GS-02 | 7.5 | 5.5 | 11.3 | H (m) | 40 | 35 | 31 | 30 | 28 | 24 | 20 | 16 |
| R150-GS-03 | 10 | 7.5 | 17.5 | 60 | 53 | 47 | 45 | 42 | 36 | 31 | 23 | |
| *R150-GS-04 | 15 | 11 | 21.6 | 80 | 71 | 63 | 59 | 55 | 49 | 41 | 32 | |
| *R150-GS-05 | 17.5 | 13 | 25.4 | 100 | 88 | 78 | 74.5 | 69 | 61 | 51 | 40 | |
| R150-GS-06 | 20 | 15 | 32.4 | 120 | 106 | 94 | 89 | 83 | 73 | 61 | 47 | |
| *R150-GS-07 | 25 | 18.5 | 34.5 | 140 | 124 | 110 | 104 | 97 | 85 | 71 | 55 | |
| *R150-GS-08 | 30 | 22 | 40.8 | 160 | 142 | 125 | 119 | 111 | 98 | 81 | 63 | |
| R150-GS-09 | 30 | 22 | 46.9 | 180 | 159 | 141 | 134 | 125 | 110 | 92 | 71 | |
| R150-GS-10 | 35 | 26 | 55.2 | 200 | 177 | 157 | 149 | 139 | 122 | 102 | 79 | |
| *R150-GS-11 | 40 | 30 | 56.7 | 220 | 195 | 173 | 164 | 153 | 134 | 112 | 87 | |
| R150-CS-12 | 40 | 30 | 64.4 | 240 | 212 | 188 | 179 | 167 | 146 | 122 | 95 | |
| *R150-GS-13 | 50 | 37 | 75 | 260 | 230 | 204 | 194 | 181 | 158 | 133 | 103 | |
Mark * indicates that the pump body load is configured according to the rated power.
