Water is essential for life, whether it's for drinking, irrigating crops, or sustaining livestock. For many remote communities and agricultural operations, accessing a reliable water source can be a significant challenge. Traditional electric or diesel pumps are often expensive to run and maintain, and they're not always an option in off-grid locations. This is where solar-powered water pumps come in, offering a sustainable, cost-effective, and reliable solution.
If you've ever wondered about the technology behind these innovative systems, you're in the right place. This guide will explain exactly how solar-powered water pumps work, from the sunlight hitting the panels to the water flowing from the tap. We'll cover the core components, the different types of pumps available, and the benefits of making the switch to solar. By the end, you'll understand why this technology is becoming a game-changer for water access around the world.

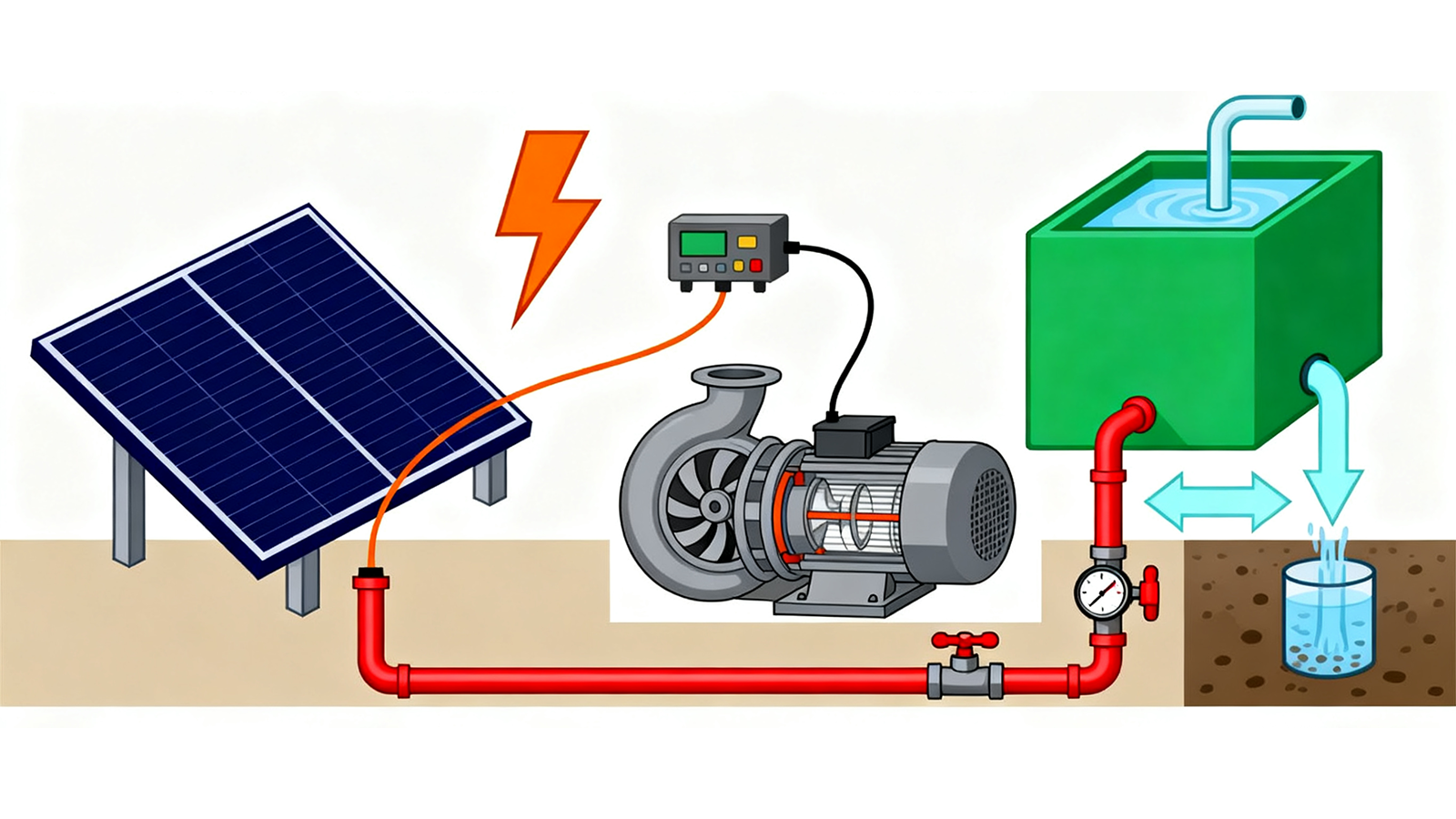

At its heart, a solar-powered water pump system is straightforward. It uses energy from the sun to move water from one place to another. While the specifics can vary, most systems consist of three main components: solar panels, a controller, and the pump itself.
The journey begins with the solar panels. These panels, also known as a photovoltaic (PV) array, are the system's power source. They are made up of many individual solar cells, typically composed of silicon.
When sunlight strikes these cells, it creates an electric field. This phenomenon, called the photovoltaic effect, generates a direct current (DC) of electricity. The more sunlight the panels receive, the more electricity they produce. The size and number of panels needed will depend on the pump's power requirements, the local climate, and how much water needs to be pumped each day.
The electricity generated by the solar panels flows to a controller. This device is the brain of the system, managing the power and protecting the pump. Its primary functions include:
· Power Conversion: Most solar water pumps run on DC power, which is what solar panels produce. However, some larger systems use alternating current (AC) pumps. In these cases, the controller includes an inverter to convert the DC electricity from the panels into AC electricity.
· Voltage Regulation: The controller regulates the voltage and current coming from the solar panels to match the pump's operational requirements. This ensures the pump runs efficiently and prevents it from being damaged by power surges or drops.
· Pump Protection: It protects the pump motor from overheating or running dry. Many controllers have sensors that can detect low water levels in the well or storage tank, automatically shutting off the pump to prevent damage. This is known as "dry run protection."
· Maximum Power Point Tracking (MPPT): Advanced controllers use MPPT technology to optimize the power output from the solar panels. It constantly adjusts the electrical operating point of the panels to ensure they are generating the maximum amount of power possible under changing light conditions.
The final component is the pump itself. This is the part of the system that does the physical work of moving water. The motor, powered by the electricity from the solar panels and managed by the controller, drives the pump. There are two main types of solar pumps used in these systems: submersible and surface pumps.
Choosing the right type of solar pump is crucial and depends entirely on the water source and the specific application.
As the name suggests, submersible pumps are designed to be placed underwater. They are typically used for deep wells, boreholes, or other underground water sources.
· How They Work: A submersible pump is a long, cylindrical unit that is lowered directly into the water source. The entire assembly, including the motor and pump mechanism, is hermetically sealed to prevent water from damaging the internal components. When powered on, the motor drives a series of impellers that push water up through a pipe to the surface.
· Best For: Deep wells (up to several hundred feet), boreholes, and applications where the water source is far below the ground. They are highly efficient because they push water rather than pulling it, which requires less energy.
Surface pumps are installed on the ground, near the edge of the water source. They are not designed to be submerged.
· How They Work: These pumps use suction to pull water from the source through an intake pipe. Because they rely on creating a vacuum, their ability to lift water is limited by atmospheric pressure. They can typically only draw water from depths of about 20 feet (6-7 meters).
· Best For: Pumping water from shallow sources like ponds, streams, rivers, or storage tanks. They are often used for irrigation, livestock watering, or moving water between tanks.
Let's walk through a typical day in the life of a solar-powered water pump system used for a farm.
1.Sunrise: As the sun rises, its rays hit the solar panels. The photovoltaic cells begin to convert sunlight into DC electricity.
2.Morning: The controller detects the incoming power. Once there's enough energy to start the pump, the controller sends the electricity to the pump motor. If it's a submersible pump in a deep well, it starts pushing water up to a storage tank on the surface.
3.Midday: When the sun is at its peak, the solar panels produce the most electricity. The pump operates at its maximum capacity, moving a significant volume of water. The MPPT controller ensures the system is running at peak efficiency.
4.Afternoon: As the sun begins to set, the energy production from the panels decreases. The pump's speed slows down accordingly.
5.Sunset: Once the sunlight is no longer sufficient to power the pump, the controller automatically shuts it off for the night. The water collected in the storage tank during the day can then be used as needed, providing a reliable water supply 24/7.
6.Cloudy Days: On overcast days, the pump will still operate, but at a reduced flow rate. This is why many systems include a water storage tank or a battery bank. The tank ensures water is available even when the sun isn't shining, while batteries can store excess energy to power the pump at night or during cloudy weather.
Solar-powered water pumps offer a powerful combination of sustainability, reliability, and long-term cost savings. By harnessing the clean, abundant energy of the sun, they provide a practical solution for accessing water in a wide range of settings, from small-scale farms to entire communities.
As solar technology continues to improve and become more affordable, the potential for these systems to transform lives and livelihoods only grows. They empower farmers to irrigate their crops, provide clean drinking water to remote villages, and reduce our reliance on fossil fuels. Understanding how a solar pump works is the first step toward appreciating the incredible impact of this simple yet revolutionary technology.
