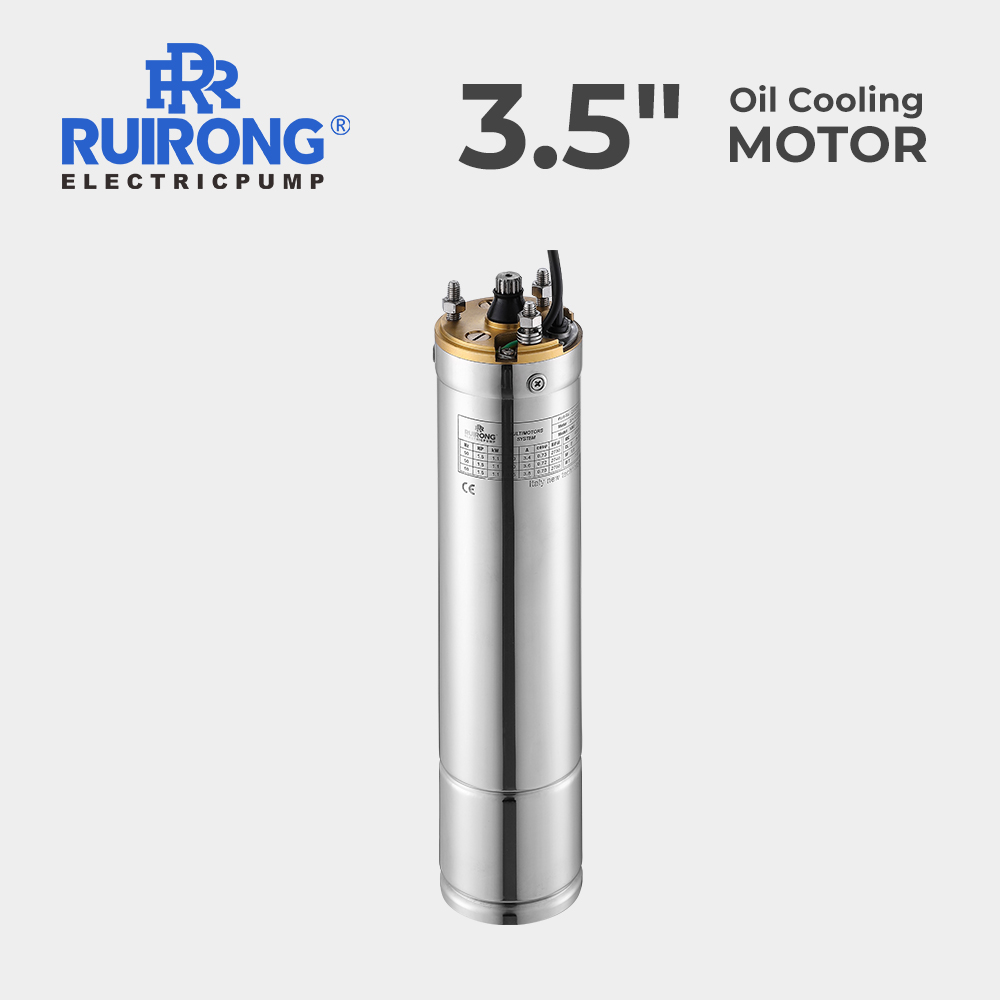

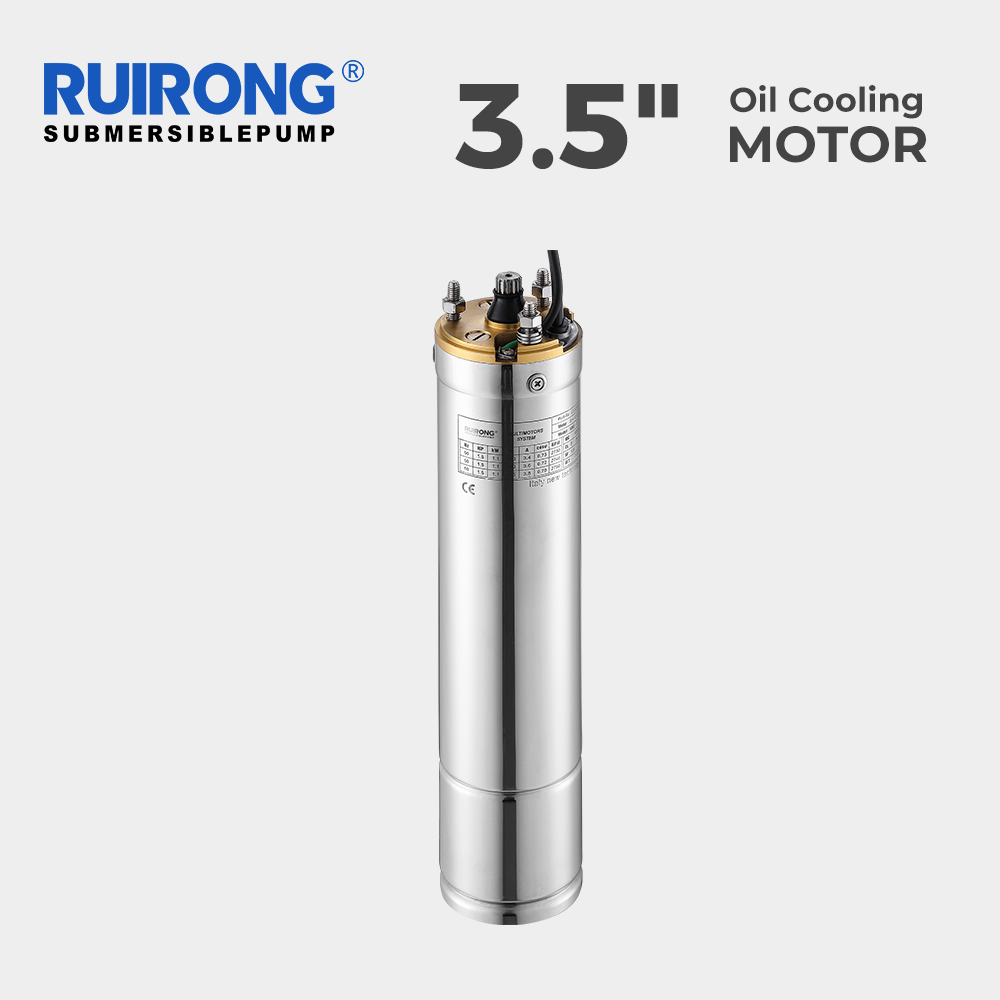

M85
RUIRONG
1. Discover our efficient and precise mechanical seals for optimal performance.
2. Durable design: Motor housing and bottom cover crafted with high-quality stainless steel 304.
3. Advanced materials: Featuring cold-rolled, high-efficiency silicone steel laminations that ensure low loss and excellent magnetic conductivity.
4. Experience the benefits of high-precision silent bearings for extended pump lifespan and stable, quiet operation.
5. H-class pure copper wire ensures low temperature rise, high-temperature resistance (up to 200 degrees), and reliable long-term continuous operation. It's an environmentally friendly and energy-saving choice with a long service life.
6. Innovative design allows the pump to start at a low voltage of just 180V.
| Single-phase 220/230V 50Hz | ||||||||
| Model | kW | HP | Current(A) | μF | CosΦ | rpm | L(mm) | W(Kg) |
| M85S-0.37 | 0.37 | 0.5 | 3 | 15 | 0.95 | 2800 | 307 | 5.7 |
| M85S-0.55 | 0.55 | 0.75 | 4.2 | 20 | 0.99 | 2800 | 327 | 6.6 |
| M85S-0.75 | 0.75 | 1 | 5.6 | 30 | 0.99 | 2800 | 352 | 7.6 |
| M85S-1.1 | 1.1 | 1.5 | 7.9 | 40 | 0.99 | 2800 | 382 | 8.6 |
| M85S-1.5 | 1.5 | 2 | 10.5 | 50 | 0.99 | 2800 | 412 | 9.8 |
| M85S-2.2 | 2.2 | 3 | 14.5 | 60 | 0.99 | 2800 | 467 | 12 |
| Three-phase 380/415V 50Hz | |||||||
| Model | kW | HP | Current(A) | CosΦ | rpm | L(mm) | W(Kg) |
| M85-0.55 | 0.55 | 0.75 | 1.8 | 0.74 | 2850 | 317 | 6.3 |
| M85-0.75 | 0.75 | 1 | 2.4 | 0.75 | 2850 | 337 | 7 |
| M85-1.1 | 1.1 | 1.5 | 3.4 | 0.76 | 2850 | 362 | 8 |
| M85-1.5 | 1.5 | 2 | 4.4 | 0.77 | 2850 | 392 | 9.2 |
| M85-2.2 | 2.2 | 3 | 6.2 | 0.78 | 2850 | 442 | 11.2 |
When using a variable frequency drive, the normal operating output voltage frequency range is maintained between 35Hz and the rated frequency, and the starting frequency is not less than 35Hz (for a motor with a rated frequency of 50Hz), or 40Hz (for a motor with a rated frequency of 60Hz), and the time from the starting voltage frequency to the rated voltage frequency does not exceed 10 seconds.
1. Discover our efficient and precise mechanical seals for optimal performance.
2. Durable design: Motor housing and bottom cover crafted with high-quality stainless steel 304.
3. Advanced materials: Featuring cold-rolled, high-efficiency silicone steel laminations that ensure low loss and excellent magnetic conductivity.
4. Experience the benefits of high-precision silent bearings for extended pump lifespan and stable, quiet operation.
5. H-class pure copper wire ensures low temperature rise, high-temperature resistance (up to 200 degrees), and reliable long-term continuous operation. It's an environmentally friendly and energy-saving choice with a long service life.
6. Innovative design allows the pump to start at a low voltage of just 180V.
| Single-phase 220/230V 50Hz | ||||||||
| Model | kW | HP | Current(A) | μF | CosΦ | rpm | L(mm) | W(Kg) |
| M85S-0.37 | 0.37 | 0.5 | 3 | 15 | 0.95 | 2800 | 307 | 5.7 |
| M85S-0.55 | 0.55 | 0.75 | 4.2 | 20 | 0.99 | 2800 | 327 | 6.6 |
| M85S-0.75 | 0.75 | 1 | 5.6 | 30 | 0.99 | 2800 | 352 | 7.6 |
| M85S-1.1 | 1.1 | 1.5 | 7.9 | 40 | 0.99 | 2800 | 382 | 8.6 |
| M85S-1.5 | 1.5 | 2 | 10.5 | 50 | 0.99 | 2800 | 412 | 9.8 |
| M85S-2.2 | 2.2 | 3 | 14.5 | 60 | 0.99 | 2800 | 467 | 12 |
| Three-phase 380/415V 50Hz | |||||||
| Model | kW | HP | Current(A) | CosΦ | rpm | L(mm) | W(Kg) |
| M85-0.55 | 0.55 | 0.75 | 1.8 | 0.74 | 2850 | 317 | 6.3 |
| M85-0.75 | 0.75 | 1 | 2.4 | 0.75 | 2850 | 337 | 7 |
| M85-1.1 | 1.1 | 1.5 | 3.4 | 0.76 | 2850 | 362 | 8 |
| M85-1.5 | 1.5 | 2 | 4.4 | 0.77 | 2850 | 392 | 9.2 |
| M85-2.2 | 2.2 | 3 | 6.2 | 0.78 | 2850 | 442 | 11.2 |
When using a variable frequency drive, the normal operating output voltage frequency range is maintained between 35Hz and the rated frequency, and the starting frequency is not less than 35Hz (for a motor with a rated frequency of 50Hz), or 40Hz (for a motor with a rated frequency of 60Hz), and the time from the starting voltage frequency to the rated voltage frequency does not exceed 10 seconds.
