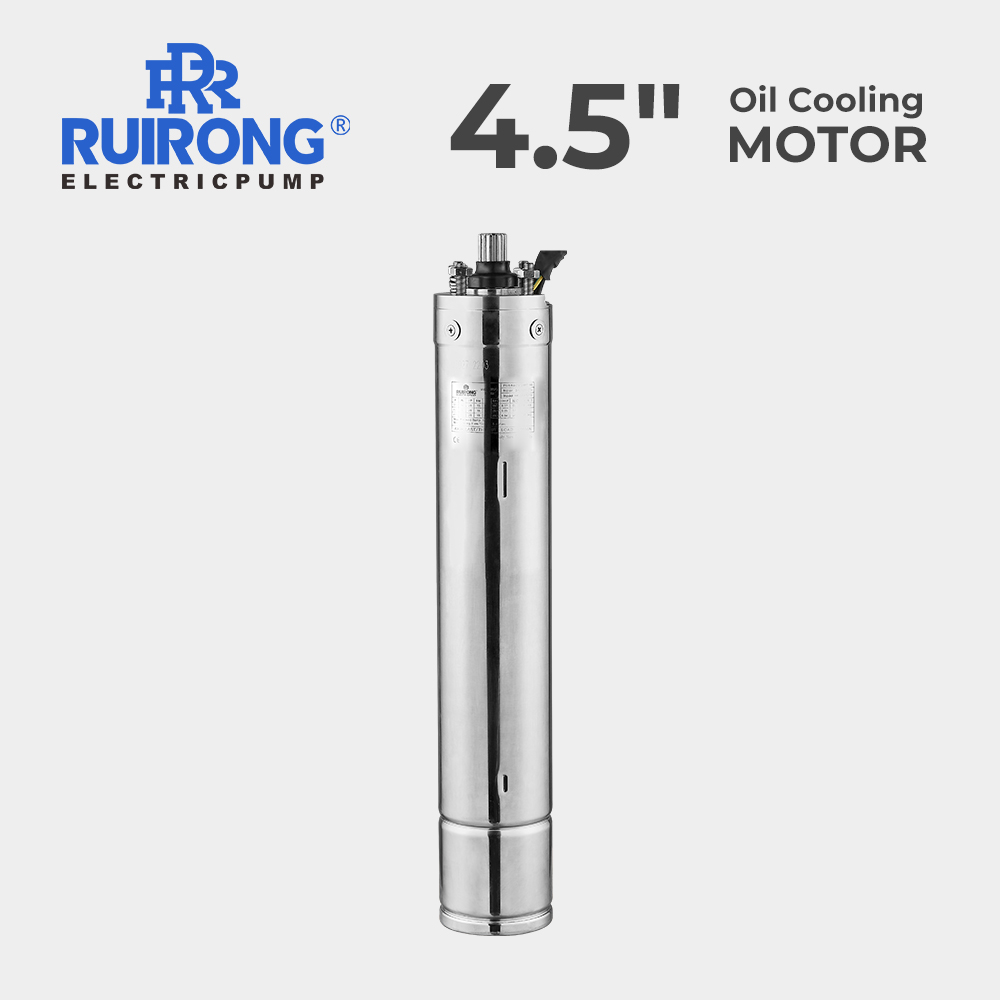

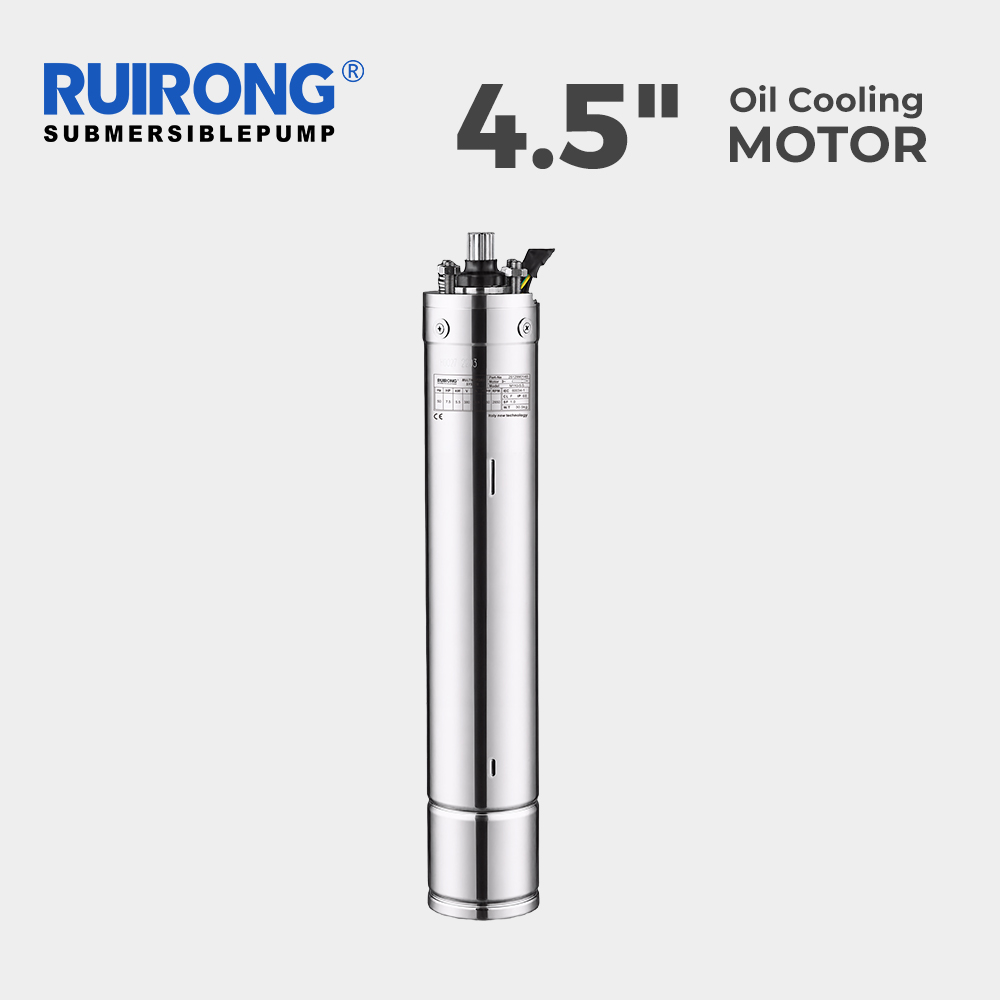

RUIRONG 4.5 inch Oil Cooling Submersible deep well pump motor submersible borehole pump motors

Availability:
Quantity:
RUIRONG 4.5 inch Oil Cooling Submersible deep well pump motor submersible borehole pump motors
  • M110

  • RUIRONG

Features

1. High-quality cold-roller silicon steel lamination.

2. ltalian mechanical seal.

3. High-quality bearing undertaking heavy thrust load.

4. 304/316 Stainless Steel Head Oil-filled Motor.

5. Rotor core is made of SS 431.

6. Corrosion-resistant, suitable for corrosive water such as acid and alkali.


Specifications

Three-phase 380/415V 50Hz
ModelkWHPCurrent(A)CosΦrpm
L(mm)
W(Kg)
M110-5.55.5
7.513.50.84
2850
78730.5
M110-7.57.51018.5

0.85

285083733.3
M110-9.29.212.5230.85285090737.4
M110-111115
26.50.85285097741.4


Note

When using a variable frequency drive, the normal operating output voltage frequency range is maintained between 35Hz and the rated frequency, and the starting frequency is not less than 35Hz (for a motor with a rated frequency of 50Hz), or 40Hz (for a motor with a rated frequency of 60Hz), and the time from the starting voltage frequency to the rated voltage frequency does not exceed 10 seconds.
