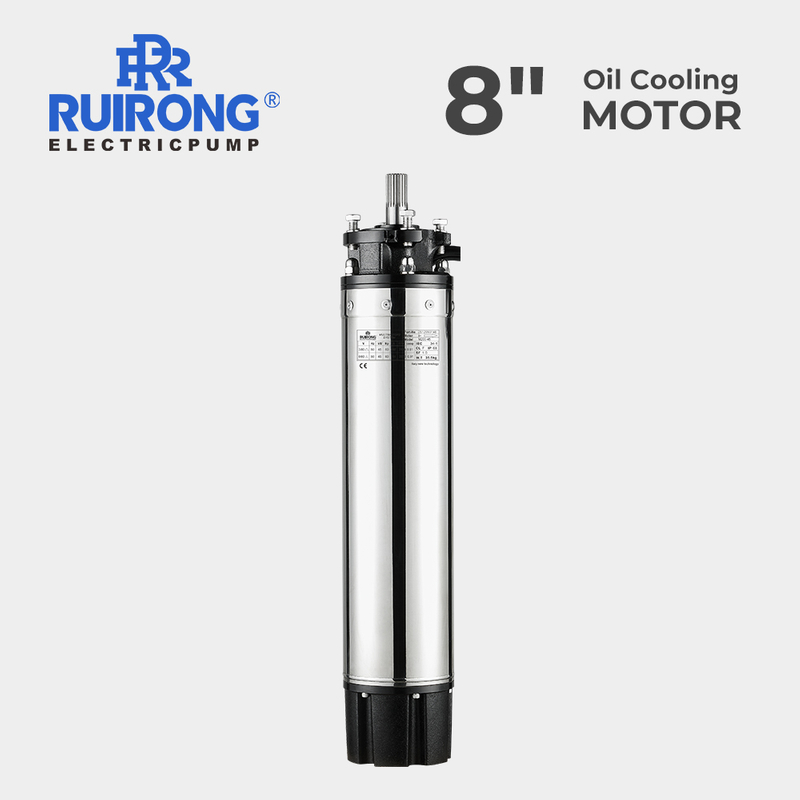

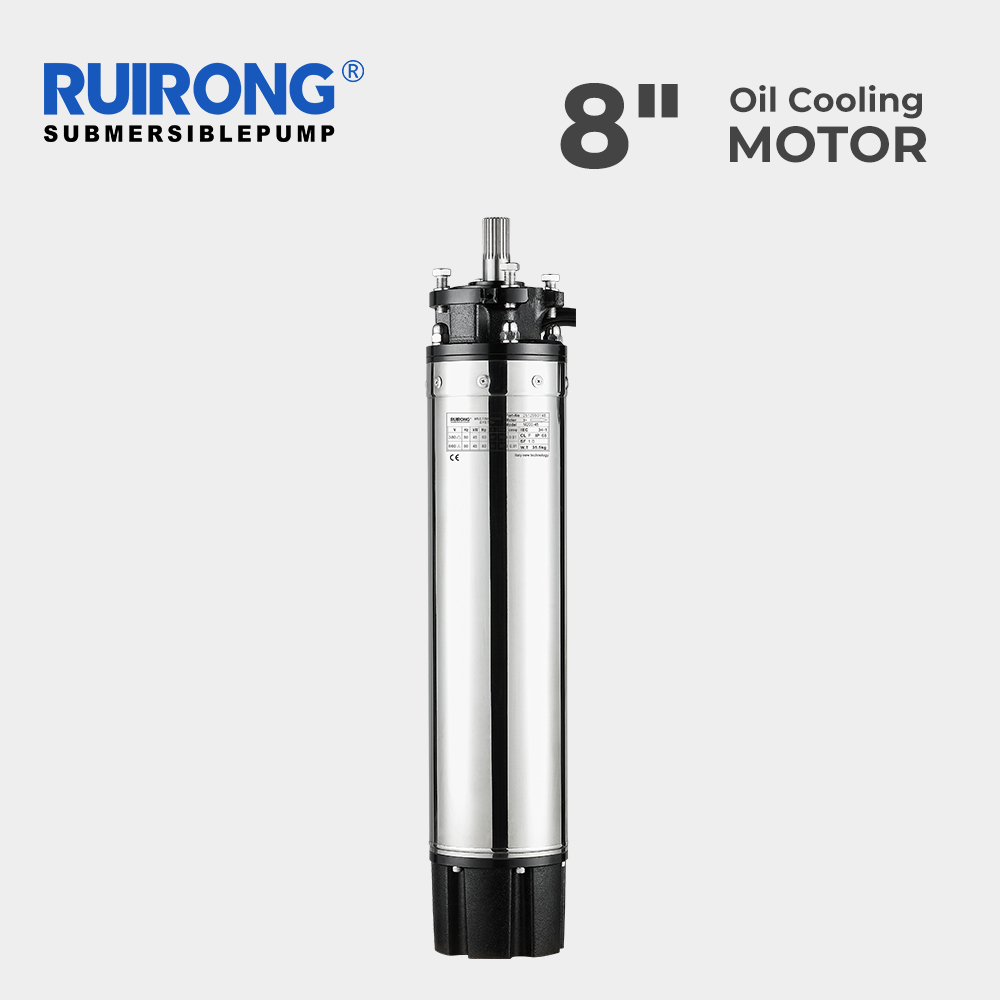

M200
RUIRONG
1. The motor is filled with oil, providing efficient cooling and lubrication for optimal performance.
2. The motor winding utilizes traditional enameled wire, offering superior electrical performance compared to water-filled wire.
3. Equipped with ball bearings for a simple, reliable design and an extended service life.
4. Available power range: 26kW to 75kW, compatible with 380V 50Hz and 380V/440V/460V/480V 60Hz systems.
5. Installation and connection dimensions adhere to NEMA standards, featuring a maximum outer diameter of 197 mm.
| Three-phase 380/415V 50Hz | |||||||
| Model | kW | HP | Current(A) | CosΦ | rpm | L(mm) | W(Kg) |
| M200-26 | 26 | 35 | 54 | 0.90 | 2870 | 1007 | 120 |
| M200-30 | 30 | 40 | 61 | 0.91 | 2870 | 1047 | 128 |
| M200-37 | 37 | 50 | 72.5 | 0.91 | 2870 | 1117 | 143 |
| M200-45 | 45 | 60 | 88 | 0.91 | 2870 | 1187 | 161 |
| M200-55 | 55 | 75 | 106 | 0.91 | 2870 | 1257 | 176 |
| M200-64 | 64 | 85 | 123 | 0.91 | 2870 | 1337 | 193 |
| M200-75 | 75 | 100 | 145 | 0.91 | 2870 | 1417 | 207.5 |
When using a variable frequency drive, the normal operating output voltage frequency range is maintained between 35Hz and the rated frequency, and the starting frequency is not less than 35Hz (for a motor with a rated frequency of 50Hz), or 40Hz (for a motor with a rated frequency of 60Hz), and the time from the starting voltage frequency to the rated voltage frequency does not exceed 10 seconds.
