If you've ever relied on a deep well for your home's water supply, you've probably heard the term "control box" thrown around—but what does it actually do? Most people focus on the pump itself and overlook the control box entirely. That's a mistake. The submersible pump control box is the brain behind the operation, managing startup, protection, and performance in ways that keep your system running reliably for years.
This guide breaks down exactly how a submersible pump control box works, what's inside it, and what to look for when choosing one for your system.

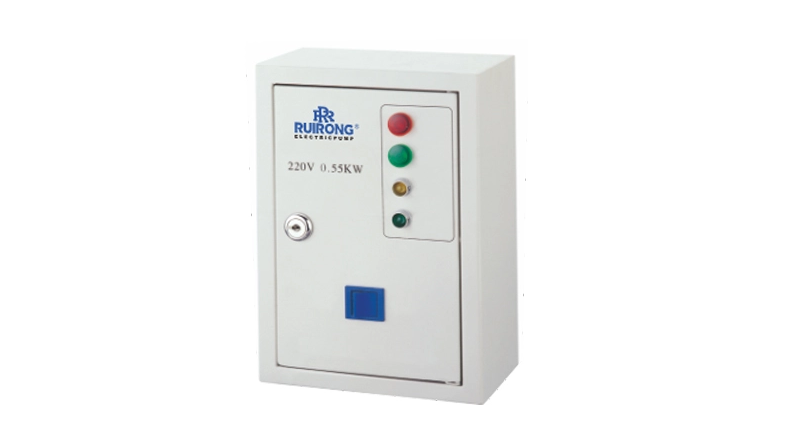

A submersible pump control box is an electrical unit installed above ground that manages the operation of a submersible water pump. It works in conjunction with the pump motor—typically a two-wire or three-wire motor—to regulate starting current, protect against electrical faults, and ensure smooth operation.
Control boxes are most commonly associated with three-wire submersible pumps, which require an external starting component. Two-wire pumps have their starting components built directly into the motor, so they don't need a separate control box.
Opening up a deep well pump control box reveals several important components working in coordination. Here's a breakdown of the main parts:
Component | Function |
|---|---|
Start capacitor | Provides the extra electrical boost needed to start the motor |
Run capacitor | Maintains consistent motor speed once running |
Start relay (or switch) | Disconnects the start capacitor once the motor reaches operating speed |
Overload protector | Shuts down the motor if it overheats or draws excessive current |
Wiring terminals | Connection points for the pump, power supply, and pressure switch |
Each component plays a specific role. Without the start capacitor, for example, the motor may hum but fail to start. Without the overload protector, a faulty pump could overheat and burn out completely.
Understanding the sequence of events during pump startup makes the whole system easier to grasp.
When water pressure in your system drops below a set threshold—say, when you open a faucet—the pressure switch closes and sends a signal to the control box to activate the pump.
Starting a submersible motor requires significantly more current than running one. The start capacitor stores and releases a burst of electrical energy that gives the motor the torque it needs to begin rotating.
Within fractions of a second, the motor accelerates to its normal running speed. At this point, the motor only needs a fraction of the startup current to keep spinning.
Once the motor reaches roughly 75% of its full speed, the start relay automatically disconnects the start capacitor from the circuit. The run capacitor takes over, maintaining smooth and efficient motor operation.
Throughout operation, the overload protector monitors the motor's current draw and temperature. If something goes wrong—a blocked impeller, a dry-run condition, or a voltage spike—the overload protector trips and shuts the system down before serious damage occurs.
When pressure reaches the upper set point on the pressure switch, the circuit opens and the pump stops. The control box resets and waits for the next cycle.
One of the most common points of confusion when selecting a submersible water pump control box is understanding the difference between two-wire and three-wire configurations.
Feature | Two-Wire System | Three-Wire System |
|---|---|---|
Control box required | No | Yes |
Starting components location | Built into the motor | Inside the control box |
Ease of installation | Simpler | Slightly more complex |
Ease of maintenance | Harder (motor must be pulled) | Easier (components above ground) |
Common application | Shallower wells, smaller pumps | Deeper wells, larger pumps |
Three-wire systems with an external control box are generally preferred for deeper applications and larger motors. The main advantage: if the start capacitor or relay fails, you simply replace a component in the above-ground control box—no need to pull the pump from the well.
Selecting the wrong control box can damage your pump motor or cause repeated failures. Here are the key factors to match:
Horsepower (HP) rating: The control box must match the motor's HP exactly. A 1 HP motor needs a 1 HP control box.
Voltage: Match the control box voltage (115V or 230V) to your power supply and pump motor specifications.
Phase: Most residential systems use single-phase power, while commercial or agricultural setups may require three-phase.
Brand compatibility: Some manufacturers recommend or require brand-matched components for warranty compliance.
Ruirong Pump (ruirongpump.com), a manufacturer with over 30 years of experience in submersible pump technology, offers a range of submersible motors and controllers designed for compatibility across residential and commercial applications. Matching your pump and control components from a reliable manufacturer reduces the risk of compatibility issues down the line.
Symptom | Likely Cause | What to Check |
|---|---|---|
Pump hums but won't start | Failed start capacitor | Replace start capacitor |
Pump trips overload frequently | Motor overheating or overloaded | Check water level, voltage, and motor draw |
Pump runs but delivers low pressure | Run capacitor weakening | Test and replace run capacitor |
Burning smell from control box | Wiring fault or failed relay | Inspect wiring and relay contacts |
Pump won't turn on at all | Blown fuse or failed pressure switch | Check fuse, pressure switch, and connections |
Knowing these symptoms saves time during troubleshooting and helps you avoid unnecessary pump pulls from the well.
No. Only three-wire submersible pumps require an external control box. Two-wire pumps have their starting components built into the motor housing itself.
Not necessarily. The control box must match your pump motor's horsepower, voltage, and phase rating. Using a mismatched control box can cause motor damage or premature failure.
Control boxes should be mounted above ground, in a dry, protected location—typically near the pressure tank or electrical panel. They should not be exposed to moisture or extreme temperatures.
With proper installation and a compatible motor, a quality control box can last 10 to 15 years or more. Capacitors tend to be the first components to fail and are inexpensive to replace.
They serve different functions. The pressure switch monitors water pressure and signals the system to start or stop the pump. The control box manages the electrical aspects of motor startup and protection. Both are essential parts of a complete system.
Yes, in most cases. Capacitors are replaceable components inside the control box. If only the capacitor has failed, replacing it is far more cost-effective than replacing the entire unit.
The submersible pump control box does a lot of quiet, invisible work every time water flows through your pipes. Understanding its components and function puts you in a better position to maintain your system, diagnose problems early, and make smarter purchasing decisions.
When selecting components, prioritize quality and compatibility. Pair your pump with a properly rated control box from a reputable manufacturer, inspect the system periodically, and replace worn capacitors before they cause bigger problems. A well-matched, well-maintained system will deliver years of consistent, reliable performance.
