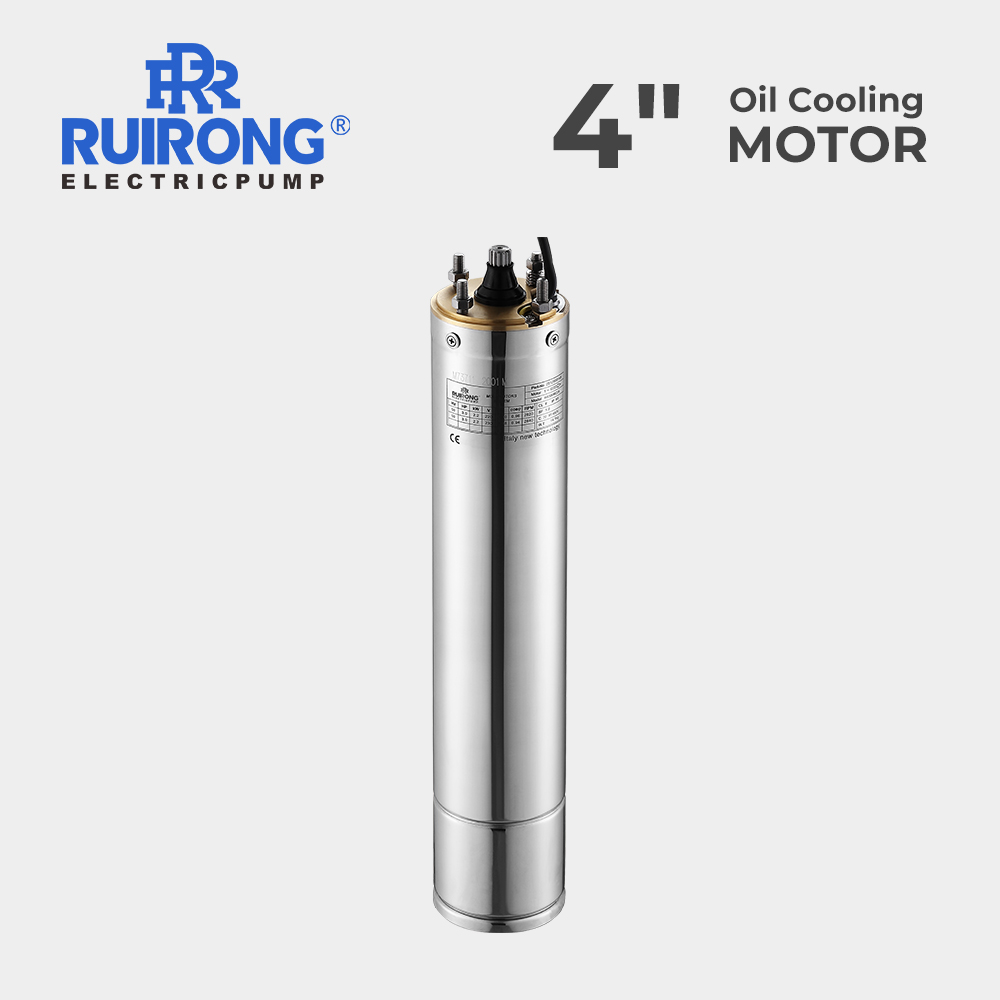

M95
RUIRONG
1. High-Quality and Accurate Mechanical Seals
2. Durable Stainless Steel 304 Motor Housing and Bottom Cover
3. Energy-Efficient Cold-Rolled Silicon Steel Sheets for Laminations—Offers Low Loss and Excellent Magnetic Conductivity
4. Silent, High-Precision Bearings Ensure Long Service Life and Stable Pump Operation
5. H-Class (200 Degrees) High-Temperature Resistant Pure Copper Wire Stator—Features Low Temperature Rise, Ensures Safety and Reliability, Ideal for Continuous Long-Term Use, Eco-Friendly and Energy-Saving

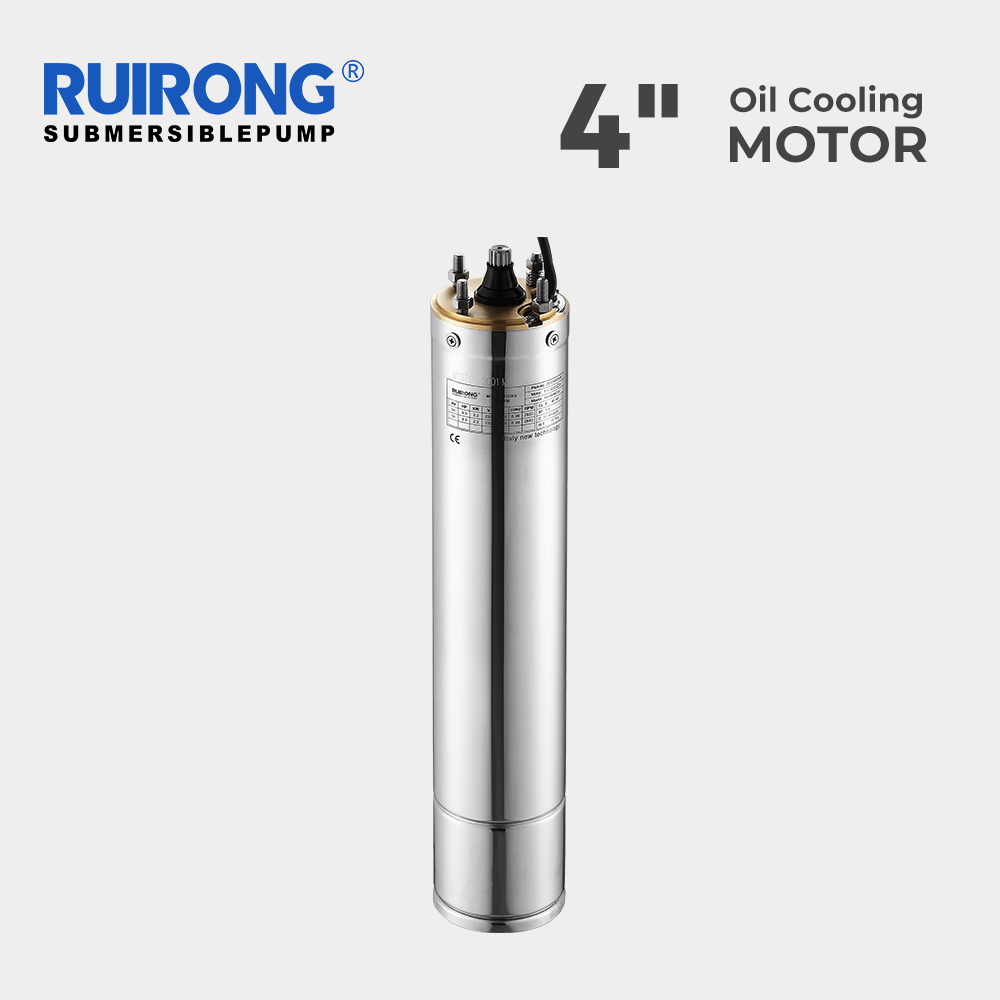

6. Versatile 4-Inch Single-Phase Motor Supports Wide Voltage Range from 160V to 220V
7. Convenient Plug-Type Cable Design for Easy Cable Replacement
| Single-phase 220/230V 50Hz | ||||||||
| Model | kW | HP | Current(A) | μF | CosΦ | rpm | L(mm) | W(Kg) |
| M95S-0.37 | 0.37 | 0.5 | 3.6 | 20 | 0.93 | 2850 | 316 | 8 |
| M95S-0.55 | 0.55 | 0.75 | 4.8 | 25 | 0.94 | 2850 | 336 | 8 |
| M95S-0.75 | 0.75 | 1 | 6.3 | 35 | 0.95 | 2850 | 361 | 9 |
| M95S-0.92 | 0.92 | 1.25 | 7 | 40 | 0.98 | 2850 | 376 | - |
| M95S-1.1 | 1.1 | 1.5 | 8.6 | 45 | 0.96 | 2850 | 391 | 11 |
| M95S-1.3 | 1.3 | 1.75 | 9 | 50 | 0.99 | 2850 | 411 | - |
| M95S-1.5 | 1.5 | 2 | 10 | 55 | 0.97 | 2850 | 435 | 12 |
| M95S-1.8 | 1.8 | 2.5 | 12 | 65 | 0.99 | 2850 | 455 | - |
| M95S-2.2 | 2.2 | 3 | 17 | 70 | 0.97 | 2850 | 480 | 14 |
| M95S-2.6 | 2.6 | 3.5 | 17 | 80 | 0.99 | 2820 | 510 | - |
| M95S-3.0 | 3 | 4 | 20 | 80 | 0.97 | 2850 | 519 | 17.1 |
| M95S-4.0 | 4 | 5.5 | 27 | 120 | 0.97 | 2850 | 646 | - |
| M95S-5.5 | 5.5 | 7.5 | 35.3 | 130 | 0.96 | 2850 | 696 | - |
| Three-phase 380/415V 50Hz | |||||||
| Model | kW | HP | Current(A) | CosΦ | rpm | L(mm) | W(Kg) |
| M95-0.55 | 0.55 | 0.75 | 1.7 | 0.8 | 2850 | 366 | 8 |
| M95-0.75 | 0.75 | 1 | 2.2 | 0.81 | 2850 | 386 | 9 |
| M95-0.92 | 0.92 | 1.25 | 2.7 | 0.79 | 2850 | 396 | - |
| M95-1.1 | 1.1 | 1.5 | 2.9 | 0.82 | 2850 | 406 | 10 |
| M95-1.3 | 1.3 | 1.75 | 3.6 | 0.79 | 2850 | 426 | - |
| M95-1.5 | 1.5 | 2 | 3.9 | 0.82 | 2850 | 441 | 11 |
| M95-1.8 | 1.8 | 2.5 | 4.8 | 0.78 | 2850 | 471 | - |
| M95-2.2 | 2.2 | 3 | 5.6 | 0.83 | 2850 | 501 | 14 |
| M95-2.6 | 2.6 | 3.5 | 6.8 | 0.81 | 2850 | 531 | - |
| M95-3.0 | 3 | 4 | 7.3 | 0.83 | 2850 | 561 | 19 |
| M95-4.0 | 4 | 5.5 | 9.5 | 0.83 | 2850 | 601 | 21 |
| M95-5.5 | 5.5 | 7.5 | 13 | 0.85 | 2850 | 721 | 25 |
| M95-7.5 | 7.5 | 10 | 16.9 | 0.85 | 2850 | 841 | 31 |
| M95-9.2 | 9.2 | 12.5 | 21 | 0.85 | 2850 | 881 | 33.7 |
When using a variable frequency drive, the normal operating output voltage frequency range is maintained between 35Hz and the rated frequency, and the starting frequency is not less than 35Hz (for a motor with a rated frequency of 50Hz), or 40Hz (for a motor with a rated frequency of 60Hz), and the time from the starting voltage frequency to the rated voltage frequency does not exceed 10 seconds.
