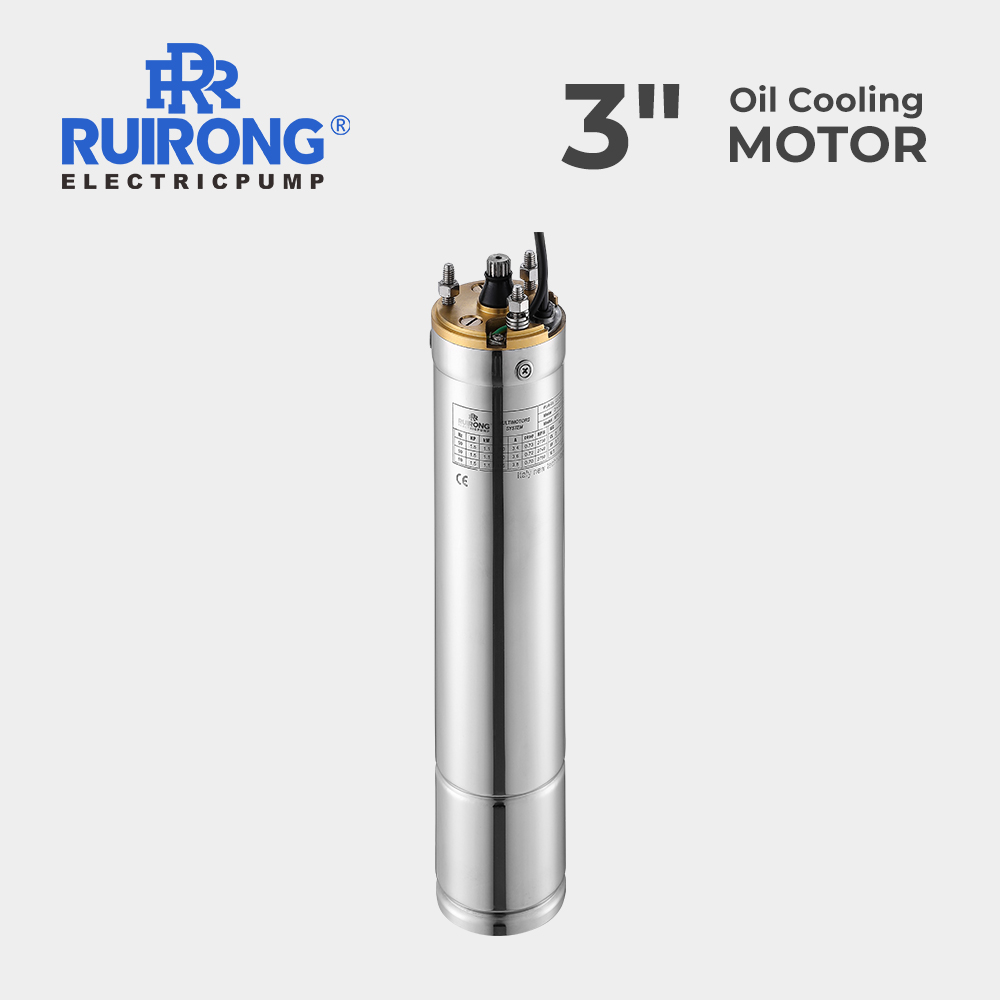

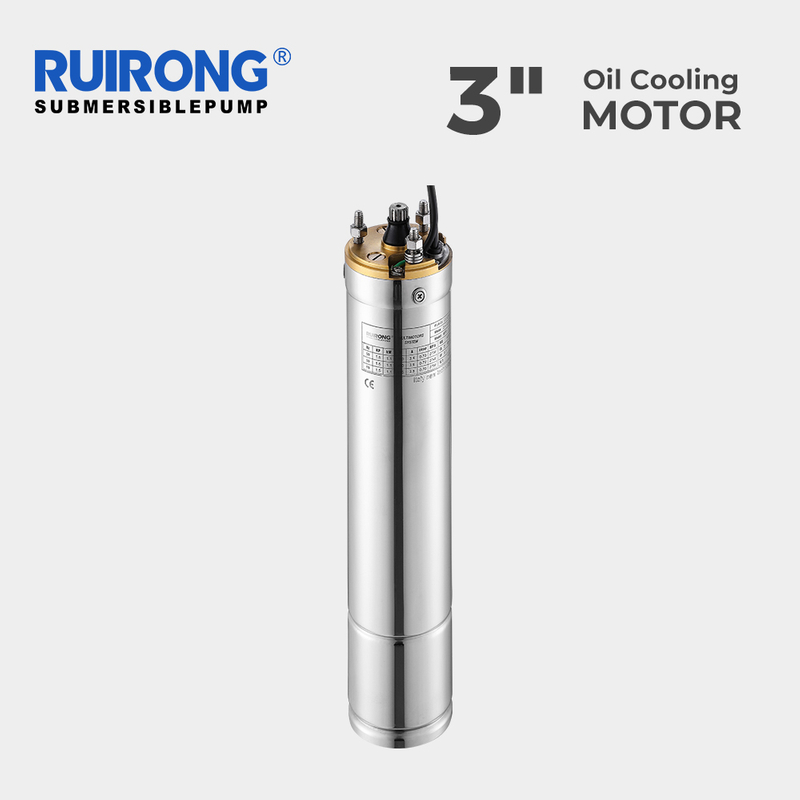

M75
RUIRONG
1. Reliable and Efficient Mechanical Seals
2. Durable Motor Housing and Bottom Cover Made from Stainless Steel 304
3. High-Efficiency Cold-Rolled Silicon Steel Sheets for Exceptional Magnetic Conductivity and Minimal Energy Loss
4. Long-Lasting, High-Precision Silent Bearings for Stable Pump Operation
5. Temperature-Resistant H Class (200 Degrees) Pure Copper Wire Stator: Ensures Low Temperature Rise and Safe, Reliable, Energy-Efficient Operation Suitable for Continuous Use
6. Low Starting Voltage of Just 180V for Enhanced Performance
| Single-phase 220/230V 50Hz | ||||||||
| Model | kW | HP | Current(A) | μF | CosΦ | rpm | L(mm) | W(Kg) |
| M75S-0.25 | 0.25 | 0.33 | 2.5 | 10 | 0.86 | 2800 | 357 | 6 |
| M75S-0.37 | 0.37 | 0.5 | 3.3 | 012 | 0.91 | 2800 | 377 | 6.3 |
| M75S-0.55 | 0.55 | 0.75 | 4.8 | 15 | 0.91 | 2800 | 397 | 6.7 |
| M75S-0.75 | 0.75 | 1 | 6.1 | 20 | 0.95 | 2800 | 437 | 7.7 |
| M75S-1.1 | 1.1 | 1.5 | 8 | 30 | 0.99 | 2800 | 477 | 8.4 |
| Three-phase 380/415V 50Hz | |||||||
| Model | kW | HP | Current(A) | CosΦ | rpm | L(mm) | W(Kg) |
| M75-0.37 | 0.37 | 0.5 | 1.8 | 0.63 | 280 | 354 | 6.1 |
| M75-0.55 | 0.55 | 0.75 | 2.1 | 0.65 | 2780 | 374 | 6.5 |
| M75-0.75 | 0.75 | 1 | 2.5 | 0.68 | 2780 | 394 | 6.8 |
| M75-1.1 | 1.1 | 1.5 | 3.5 | 0.7 | 2780 | 434 | 7.8 |
| M75-1.5 | 1.5 | 2 | 4.5 | 0.8 | 2800 | 474 | 8.8 |
When using a variable frequency drive, the normal operating output voltage frequency range is maintained between 35Hz and the rated frequency, and the starting frequency is not less than 35Hz (for a motor with a rated frequency of 50Hz), or 40Hz (for a motor with a rated frequency of 60Hz), and the time from the starting voltage frequency to the rated voltage frequency does not exceed 10 seconds.
