| Quantity: | |
|---|---|

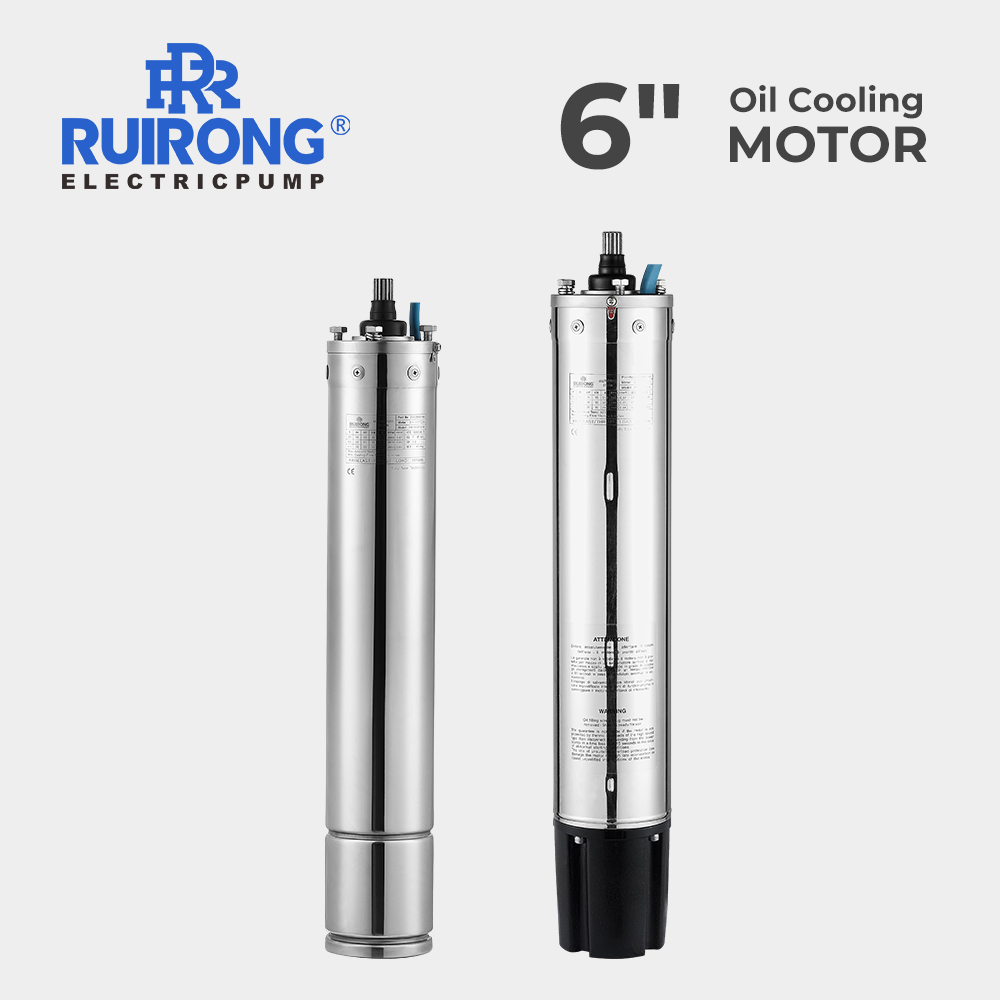

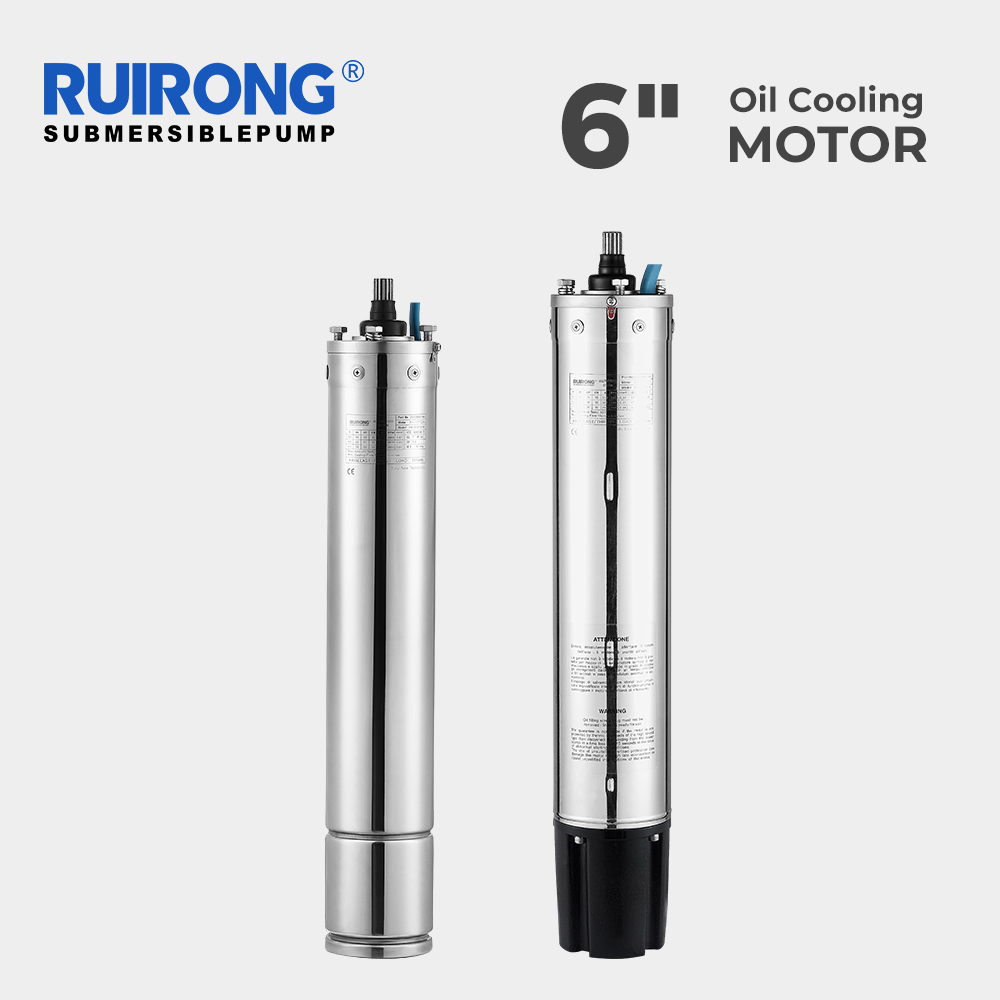

M150
RUIRONG
1. Precision Italian Mechanical Seals: Efficiency and Reliability
2. Durable Stainless Steel Construction: Motor Housing and Bottom Cover Made of 304 Stainless Steel
3. Advanced Silicon Steel Lamination: Cold-Rolled for High Efficiency, Low Loss, and Superior Magnetic Conductivity
4. Long-Lasting Performance: High-Precision Silent Bearings for Enhanced Pump Longevity and Stability
5. High-Temperature Resilience: H-Class (200 Degrees) Pure Copper Wire Stator for Safe, Reliable, and Eco-Friendly Long-Term Use
6. Low Starting Voltage: Operates Efficiently at Just 180V
| Single-phase 220/230V 50Hz | ||||||||
| Model | kW | HP | Current(A) | μF | CosΦ | rpm | L(mm) | W(Kg) |
| MS150-3.0 | 3 | 4 | 19.3 | 70 | 0.98 | 2850 | 648 | - |
| MS150-4.0 | 4 | 5.5 | 23.3 | 100 | 0.93 | 2850 | 678 | - |
| MS150-5.5 | 5.5 | 7.5 | 34.5 | 120 | 0.99 | 2850 | 713 | - |
| Three-phase 380/415V 50Hz | |||||||
| Model | kW | HP | Current(A) | CosΦ | rpm | L(mm) | W(Kg) |
| M150-2.2 | 2.2 | 3 | 5.6 | 0.87 | 2850 | 603 | 26.1 |
| M150-3.0 | 3 | 4 | 6.9 | 0.87 | 2850 | 623 | 26.1 |
| M150-4.0 | 4 | 5.5 | 9.1 | 0.86 | 2850 | 648 | 28.4 |
| M150-5.5 | 5.5 | 7.5 | 12.3 | 0.85 | 2850 | 678 | 31.1 |
| M150-7.5 | 7.5 | 10 | 16.5 | 0.85 | 2850 | 713 | 34.4 |
| M150-9.2 | 9.2 | 12.5 | 20.2 | 0.86 | 2850 | 753 | 38.1 |
| M150-11 | 11 | 15 | 23.6 | 0.87 | 2860 | 788 | 41.4 |
| M150-13 | 13 | 17.5 | 27.6 | 0.87 | 2860 | 818 | 44.2 |
| M150-15 | 15 | 20 | 31.8 | 0.87 | 2860 | 868 | 58.3 |
| M150-18.5 | 18.5 | 25 | 38.2 | 0.88 | 2860 | 898 | 61.4 |
| M150-22 | 22 | 30 | 45.2 | 0.88 | 2860 | 938 | 69.4 |
| M150-26 | 26 | 35 | 52 | 0.87 | 2860 | 993 | 77 |
| M150-30 | 30 | 40 | 58 | 0.87 | 2860 | 1053 | 84 |
| M150-37 | 37 | 50 | 72.5 | 0.87 | 2850 | 1118 | 92 |
| M150-45 | 45 | 60 | 91.4 | 0.88 | 2850 | 1178 | 99.5 |
When using a variable frequency drive, the normal operating output voltage frequency range is maintained between 35Hz and the rated frequency, and the starting frequency is not less than 35Hz (for a motor with a rated frequency of 50Hz), or 40Hz (for a motor with a rated frequency of 60Hz), and the time from the starting voltage frequency to the rated voltage frequency does not exceed 10 seconds.
