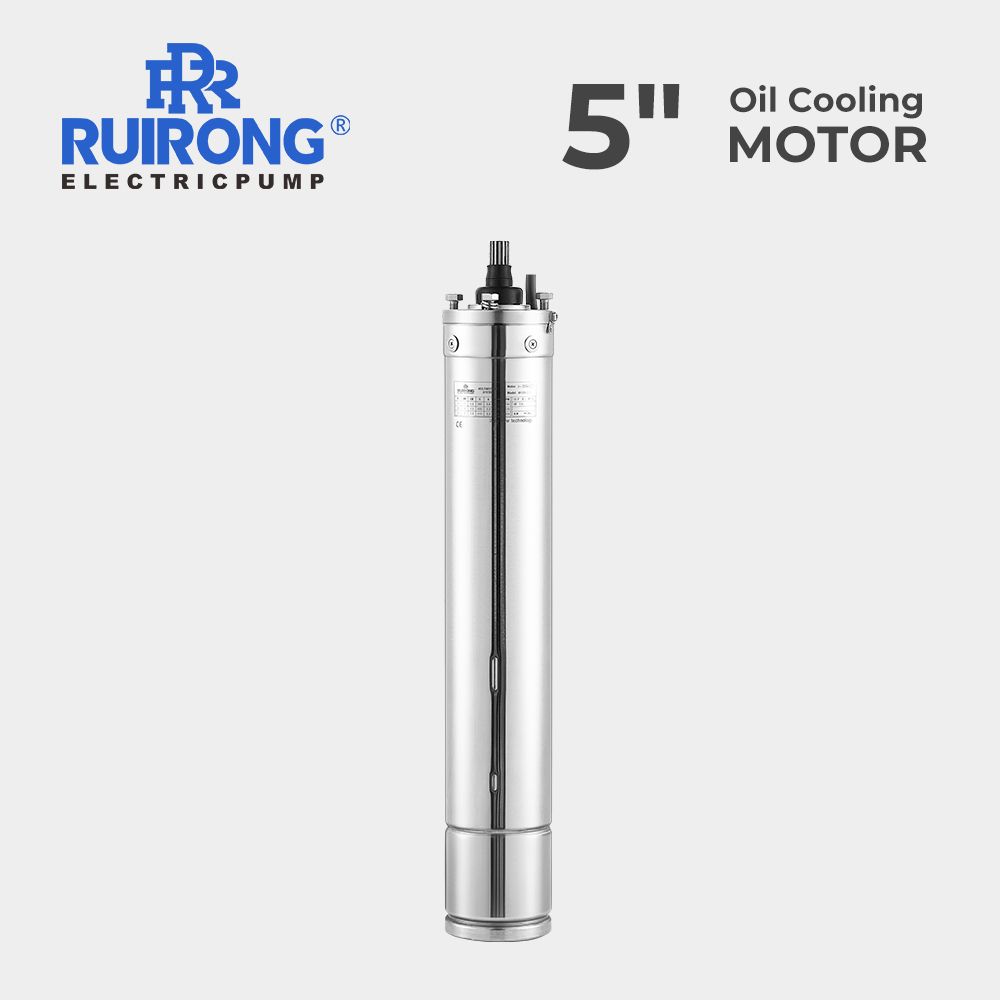

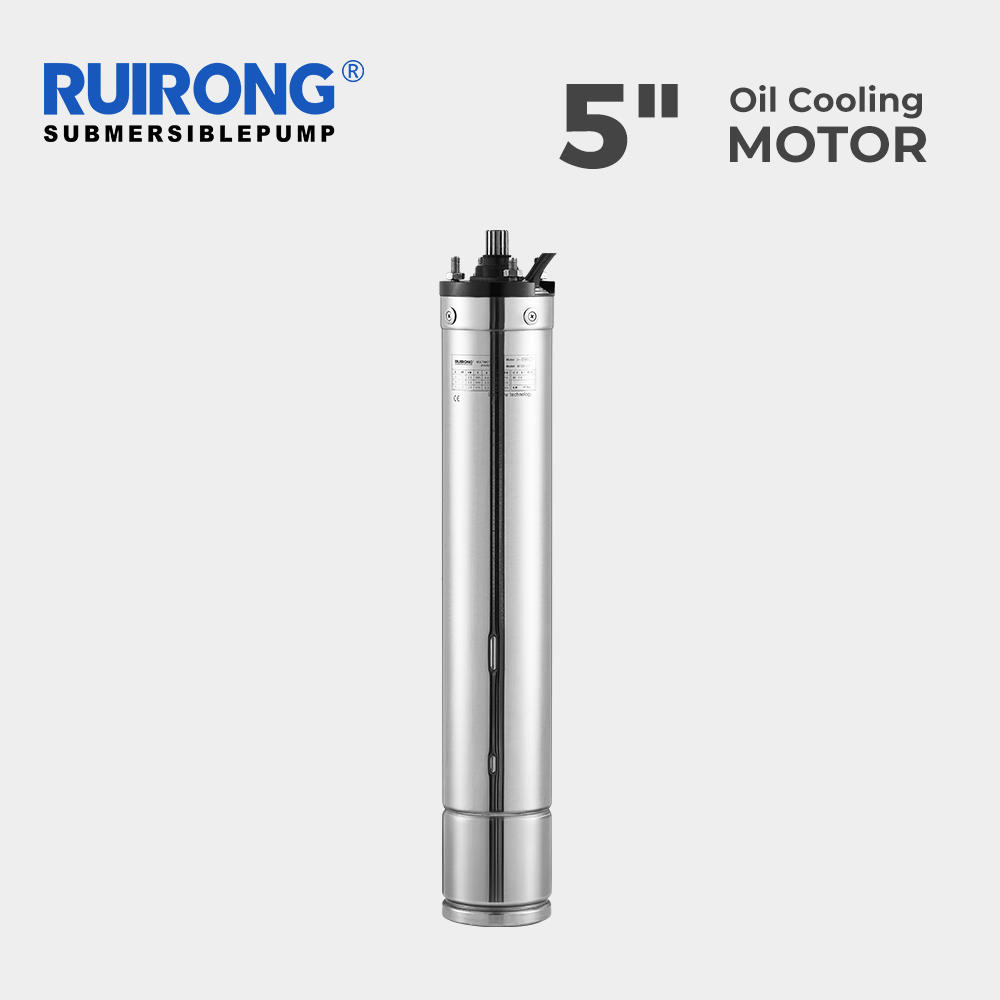

M125
RUIRONG
1. High-Performance Italian Mechanical Seals
2. Durable Stainless Steel 304 Motor Housing and Bottom Cover
3. Efficient Cold-Rolled Silicon Steel Laminations for Optimal Magnetic Conductivity
4. Long-Lasting, Stable Performance with High-Precision Silent Bearings
5. Reliable H-Class Stator with Temperature-Resistant Pure Copper Wire for Continuous, Energy-Efficient Operation
| Single-phase 220/230V 50Hz | ||||||||
| Model | kW | HP | Current(A) | μF | CosΦ | rpm | L(mm) | W(Kg) |
| M125S-2.2 | 2.2 | 3 | 14.5 | 60 | 0.99 | 2840 | 587 | - |
| M125S-3.0 | 3 | 4 | 19.5 | 70 | 0.99 | 2840 | 627 | - |
| M125S-4.0 | 4 | 5.5 | 25 | 90 | 0.99 | 2840 | 677 | - |
| M125S-5.5 | 5.5 | 7.5 | 34.5 | 120 | 0.98 | 2840 | 742 | - |
| Three-phase 380/415V 50Hz | |||||||
| Model | kW | HP | Current(A) | CosΦ | rpm | L(mm) | W(Kg) |
| M125-2.2 | 2.2 | 3 | 5.5 | 0.83 | 2800 | 557 | 18.1 |
| M125-3.0 | 3 | 4 | 7.5 | 0.83 | 2790 | 587 | 20.2 |
| M125-4.0 | 4 | 5.5 | 9.5 | 0.84 | 2800 | 627 | 23 |
| M125-5.5 | 5.5 | 7.5 | 12.8 | 0.84 | 2810 | 677 | 26.4 |
| M125-7.5 | 7.5 | 10 | 17.2 | 0.84 | 2810 | 742 | 30.3 |
| M125-9.2 | 9.2 | 12.5 | 20.7 | 0.85 | 2850 | 812 | 37 |
| M125-11 | 11 | 15 | 24.6 | 0.85 | 2850 | 867 | 40.4 |
| M125-13 | 13 | 17.5 | 29 | 0.85 | 2850 | 917 | 43 |
| M125-15 | 15 | 20 | 34.2 | 0.82 | 2850 | 967 | 46 |
When using a variable frequency drive, the normal operating output voltage frequency range is maintained between 35Hz and the rated frequency, and the starting frequency is not less than 35Hz (for a motor with a rated frequency of 50Hz), or 40Hz (for a motor with a rated frequency of 60Hz), and the time from the starting voltage frequency to the rated voltage frequency does not exceed 10 seconds.
