Wiring A Submersible Pump Control Box

Views: 0     Author: Site Editor     Publish Time: 2026-03-17      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

A submersible pump control box sits at the heart of your water system. Get the wiring right, and your pump runs efficiently for years. Get it wrong, and you risk damaging a motor that costs far more to replace than the box itself.


This guide walks you through the wiring process step by step—covering everything from safety checks to final testing—so you can get your submersible well pump control box up and running with confidence.


What You Need Before You Start

Gather your tools and materials before touching a single wire. You'll need:

  • A screwdriver (flathead and Phillips)

  • Wire strippers

  • A multimeter

  • Electrical tape or heat shrink tubing

  • The wiring diagram that came with your control box

That last item matters more than people realize. Every submersible pump control box is slightly different. Always cross-reference the manufacturer's diagram before making any connections.


Safety first: Switch off the circuit breaker that powers the pump. Use your multimeter to confirm there is zero voltage at the terminals before proceeding.


Understanding the Key Components

A standard submersible well pump control box contains three main components:

  • Start capacitor – provides the extra torque needed to start the motor

  • Run capacitor – keeps the motor running efficiently once it's up to speed

  • Relay (or potential relay) – switches the start capacitor out of the circuit once the motor reaches running speed

1

The three-line pump system is equipped with capacitors. While the capacitors of the two-line pump are mostly built into the motor and do not require additional configuration of capacitors. If you want your pump to receive more comprehensive protection, then you need to configure a control box with comprehensive protection functions (such as overload protection, overcurrent protection, overheating protection, phase loss protection, water level control, etc.).

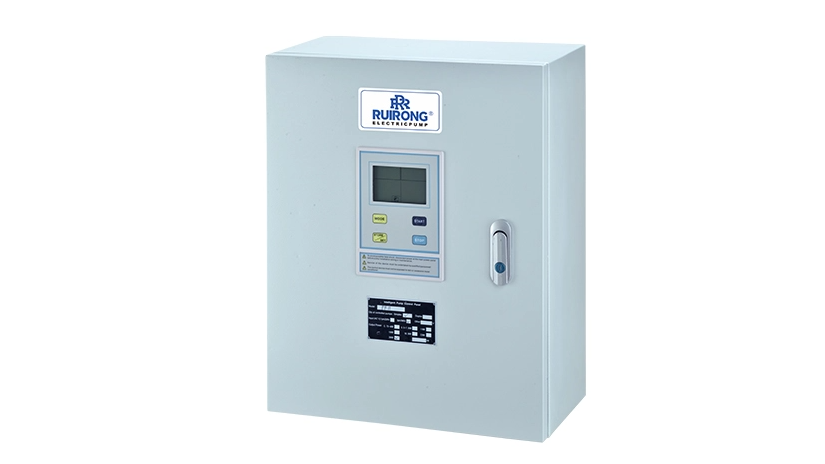

submersible borehole pump control box


Step-by-Step Wiring Instructions

Step 1: Identify Your Terminals

Open the control box and locate the labeled terminals. Most boxes use standard labels:

  • L1 and L2 – line voltage inputs (power supply)

  • R (or Run) – connects to the run winding of the pump motor

  • S (or Start) – connects to the start winding

  • Y (or Common) – the common wire

Match these to the corresponding wires running from your pump. Pump wire colors vary by manufacturer, so always confirm with your pump's wiring diagram.


Step 2: Connect the Power Supply

Feed the power supply wires—typically black and white for a 240V single-phase system—into the L1 and L2 terminals. Secure them firmly with the terminal screws. A loose connection here is a fire risk.


Run the ground wire to the grounding terminal inside the box. Never skip the ground connection.


Step 3: Connect the Pump Motor Wires

With the pump wires identified, connect them to their corresponding terminals:

  • The yellow wire (common) connects to the Y terminal

  • The red wire (start winding) connects to the S terminal

  • The black wire (run winding) connects to the R terminal

Note: For the specific color connections of the pump lines and the corresponding terminals, please refer to the actual product user manual.

For a submersible borehole pump control box, the process is identical—borehole pumps use the same three-wire configuration as standard well pumps.


Step 4: Double-Check All Connections

Before closing the box, inspect every terminal. Wires should be fully inserted, with no exposed copper outside the terminal block. Tug each wire gently to confirm it is secure.


Recheck your wiring against the manufacturer's diagram one final time.


Step 5: Restore Power and Test

Close the control box cover, then restore power at the circuit breaker. Switch the pump on and listen. A correctly wired pump starts cleanly and runs at a consistent hum. Any grinding, clicking, or failure to start suggests a wiring error or a faulty component.


Use your multimeter to check the voltage at the L1 and L2 terminals while the pump is running. It should match your supply voltage within a few volts.


Common Wiring Mistakes to Avoid

  • Swapping the start and run wires – the motor will run in reverse or fail to start

  • Skipping the ground – creates a serious shock hazard

  • Using the wrong control box for your motor horsepower – always match the box rating to the motor HP

  • Ignoring the capacitor ratings – a mismatched capacitor shortens motor life significantly

1

Get Your Pump System Right From the Start

Correct wiring keeps your submersible pump running efficiently and extends the life of your motor. Take your time, follow the diagrams, and test before sealing everything up.


For reliable submersible pumps, motors, and controllers built to perform, explore the full range at Ruirong Pump—a manufacturer with 33+ years of experience delivering pump solutions worldwide.

submersible pump control box

submersible borehole pump control box

submersible well pump control box
