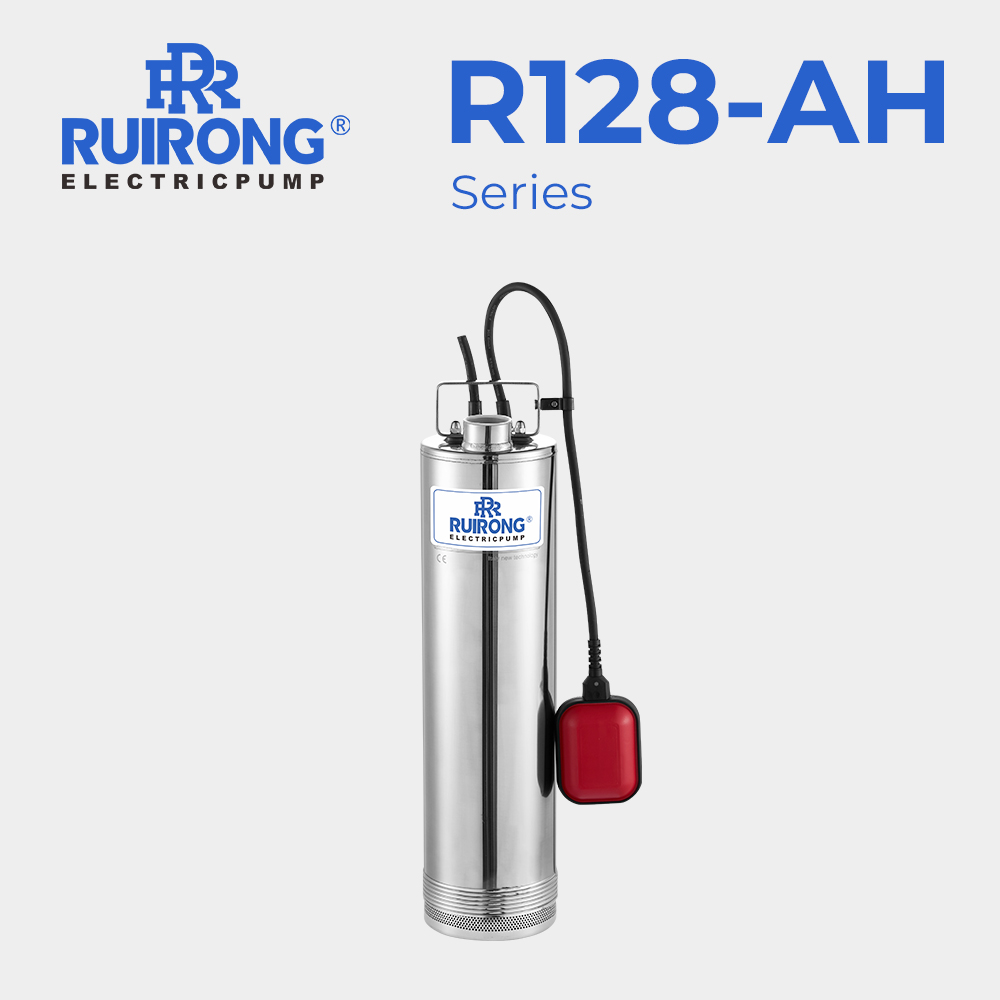

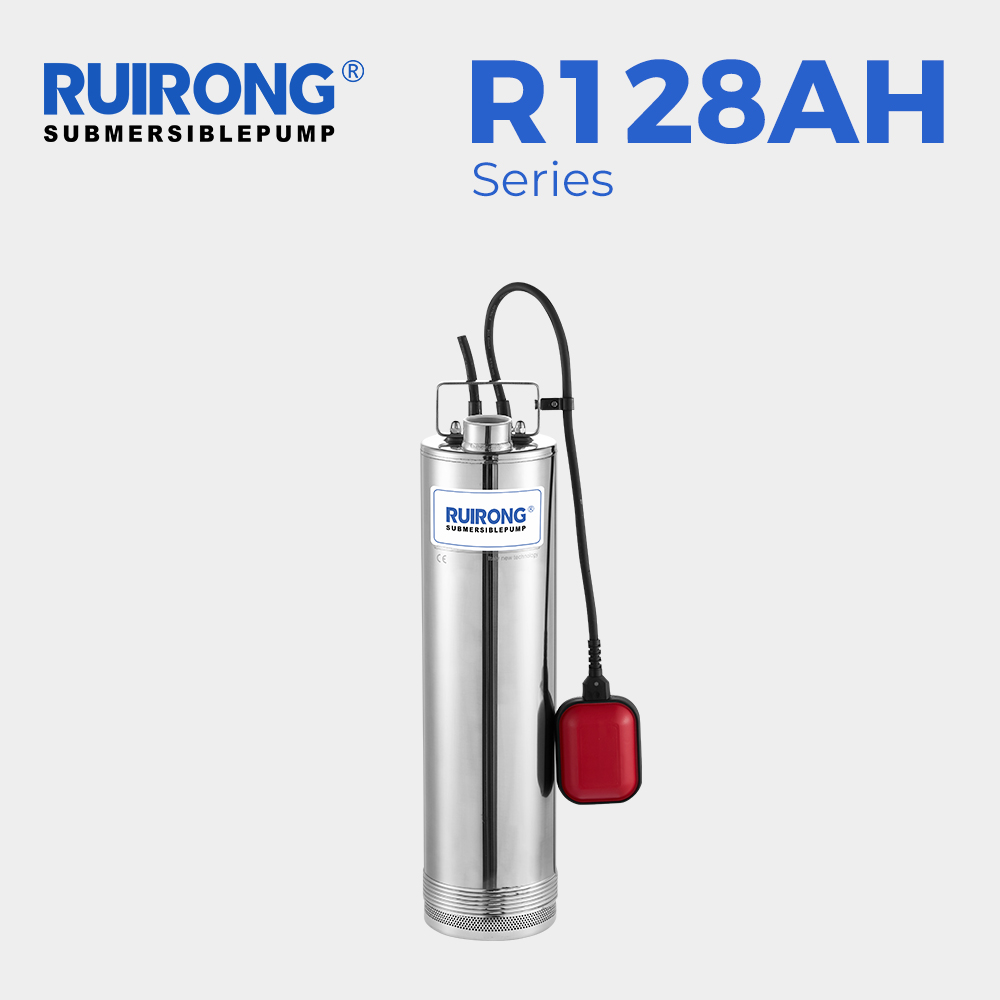

R128AH
RUIRONG
1. With Italian mechanical seal, improved sealing, longer service life
2. With sound absorption design technology, the pump can be ultra-static operation
3. Integrated design, easy operation, flexible application
4. High head, high efficiency and good durability
5. Floating impeller design, strong sand passing ability
6. The float can effectively prevent the water pump from running without water
It is very suitable for delivering clean water from private wells, residential water tanks, reservoirs, etc.
They are also the ideal choice for irrigation, sourcing water from ponds, lakes, ditches or cisterns, as well as watering of domestic gardens or rainwater harvesting. R128-AH also has light industrial use such as in car washing systems for water reuse, filtering machines or hoppers.

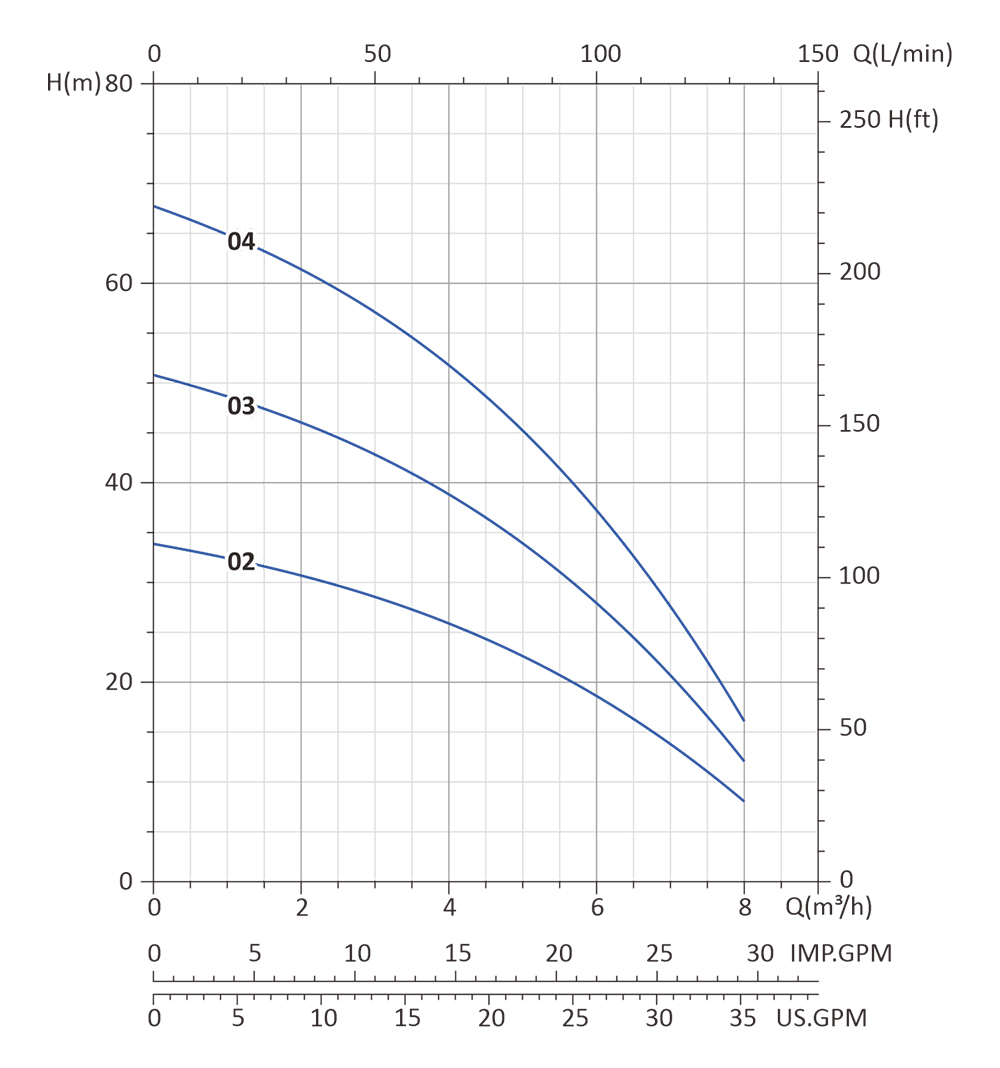

Model | Motor Power | Single Phase | Three Phase | Q | Capacity | |||||||||||
| US.GPM | 0 | 4.4 | 8.8 | 13.2 | 17.6 | 22 | 26.4 | 30.8 | 35.2 | |||||||
| m³/h | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |||||||
| L/min | 0 | 16.7 | 33.3 | 50 | 66.7 | 83.3 | 100 | 116.7 | 133.3 | |||||||
| HP | kW | A | μF | VC | A | Total head in meters | ||||||||||
| R128AH-02 | 0.8 | 0.6 | 4.2 | 20 | 450 | 2.1 | H(m) | 34 | 32 | 31 | 29 | 26 | 23 | 19 | 14 | 8 |
| R128AH-03 | 1.2 | 0.9 | 6.3 | 25 | 450 | 2.5 | 51 | 49 | 46 | 43 | 39 | 34 | 28 | 21 | 12 | |
| R128AH-04 | 1.6 | 1.2 | 8.6 | 35 | 450 | 3.4 | 68 | 65 | 61 | 57 | 52 | 45 | 37 | 28 | 16 | |
