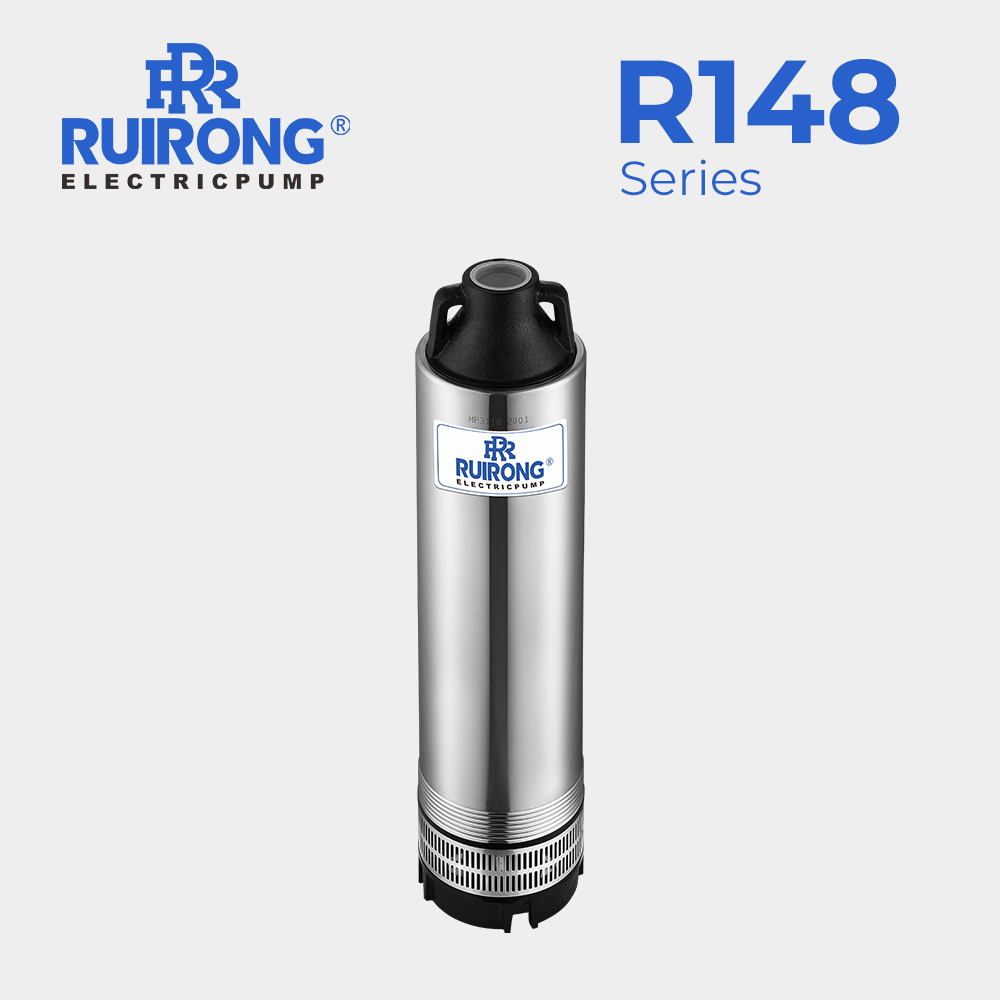

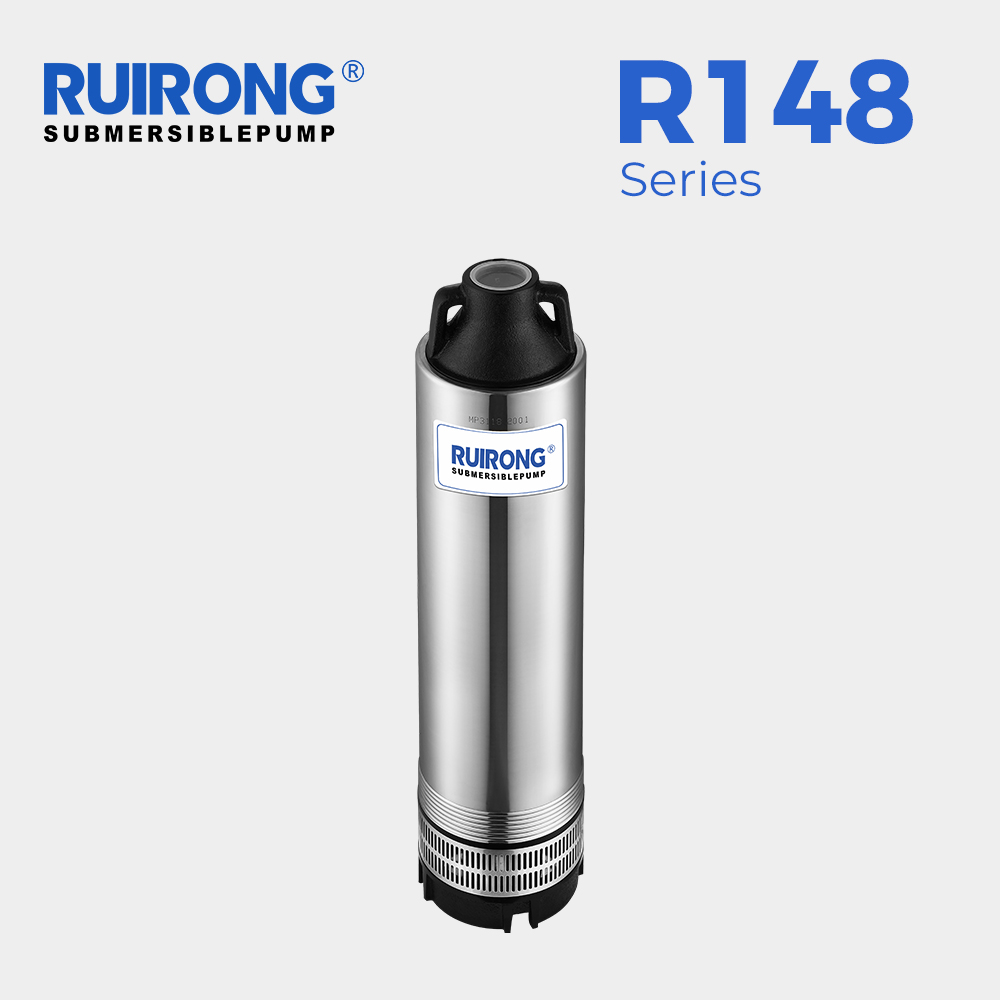

R148
RUIRONG
1. Featuring a GE-PPO diffuser, stainless steel impeller, durable shell, and sand guard net for optimal performance.
2. Equipped with an Italian mechanical seal for enhanced durability and efficiency.
3. Designed with a cast iron pump base and outlet, known for its high-quality and strength, and treated with an eco-friendly coating to ensure longevity.
4. Comes with a convenient cable and plug, making installation and maintenance hassle-free.
Discover the Benefits of Efficient Water Pumps for Agricultural Irrigation, Factories, and Household Use
motor: asynchronism, 2 poles
Protection class: Ip68
Insulation class: F
Model Single Phase | Mode Three Phase | Motor Power | Electric Current | Capacitor μF | Q | Capacity | Outlet | ||||||||||
| m³/h | 1 | 2 | 3 | 5 | 7 | 9 | 11 | 13 | |||||||||
| 1~ | 3~ | L/min | 17 | 33 | 50 | 83 | 117 | 150 | 183 | 217 | |||||||
| HP | kW | 220V | 220V | 380V | Total head in meters | ||||||||||||
| R148-4 | R148-4T | 1.5 | 1.1 | 8.8 | 5.2 | 3.6 | 35 | H(m) | 50 | 48 | 46 | 40 | 33 | 20 | 18 | 7 | 40mm G1 1/2" |
| R148-6 | R148-6T | 3 | 2.2 | 13 | 8.5 | 6 | 70 | 75 | 73 | 70 | 60 | 48 | 30 | 37 | 21 | ||
