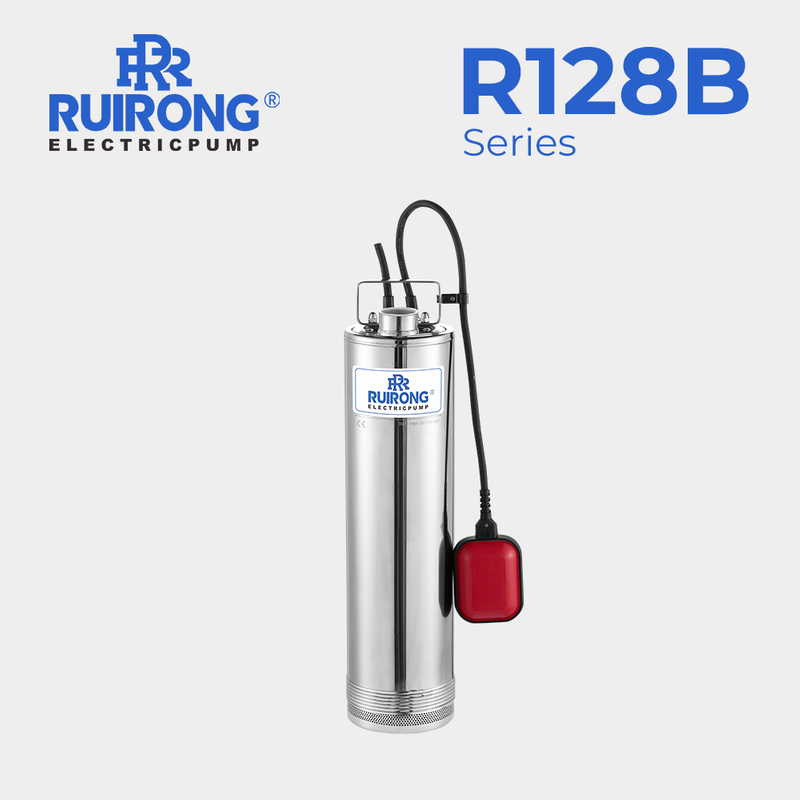

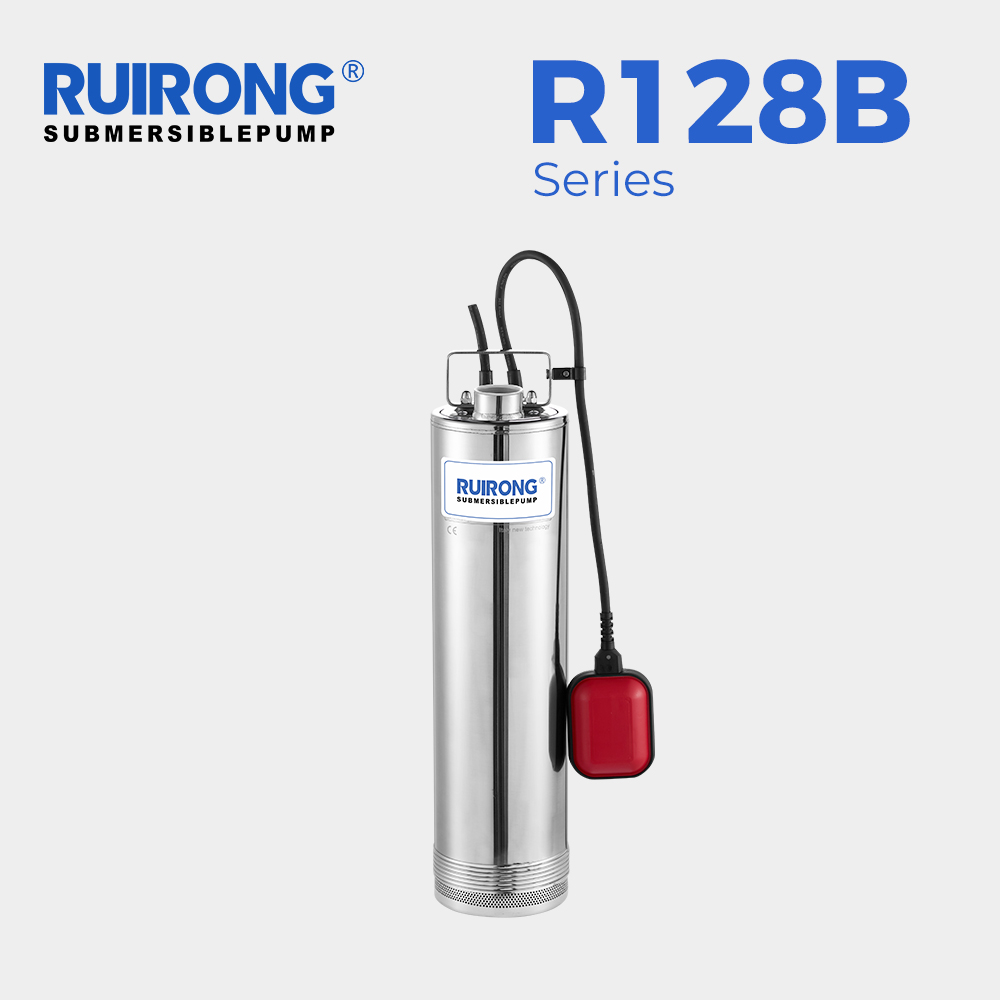

R128B
RUIRONG
1. Featuring an Italian double mechanical seal, this pump boasts enhanced sealing capabilities and an extended service life.
2. The single-phase motor includes a built-in overheating protection device for added safety and reliability.
3. Engineered with sound absorption design technology, this pump offers ultra-quiet operation for optimal performance.
4. Constructed with a stainless steel 304 impeller and a plastic diffuser, the pump delivers high head, exceptional efficiency, and outstanding durability.
5. Equipped with a float mechanism, the pump effectively prevents dry running, ensuring smooth and safe operation.
1. Efficiently Pumping Clean Water from Wells, Reservoirs, and Water Tanks
2. Water Solutions for Small-Scale Irrigation and Gardening
3. Clean Your Vehicle
Model Single Phase | Mode Three Phase | Motor Power | Single Phase | Three Phase | Q | Capacity | Outlet | ||||||||||
| m³/h | 0 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.8 | |||||||||
| L/min | 0 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | |||||||||
| HP | kW | A | μF | VC | A | Total head in meters | |||||||||||
| R128B-3 | R128B-3T | 0.67 | 0.5 | 3.4 | 20 | 450 | - | H(m) | 39 | 36 | 34 | 31 | 28 | 25 | 21 | 17 | 30mm G1 1/4" |
| R128B-4 | R128B-4T | 0.8 | 0.6 | 4.4 | 25 | 450 | 2.2 | 52 | 48 | 45 | 42 | 38 | 33 | 28 | 22 | ||
| R128B-5 | R128B-5T | 1 | 0.8 | 5.4 | 30 | 450 | 2.7 | 65 | 60 | 56 | 52 | 47 | 41 | 35 | 28 | ||
| R128B-6 | R128B-6T | 1.3 | 1 | 6.5 | 35 | 450 | 3.3 | 78 | 72 | 68 | 62 | 56 | 50 | 42 | 33 | ||
| R128B-7 | R128B-7T | 1.6 | 1.2 | 7.4 | 35 | 450 | 3.8 | 91 | 84 | 79 | 73 | 66 | 58 | 49 | 39 | ||
