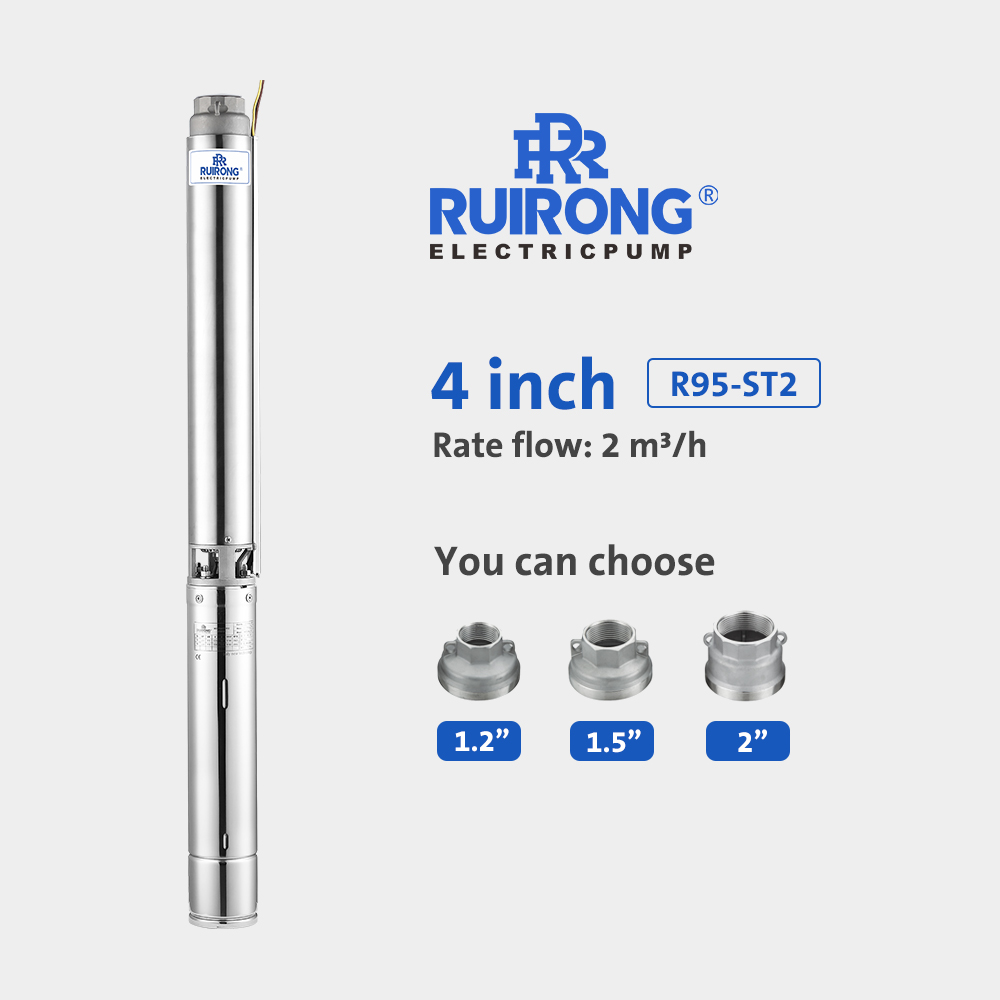

R95-ST2
RUIRONG
1. Utilize a robust stainless steel 304 pump tube with a thickness of 1.5mm, complemented by a stainless steel 304 diffuser and a durable stainless steel 304/316 pump head. This combination ensures high strength, aesthetic appeal, and long-lasting durability.
2. The innovative design of the multi-stage floating impeller significantly lowers the starting torque requirements and prevents blockages caused by small sand particles. This sand-resistant capability extends the motor's service life, offering enhanced performance and reliability.
Model 50Hz | Motor Power | Three Phase | Single Phase | Q | Capacity | ||||||||||
| US.gpm | 0 | 4 | 6.6 | 7.9 | 9.2 | 10.6 | 11.9 | 13.2 | |||||||
| m3/h | 0 | 0.9 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | |||||||
| 380V | 220V | L/min | 0 | 15 | 25 | 30 | 35 | 40 | 45 | 50 | |||||
| HP | kW | A | A | μF | VC | Total head in meters | |||||||||
| R95-ST2-05 | 0.5 | 0.37 | 1.8 | 3.6 | 20 | 450 | H (m) | 34 | 32 | 29 | 27 | 25 | 23 | 19 | 16 |
| R95-ST2-07 | 0.5 | 0.37 | 1.8 | 3.6 | 20 | 450 | 46 | 43 | 39 | 36 | 33 | 29 | 26 | 22 | |
| R95-ST2-10 | 0.75 | 0.55 | 2 | 4.8 | 25 | 450 | 67 | 64 | 58 | 54 | 49 | 43 | 36 | 28 | |
| R95-ST2-14 | 1 | 0.75 | 2.5 | 6.3 | 35 | 450 | 92 | 86 | 79 | 74 | 67 | 60 | 52 | 42 | |
| R95-ST2-20 | 1.5 | 1.1 | 3.4 | 8.6 | 45 | 450 | 139 | 131 | 120 | 111 | 101 | 90 | 75 | 60 | |
| R95-ST2-28 | 2 | 1.5 | 4.4 | 10 | 55 | 450 | 195 | 183 | 168 | 155 | 141 | 126 | 105 | 84 | |
| R95-ST2-40 | 3 | 2.2 | 6.2 | 14 | 70 | 450 | 278 | 262 | 240 | 222 | 202 | 180 | 150 | 120 | |
 | (Unit of Length: mm) | ||||||
| Model | H3 | H2 | H1 | ΦA | ΦB | Φmax | |
| R95-ST2-05 | 602 | 351 | 251 | G1 1/4" | 95 | 100 | |
| R95-ST2-07 | 637 | 351 | 286 | ||||
| R95-ST2-10 | 704 | 366 | 338 | ||||
| R95-ST2-14 | 795 | 386 | 409 | ||||
| R95-ST2-20 | 920 | 406 | 514 | ||||
| R95-ST2-28 | 1095 | 441 | 654 | ||||
| R95-ST2-40 | 1404 | 501 | 903 | ||||
| Parts | Material | ||||||
| Delivery door | AISI 304 | ||||||
| Suction support | AISI 304 | ||||||
| Check value | Plastic(POM) | ||||||
| Valve support | Plastic(PPO/PC) | ||||||
| Shaft support | Plastic(PPO/PC) | ||||||
| Impeller | Plastic(PPO) | ||||||
| Diffuser | AISI 304 | ||||||
| Valve seal | Nitrile rubber(NBR) | ||||||
| Anti-wear washer | Nitrile rubber(NBR) | ||||||
| Pump bearing | Nitrile rubber(NBR) | ||||||
| Pump body | AISI 304 | ||||||
| Cable cover | AISI 304 | ||||||
| Filter | AISI 304 | ||||||
| Shaft | 2Cr13 | ||||||
| Shaft coupling | AISI 304 | ||||||
| Bushing | AISI 304 | ||||||
