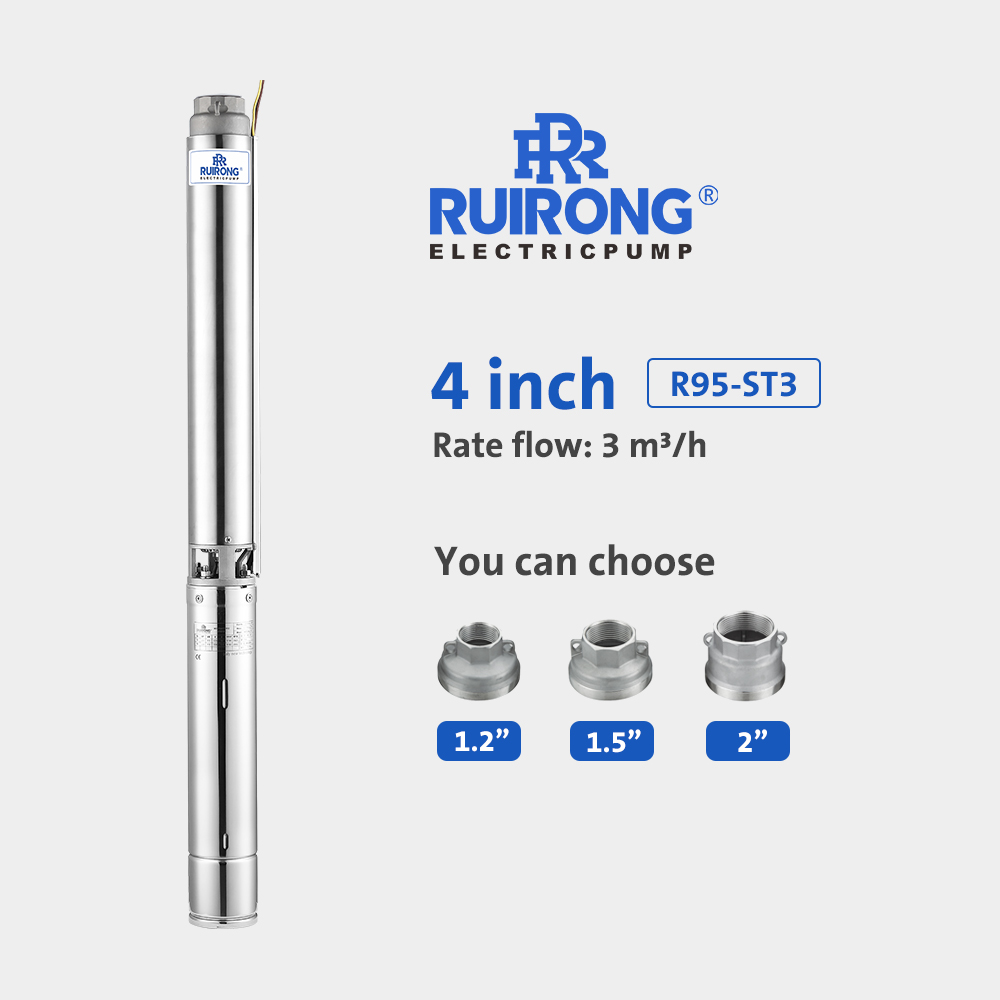

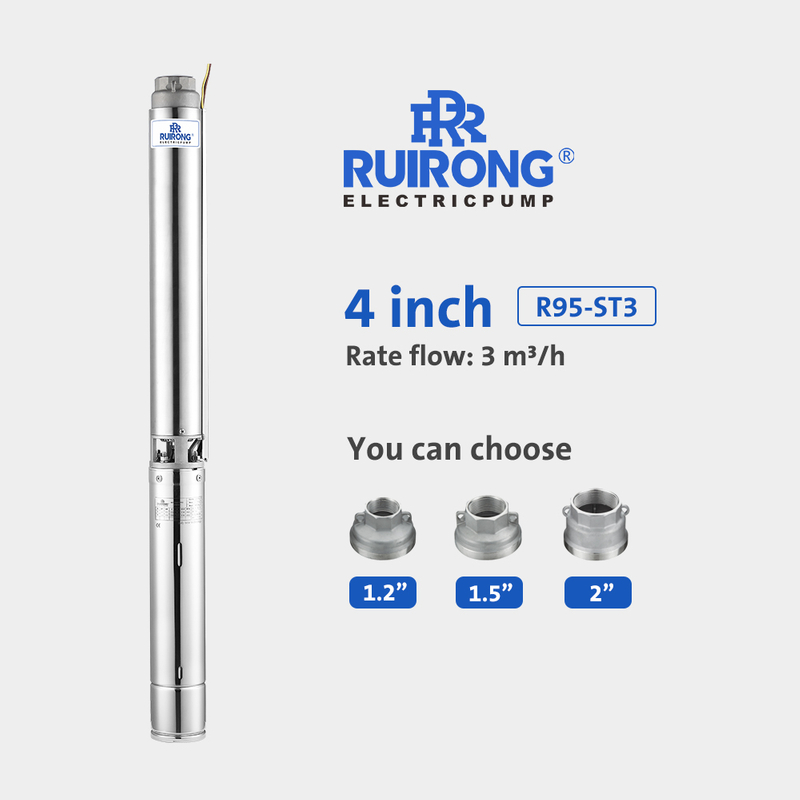

R95-ST3
RUIRONG
1. Utilize a robust stainless steel 304 pump tube with a thickness of 1.5mm, complemented by a stainless steel 304 diffuser and a durable stainless steel 304/316 pump head. This combination ensures high strength, aesthetic appeal, and long-lasting durability.
2. The innovative design of the multi-stage floating impeller significantly lowers the starting torque requirements and prevents blockages caused by small sand particles. This sand-resistant capability extends the motor's service life, offering enhanced performance and reliability.
Model 50Hz | Motor Power | Three Phase | Single Phase | Q | Capacity | ||||||||||
| US.gpm | 0 | 5.3 | 7.9 | 10.6 | 11.9 | 13.2 | 15.8 | 18.5 | |||||||
| m3/h | 0 | 1.2 | 1.8 | 2.4 | 2.7 | 3 | 3.6 | 4.2 | |||||||
| 380V | 220V | L/min | 0 | 20 | 30 | 40 | 45 | 50 | 60 | 70 | |||||
| HP | kW | A | A | μF | VC | Total head in meters | |||||||||
| R95-ST3-05 | 0.5 | 0.37 | 1.8 | 3.6 | 20 | 450 | H (m) | 34 | 32 | 30 | 27 | 25 | 23 | 16 | 11 |
| R95-ST3-08 | 0.75 | 0.55 | 2 | 4.8 | 25 | 450 | 54 | 51 | 49 | 43 | 41 | 38 | 30 | 19 | |
| R95-ST3-11 | 1 | 0.75 | 2.5 | 6.3 | 35 | 450 | 72 | 68 | 64 | 58 | 54 | 49 | 38 | 26 | |
| R95-ST3-16 | 1.5 | 1.1 | 3.4 | 8.6 | 45 | 450 | 106 | 101 | 95 | 83 | 77 | 70 | 54 | 33 | |
| R95-ST3-21 | 2 | 1.5 | 4.4 | 10 | 55 | 450 | 142 | 135 | 127 | 115 | 109 | 100 | 79 | 49 | |
| R95-ST3-32 | 3 | 2.2 | 6.2 | 14 | 70 | 450 | 208 | 200 | 187 | 165 | 152 | 138 | 104 | 62 | |
| R95-ST3-42 | 4 | 3 | 8.3 | 19.5 | 80 | 450 | 273 | 263 | 245 | 217 | 200 | 181 | 137 | 81 | |
 | (Unit of Length: mm) | ||||||
| Model | H3 | H2 | H1 | ΦA | ΦB | Φmax | |
| R95-ST3-05 | 602 | 351 | 251 | G1 1/4" | 95 | 100 | |
| R95-ST3-08 | 669 | 366 | 303 | ||||
| R95-ST3-11 | 742 | 386 | 356 | ||||
| R95-ST3-16 | 850 | 406 | 444 | ||||
| R95-ST3-21 | 972 | 441 | 531 | ||||
| R95-ST3-32 | 1226 | 501 | 725 | ||||
| R95-ST3-42 | 1462 | 561 | 901 | ||||
| Parts | Material | ||||||
| Delivery door | AISI304 | ||||||
| Suction support | AISI304 | ||||||
| Check value | Plastic(POM) | ||||||
| Valve support | Plastic(PPO/PC) | ||||||
| Shaft support | Plastic(PPO/PC) | ||||||
| Impeller | Plastic(PPO) | ||||||
| Diffuser | AISI304 | ||||||
| Valve seal | Nitrile rubber(NBR) | ||||||
| Anti-wear washer | Nitrile rubber(NBR) | ||||||
| Pump bearing | Nitrile rubber(NBR) | ||||||
| Pump body | AISI 304 | ||||||
| Cable cover | AISI 304 | ||||||
| Filter | AISI 304 | ||||||
| Shaft | 2Cr13 | ||||||
| Shaft coupling | AISI 304 | ||||||
| Bushing | AISI 304 | ||||||
