Installing a deep well pump system can seem daunting, but with the right knowledge and preparation, wiring your deep well water pump becomes a manageable DIY project. Whether you're replacing an old pump or installing a new one, understanding the electrical connections is crucial for safe and efficient operation.
This guide walks you through everything you need to know about wiring a deep well pump, from safety precautions to step-by-step installation instructions. You'll learn about the components involved, common wiring configurations, and troubleshooting tips to keep your water flowing reliably.
Before we dive into the technical details, it's important to note that electrical work involving water pumps requires careful attention to safety protocols. If you're not comfortable working with electrical systems, consider hiring a licensed electrician to ensure your installation meets local codes and safety standards.

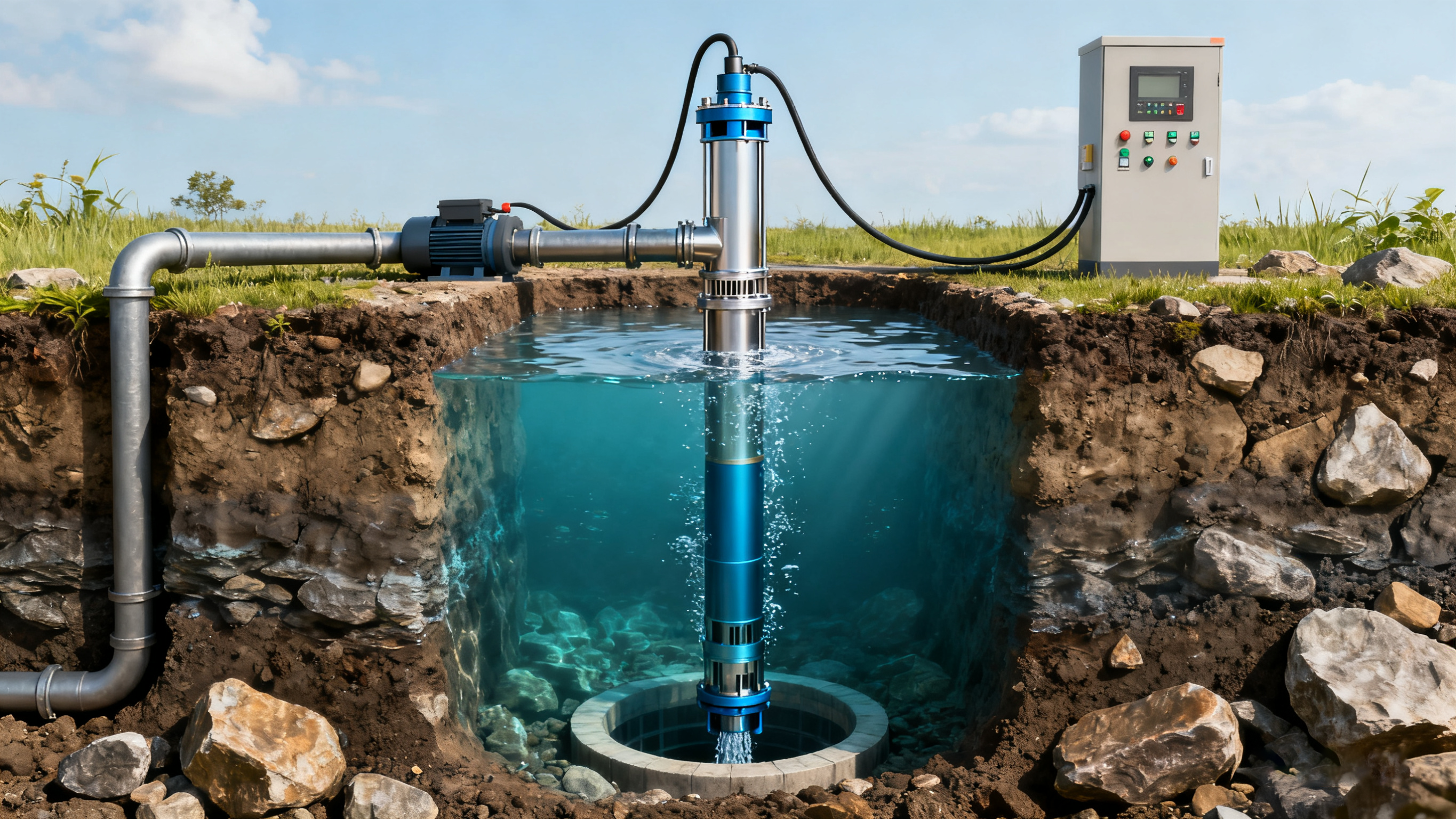

A deep well water pump system consists of several key components that work together to deliver water from underground sources to your home. The submersible pump sits deep in your well, while the control box and pressure switch remain at ground level.
The pump motor typically operates on 240 volts and requires a dedicated circuit breaker. Most residential deep well pumps use either single-phase or three-phase power, with single-phase being more common for home installations. The control box houses the capacitors and relay switches that help start and run the motor efficiently.
Understanding these components helps you identify the correct wiring approach for your specific pump model. Each manufacturer may have slightly different wiring diagrams, so always consult your pump's manual before beginning the installation process.
Proper preparation makes the wiring process smoother and safer. Gather these essential tools before starting your deep well pump installation:
Electrical Tools:
· Wire strippers and electrical pliers
· Multimeter for testing voltage
· Screwdrivers (flathead and Phillips)
· Wire nuts and electrical tape
· Waterproof electrical connectors
Safety Equipment:
· Rubber gloves rated for electrical work
· Safety glasses
· Non-contact voltage tester
Materials:
· Appropriate gauge wire (typically 12 or 10 AWG)
· Conduit and fittings
· Circuit breaker for your electrical panel
· Pressure switch (if not included)
Check your local electrical codes to ensure you're using the correct wire gauge and conduit requirements. Some areas require specific types of conduit for underground installations.
Electrical work around water systems requires extra caution. Always turn off power at the main breaker before starting any wiring work. Use a non-contact voltage tester to verify that power is completely disconnected from all circuits you'll be working on.
Never work on electrical connections in wet conditions or with wet hands. Ensure all connections are properly sealed against moisture, as water and electricity create dangerous situations. If you're working in a well house or basement, make sure the area is well-lit and dry.
Consider the depth of your well when planning wire runs. Deep wells may require special considerations for voltage drop over long distances. Consult your pump manufacturer's specifications for maximum wire run distances.
Start by installing a dedicated circuit breaker in your electrical panel. Most deep well pumps require a 30-amp breaker, but check your pump specifications to confirm the correct amperage. Run electrical cable from the panel to your pump control location, following local code requirements for conduit and burial depth.
Mount your pump control box in a dry, accessible location near the well head. The control box should be at least 10 feet away from the well casing to prevent electrical interference. Install the box on a sturdy surface and ensure it's protected from weather and physical damage.
Connect the incoming power lines to the control box according to the manufacturer's wiring diagram. Typically, this involves connecting the hot wires to designated terminals and the ground wire to the grounding lug.
The pump motor connections depend on whether you have a two-wire or three-wire pump system. Two-wire pumps have built-in starting components, while three-wire pumps require external starting equipment in the control box.
For three-wire pumps, connect the motor leads to the corresponding terminals in the control box. The yellow wire typically connects to the start winding, red to the run winding, and black to the common terminal. Always verify these connections with your specific pump's wiring diagram.
Wire the pressure switch to control when your pump starts and stops based on water pressure. Connect the switch between the control box and your home's electrical panel. Most pressure switches have clear terminal markings for line and load connections.
Set the pressure switch according to your system requirements, typically between 20-40 PSI or 30-50 PSI. The switch should turn the pump on when pressure drops and off when adequate pressure is restored.
After completing all connections, carefully inspect your work before restoring power. Check that all wire nuts are tight, connections are secure, and no bare wires are exposed. Verify that the ground wire is properly connected throughout the system.
Turn on the circuit breaker and test the system operation. The pump should start when you open a faucet and create demand for water. Monitor the pressure switch operation to ensure it cycles properly.
Use a multimeter to verify proper voltage at the pump motor terminals. The voltage should match your pump's requirements, typically around 240 volts for residential installations.
If your pump doesn't start, check the pressure switch settings first. A switch set too high may prevent the pump from starting. Verify that all electrical connections are secure and that the control box components are functioning properly.
Low water pressure can indicate wiring problems, worn pump components, or issues with the pressure tank. Check voltage at the motor terminals under load to ensure adequate power delivery.
If the pump runs continuously, the pressure switch may not be shutting off properly, or there could be a leak in the system preventing pressure buildup.
Wiring a deep well water pump requires attention to detail and respect for electrical safety. While this guide provides comprehensive information, every installation is unique. When in doubt, consult with a licensed electrician or well contractor who can ensure your system meets all local codes and operates safely.
Regular maintenance of your electrical connections helps prevent problems and extends pump life. Schedule annual inspections to check for loose connections, corrosion, or worn components.
